Insulator

The pantograph is mounted on supporting insulators. The supporting insulators

provide the electrical insulation between the live pantograph and the roof of the

vehicle.

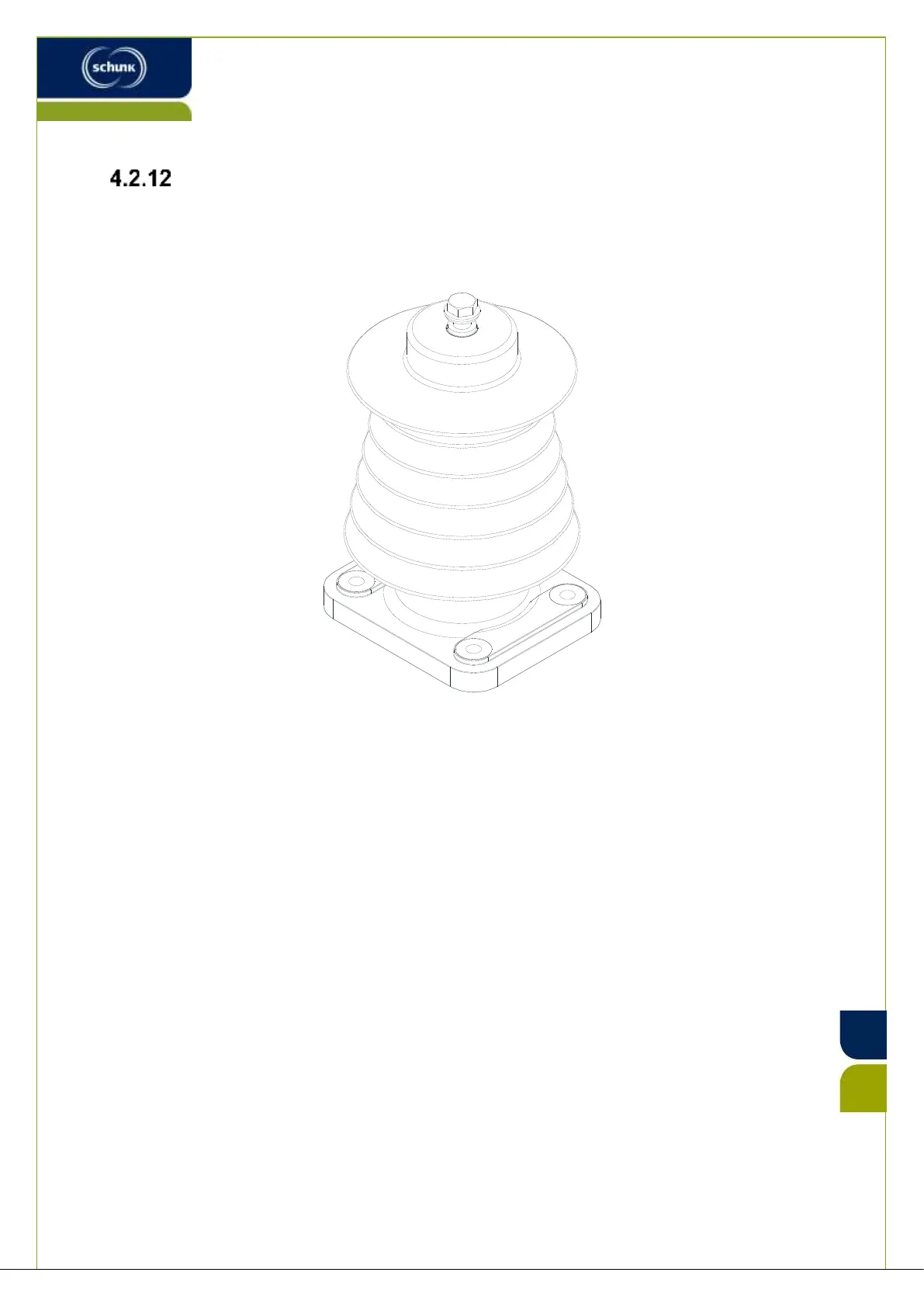

SB-038777_RS_Blatt1
