SCHUNK WBL 22.03 - Adjustment of Support Springs

Schunk Bahn- und Industrietechnik GmbH
Adjustment Procedures
SB-038483-EN.docx
92 / 147
Datum: 13.02.2018
SAP.Nr.10901359
Index: -
Adjustment of Support Springs

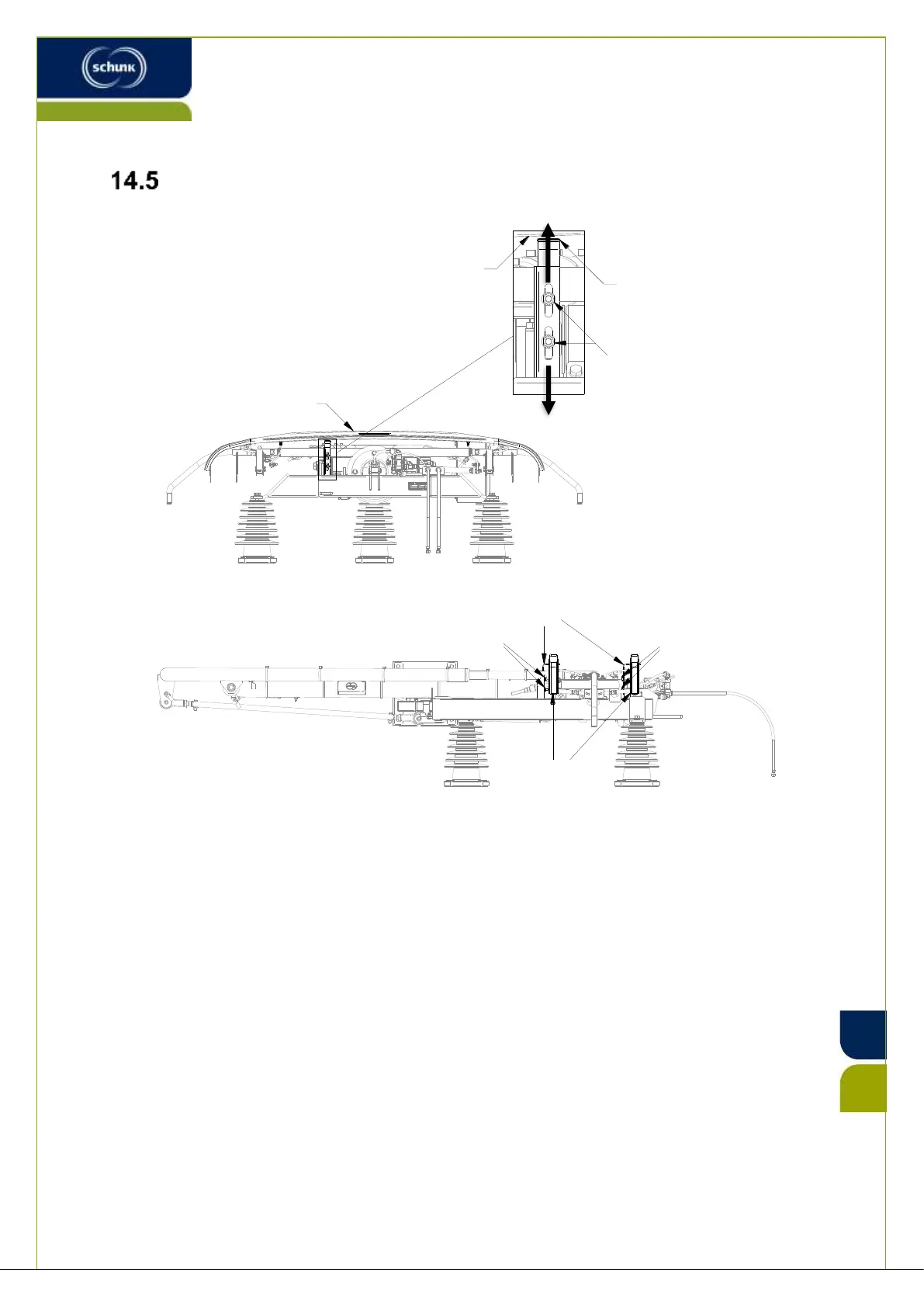

Illustration 40: EXAMPLE: Adjust support springs
Procedure:
1. Loosen screw connection (2).
2. Adjust support springs (1) by sliding:
Both sliding strips (3) must rest on support springs (1) horizontal and at same
height.
3. Fix screw connection (2).
4. Checkup of resting position ( Chapter #14.3). 
