SCHUNK WBL 22.03 - Parallel Guide Bar; Illustration 28: Replace Rod End

Schunk Bahn- und Industrietechnik GmbH
Maintenance
SB-038483-EN.docx
71 / 147
Datum: 13.02.2018
SAP.Nr.10901359
Index: -
Parallel Guide Bar
Rod End

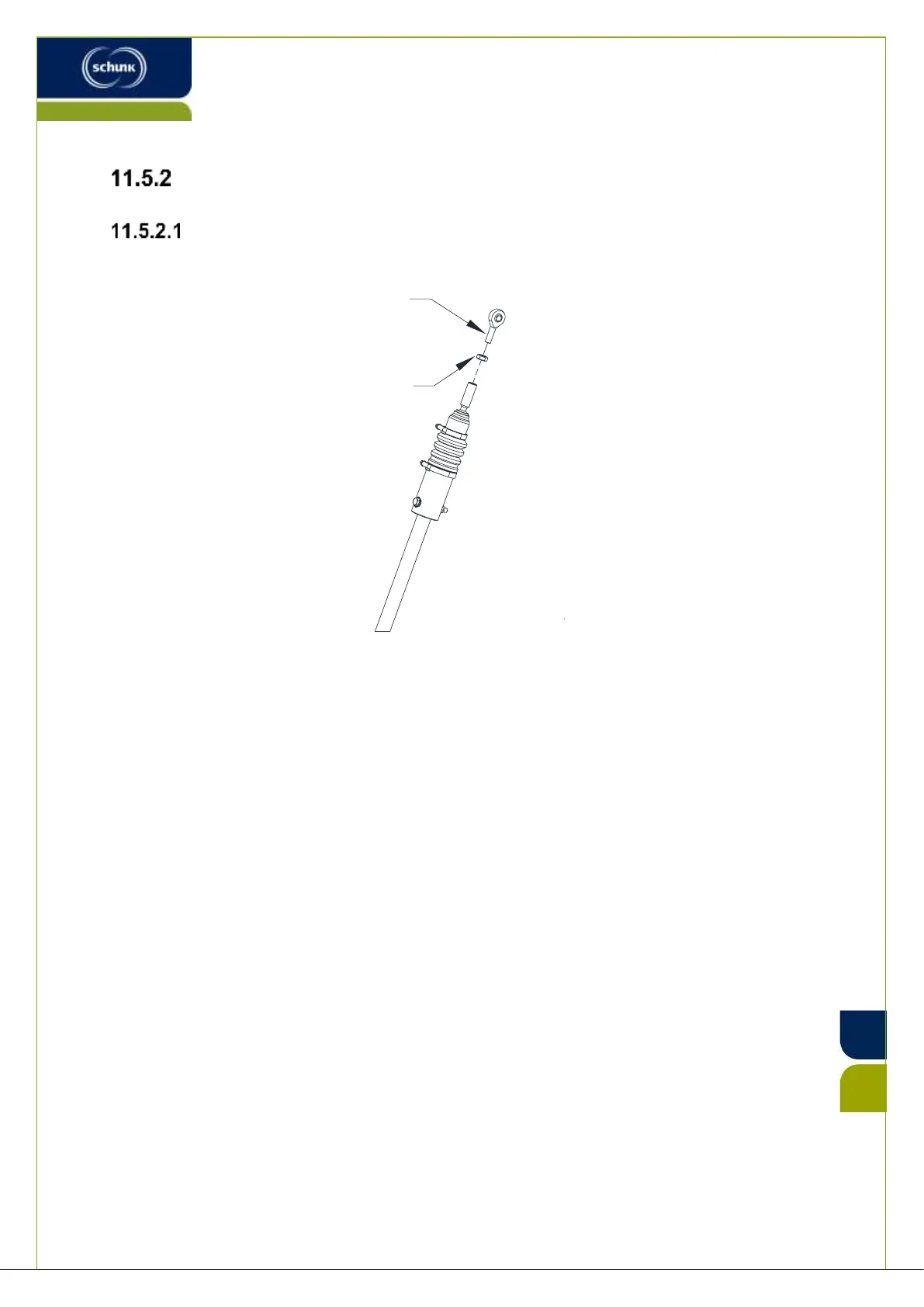

Illustration 28: Replace rod end
Detachment:
1. Loosen check nut (2).
2. Screw-out rod end (1). 
Attachment:
1. Grease rod end and check nut (2) ( Chapter #11.3.3).
2. Place check nut (2) to rod end (1).
3. Screw-in rod end (1).
4. Fix check nut (2).
5. Adjust length of parallel guide ( Chapter #14.12) 
SB-035907_RS.idw - Blatt 1 - Rev. -
2
1
