Upper Frame
The upper frame is a welded structure made of steel tubes. The component is coated
for protection of environmental influences.

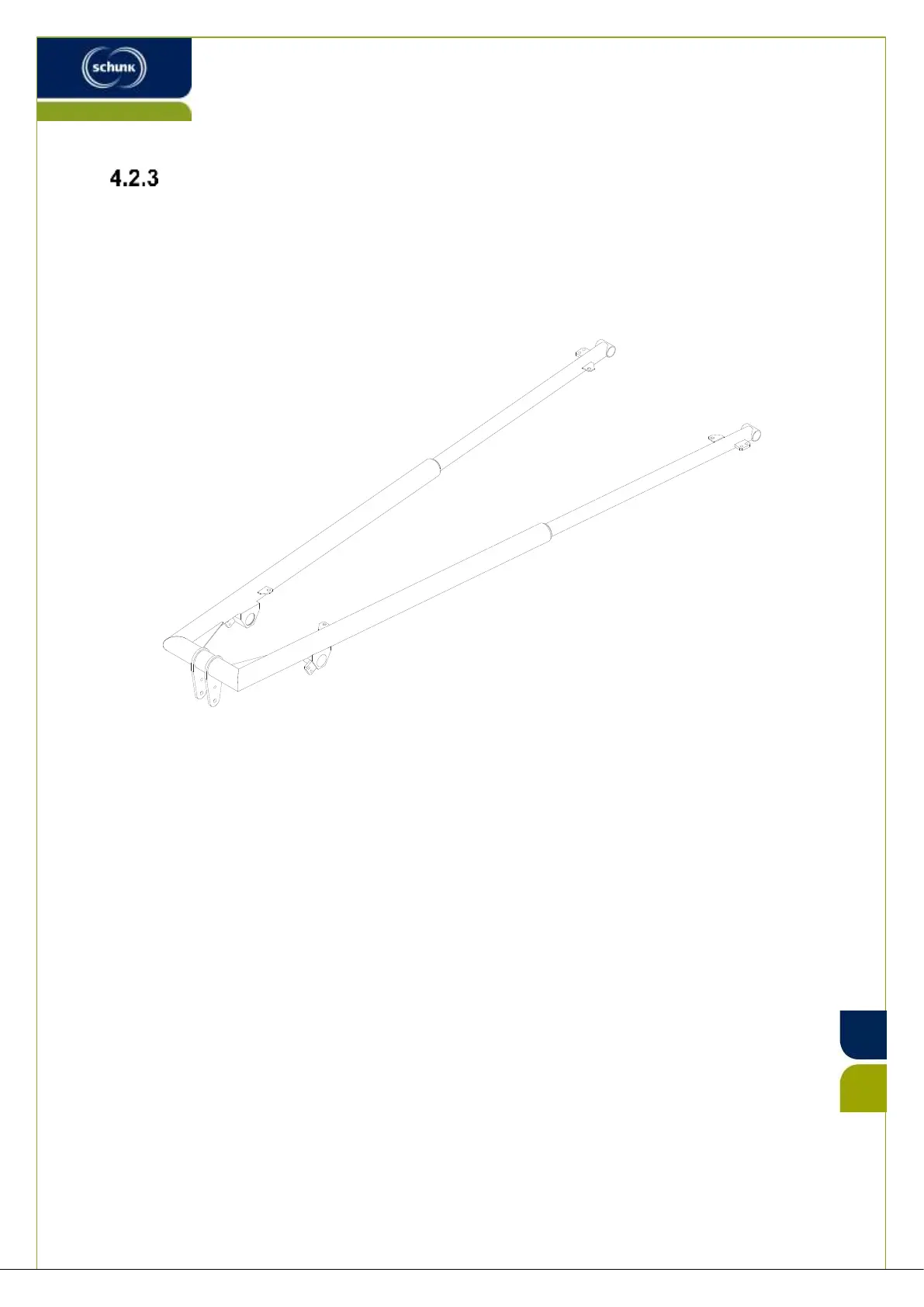

Illustration 4: Upper frame
All components of the Upper Frame are listed in the Spare Parts – List
( Chapter #17.2.3).
