ADD Deactivated
The valve unit ADD is in ACTIVATED state when the pantograph is delivered.
Therefore, monitoring of the sliding strips is enabled.
Activate ADD ( Chapter #4.2.5.1).
A T T E N T I O N
ADD ACTIVATED when performing leaking test.
ADD responds, pantograph lowers
DEACTIVATE ADD when performing leaking test.

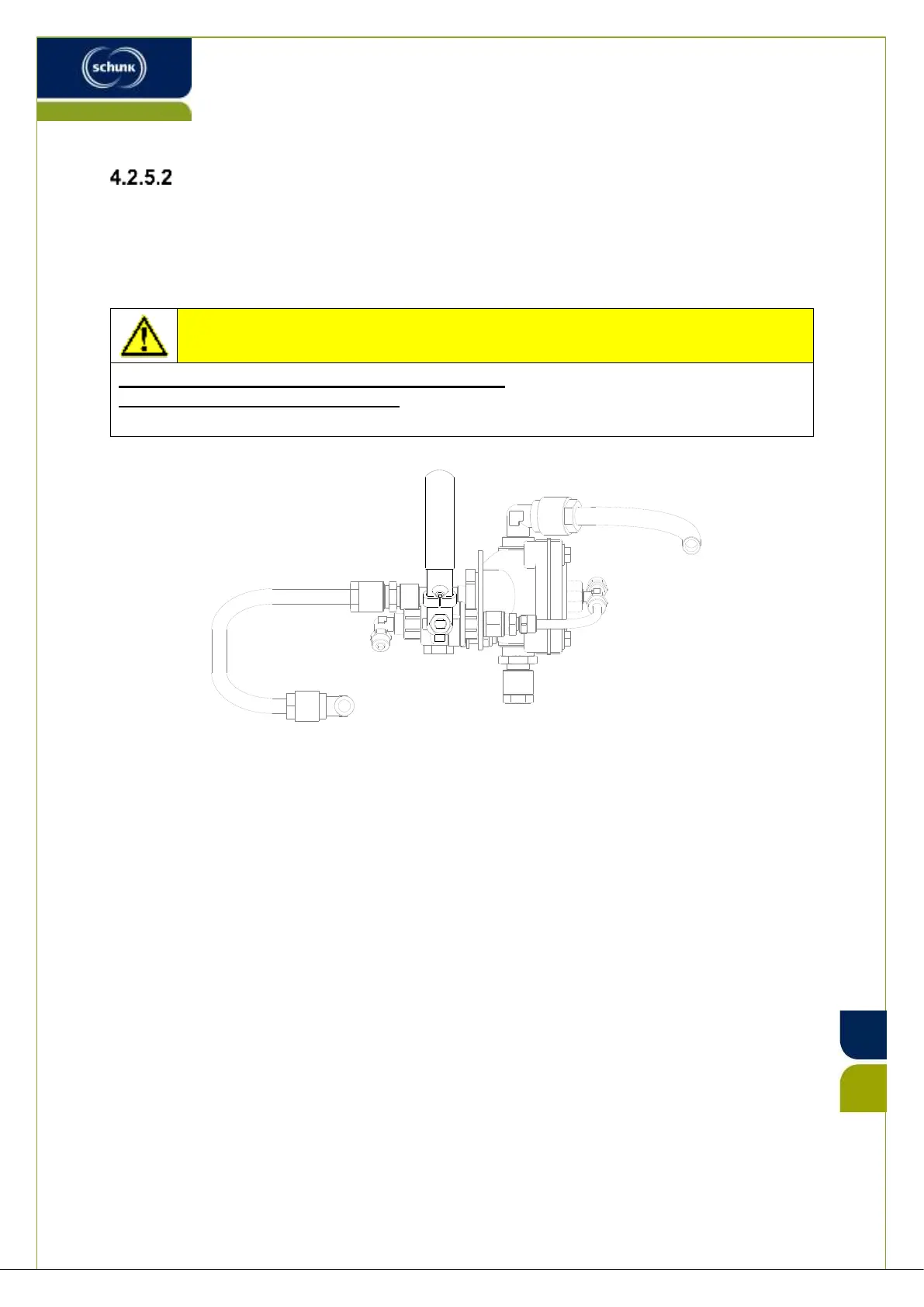

Illustration 8: Lock cock closed - ADD DEACTIVATED
If the lock cock is in position CLOSED, ADD is DEACTIVATED.
