Shimadzu GC-2014 Operation Manual

103
4.11 FID
4

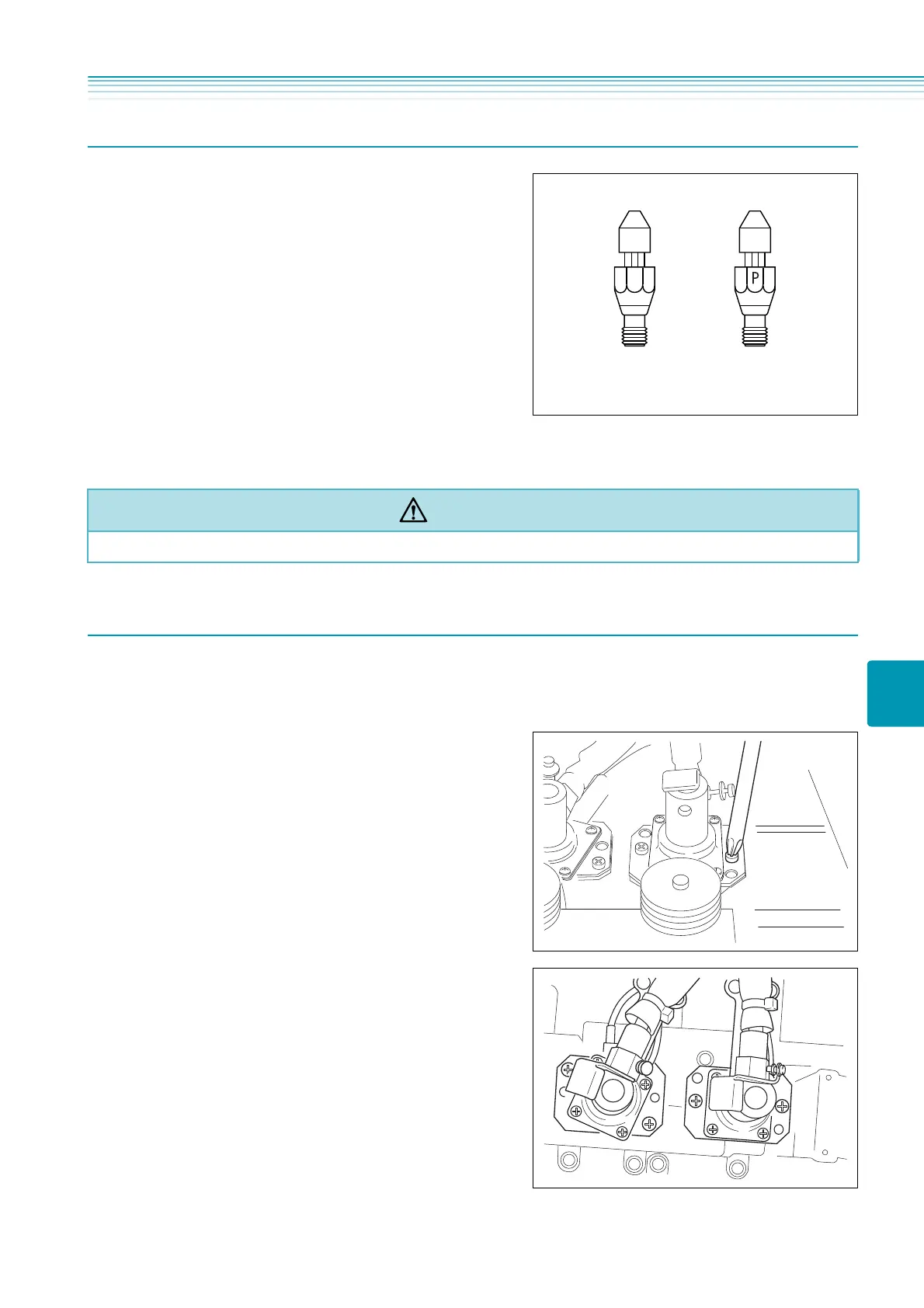

 FID jet
The following describes inspection/maintenance for the FID jet.
 Purpose of inspection
• Check if jet is not clogged.
If the jet tip is clogged, it may cause ignition
malfunction, or you may not even obtain peaks.
Clean it by inserting a thin, long stick.
• Check whether jet is dirty
If jet is dirty, it can cause significant noise.
Clean the jet with a cotton swab soaked in organic
solvent (e.g. acetone).
• Check whether the jet is damaged
If the jet is damaged, it may cause abnormal peak
shape.
In that case, replace the jet.
 Removing FID parts
Using the following procedures, remove the FID parts until you can access the part to be inspected.
 Removing igniter and FID collector
1
Remove 2 screws using Phillips screwdriver.
If using the dual FID, the screw position varies
depending on FIDs.
When installing, be careful not to place the screws in
the wrong holes.
Jet
Capillary Standard
The standard jet is marked with “P”.
CAUTION
Handle the FID jet gently. The quartz in the jet breaks easily.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
