Shimadzu GC-2014 Operation Manual

21
3.1 Screen operation
3

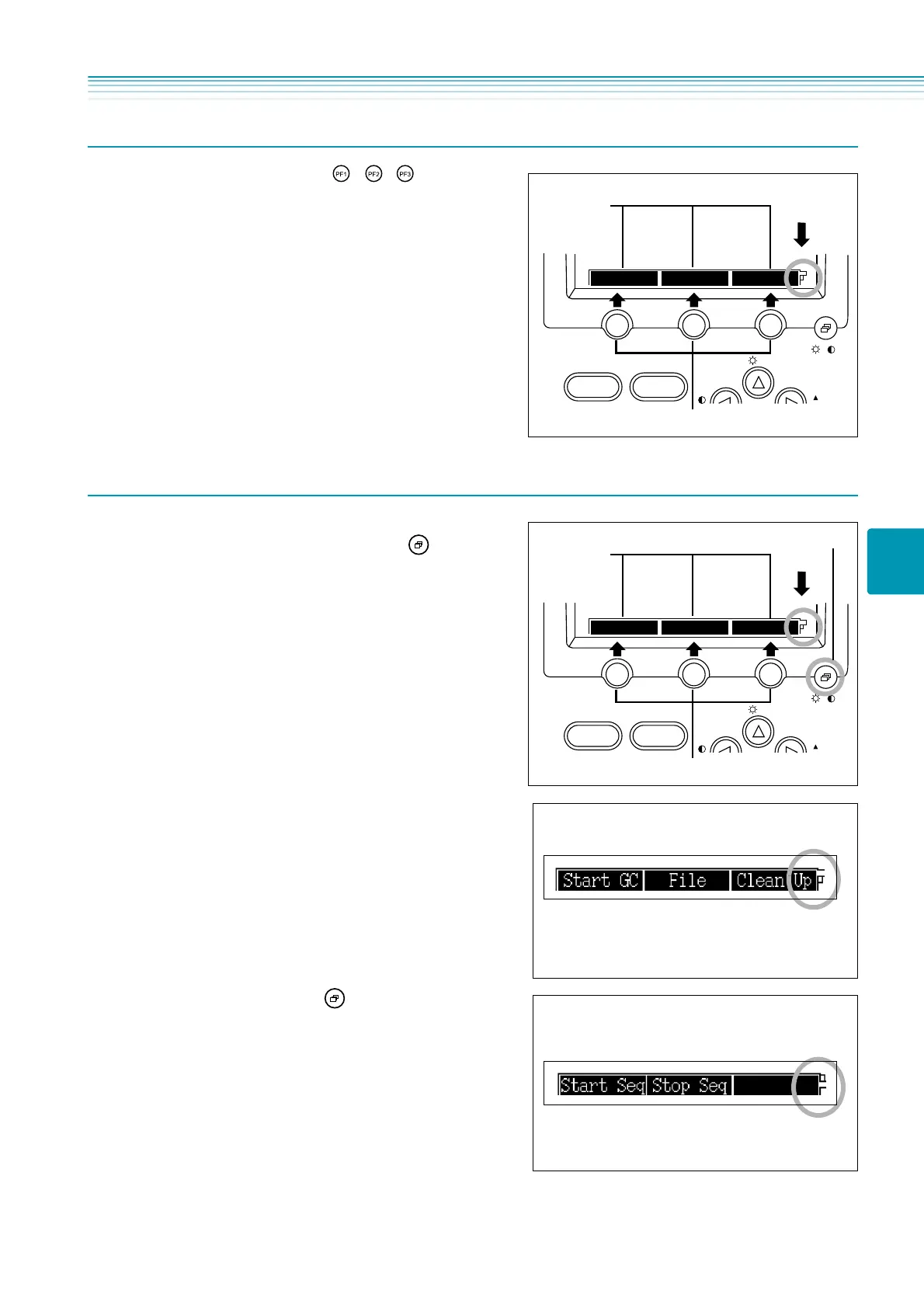

 Displaying sub screen
1
Press one of PF keys ( , , )
corresponding to the PF menus.
The respective main screen appears.
When there are multiple pages in which to display PF
menus, tabs will appear on the right of the PF menus.
 Switching PF menus
When there are 4 PF menus or more, you can display the
hidden PF menus by pressing the toggle key ( ).
This symbol indicates that PF menus on the 1st page are
displayed.
1
Press the toggle key ( ).
The PF menus on the 2nd page are displayed.
PF1 PF2 PF3
MONIT SET
ON
File LineConfg Customiz
PF menus
PF keys
PF1 PF2 PF3
MONIT SET
ON
File LineConfg Customiz
PF menus
PF keys
Toggle key

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
