Shimadzu GC-2014 Operation Manual

3
1.2 Names of components
1
1.2 Names of components

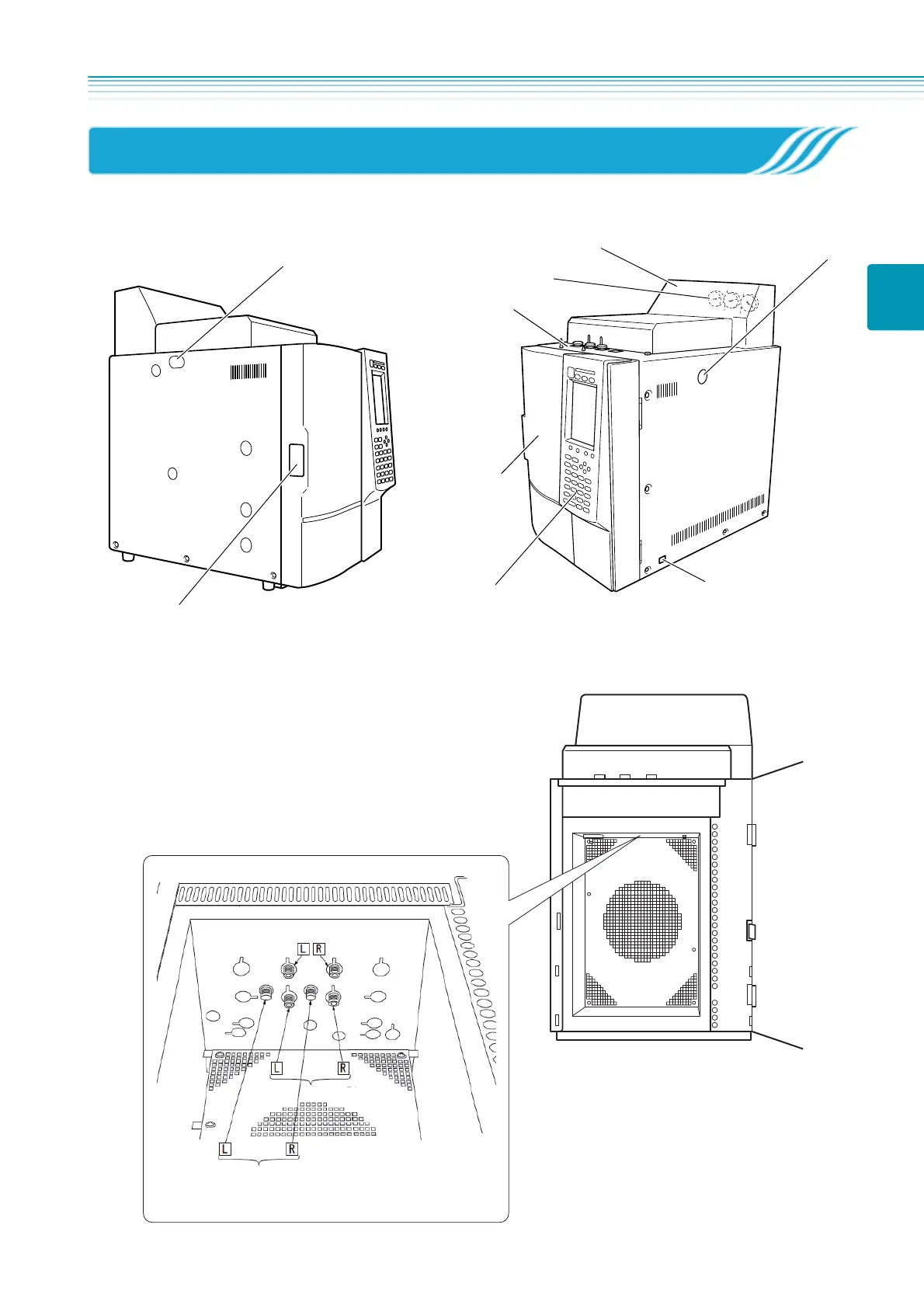

 Overall view
 Oven interior (Packed column mounting ports)
INJ/DET cover
Flow controller
Flow controller cover
Power switch
Column oven
door
Operation panel
TCD zero-coarse-adjustment
control (TCD model only)
Oven door lever
TCD vent
(TCD model only)
Example of the GC-2014ATF model
Dual INJ
TCD
Dual FID

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
