Shimadzu GC-2014 Operation Manual

41
3.2 Analysis using packed column
3
 Setting for analysis
1

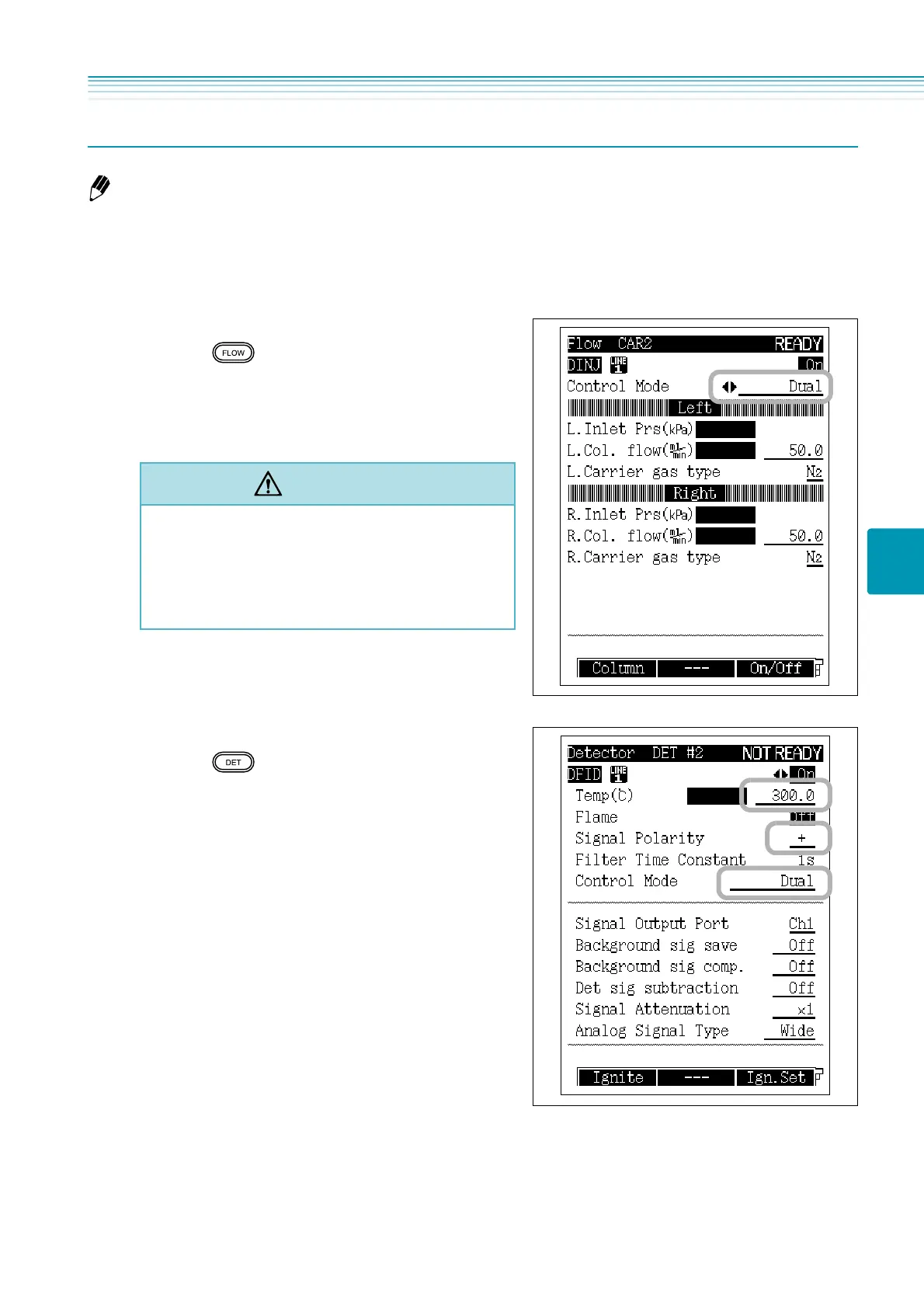

Specify the dual AFC setting.
(1) Press .
(2) Select "Dual" on "Control mode".
(3) Specify the flow rate of left and right of AFC
respectively.
2
Specify the detectors.
(1) Press .
(2) Select "Dual" on "Control mode".
(3) Specify "Signal polarity" according to the position
of the FID to be used in analysis (left: +, right: ).
(4) Specify the temperature.
NOTE
In the description of this section, you specify the injection port as dual packed INJ mode, and the detector as dual FID
mode. If you use the GC as single INJ/single FID, change the corresponding part of the setting.
If the computer is connected, specify the following on the computer.
CAUTION
If you have connected columns to both flow lines of
the dual packed INJ, ALWAYS select "Dual" and
specify the flow rate of both lines. If "Single" is
selected, since carrier gas flows only in one column,
it may deteriorate the other column when you raise
the oven temperature.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
