Shimadzu GC-2014 Operation Manual

3.3 Analysis using capillary column
56
7

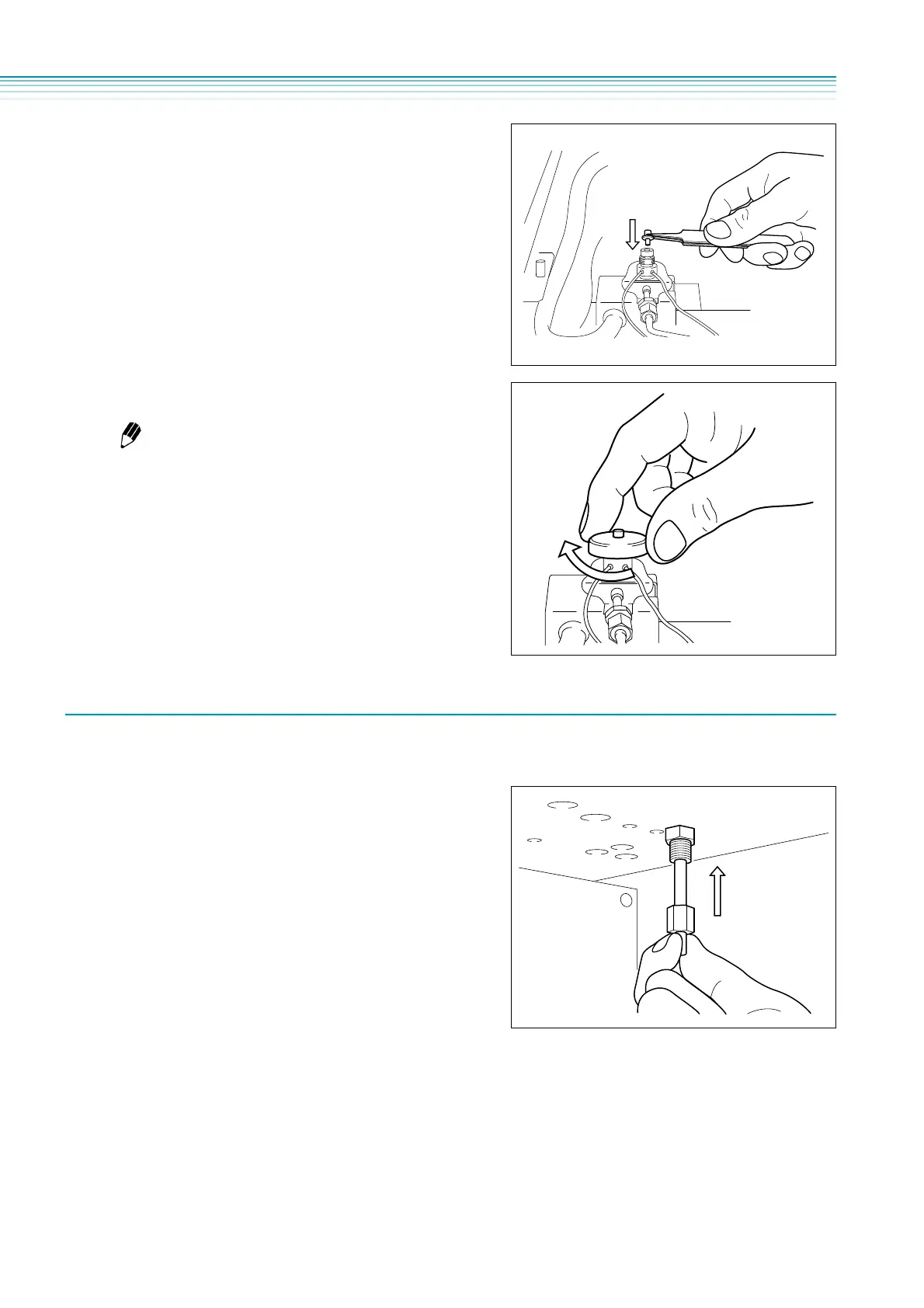

Install needle guide.
Hold the needle guide with tweezers.
8
Install septum nut.
 Installing adaptor

In the case of GC-2014AFsc
1
Install adaptor to detector.
(1) Verify that the Detector side adaptor (P/N:S221-
33193-91) is installed to FID.
If it is not, install by the following.
(2) Insert the axis of the Detector side adaptor into
the detector.
(3) Place washer and nut over the adaptor, and
tighten the nut by hand.
(4) Fix the nut by tightening with wrench one half
turn.
NOTE
Tighten the septum nut as far as possible by hand, and
loosen one half turn.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
