Shimadzu GC-2014 Operation Manual

3.2 Analysis using packed column
40
6
Stop the GC.
(1) Press .
(2) Press [Stop GC] (PF1 key).
(3) Re-set "Start time" to the original value.
7
Turn off the GC power.
 External device setup
1
Specifying data processing devices.
(1) Verify that a personal computer or a chromatopac
is connected to the GC.
The computer is connected to the RS-232C
connector on the back of the instrument.
The chromatopac is connected to the detector
signal output terminal with the chromatopac
cable.
(2) As for the parameter setting (e.g. Peak
integration parameter), refer to the instruction
manual for each device.
For the setting of optional devices, such as the Auto-
injector AOC-20i, the Auto-sampler AOC-20s, etc.,
refer to "3.4 AOC (optional) setting" P.75.

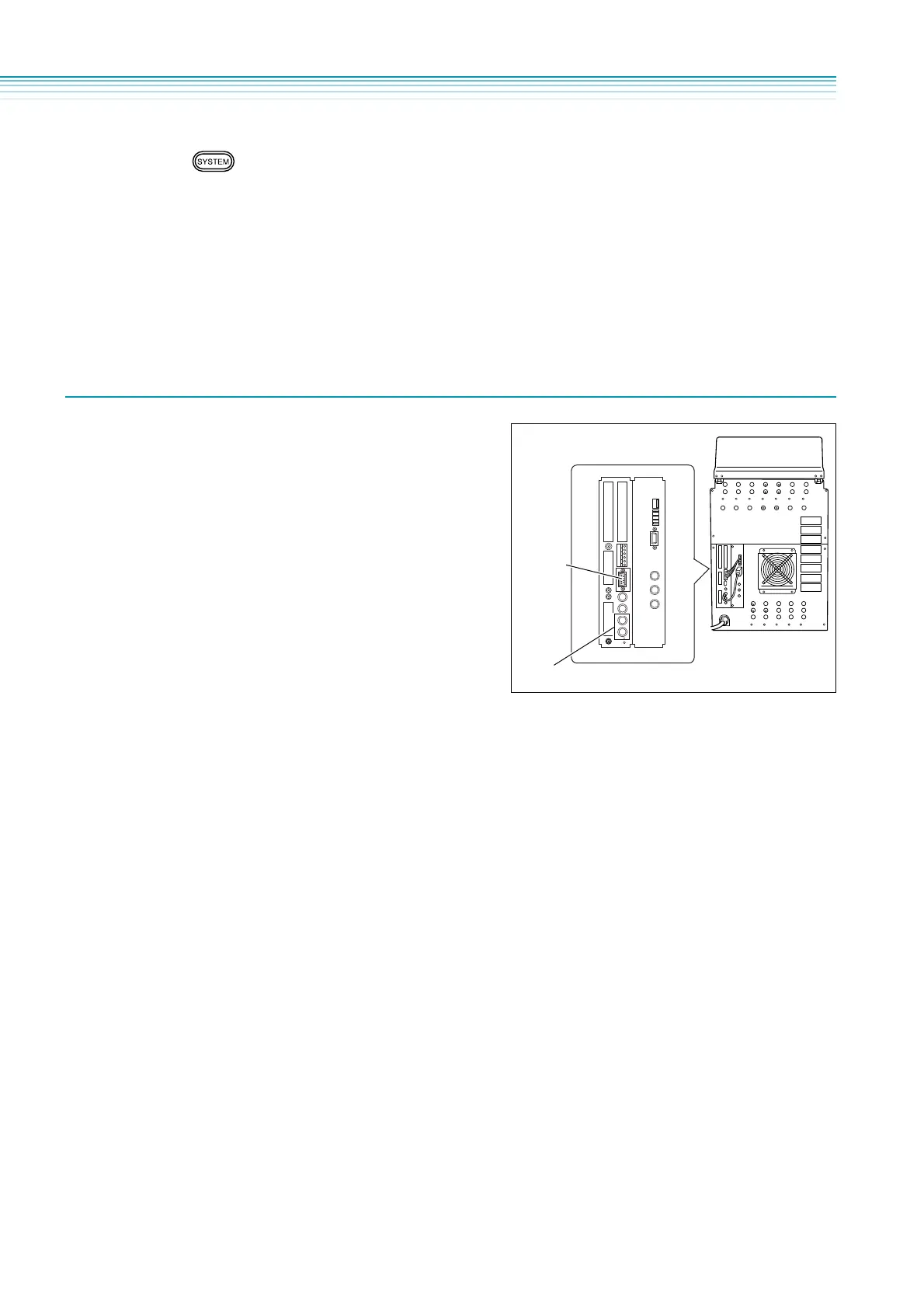

RS-232C
connector
Detector signal output terminal

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
