Shimadzu GC-2014 Operation Manual

39
3.2 Analysis using packed column
3
4

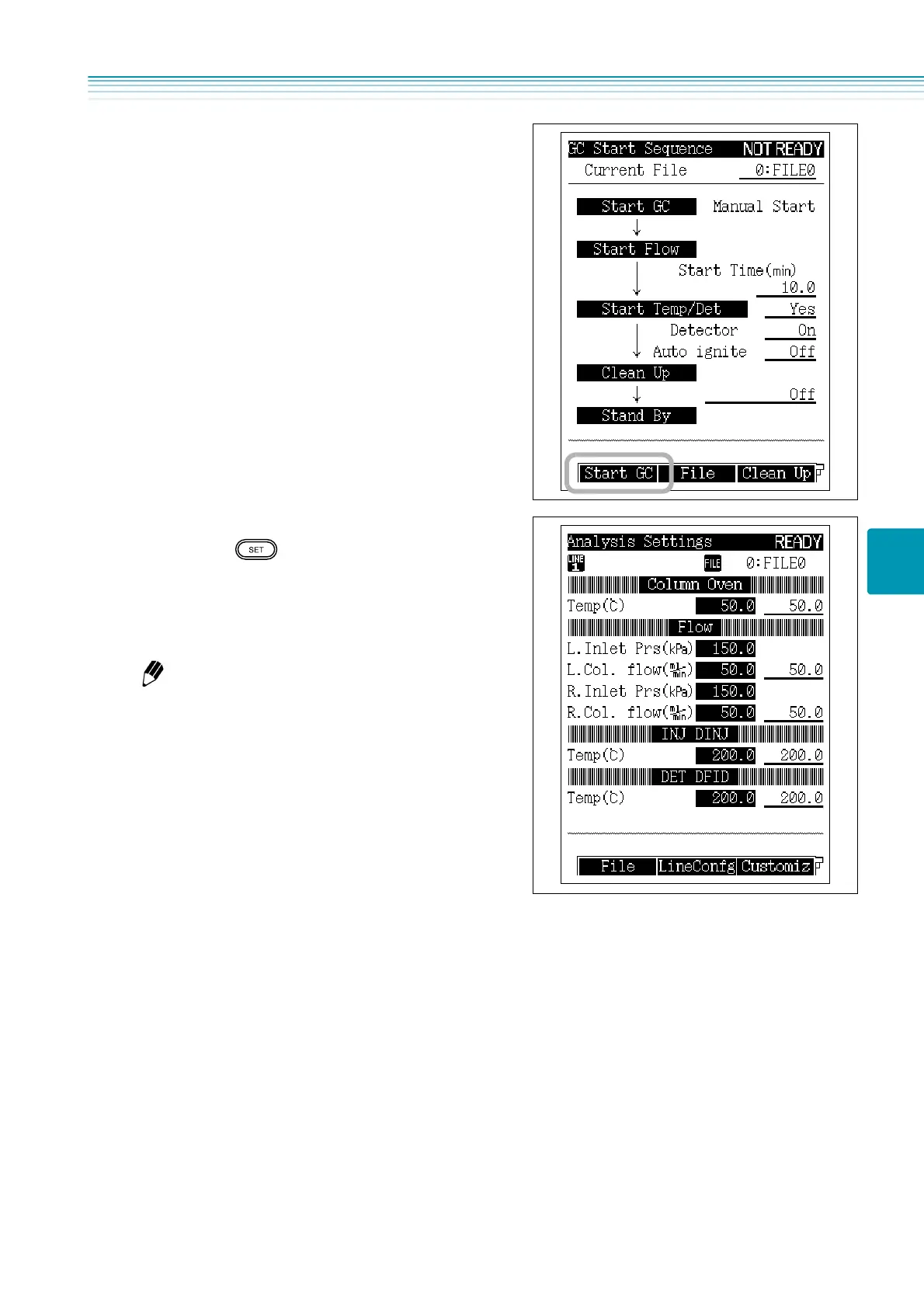

Start the GC.
Press [Start GC] (PF1 key).
After the unit starts, the carrier gas starts to flow.
5
Check if there is leakage at connections.
(1) Pressing , verify the carrier gas is flowing
at your specified values.
(2) Check for the leakage by applying leak-detecting
fluid to the connections, or other methods.
 If you found leakage…
If you found leakage at the sections described above,
follow the next instruction. After that, perform the leak
check again.
• Septum inlet: Replace the septum.
• Around injection port:
Retighten the column adaptor, or
replace it.
• Column connections:
Replace the graphite ferrule or
the column nut.
NOTE
To determine where the gas is leaking, use a leak
detector.
Check the following sections.
•Septum inlet
• Around injection port
• Column connections

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
