Shimadzu GC-2014 Operation Manual

27

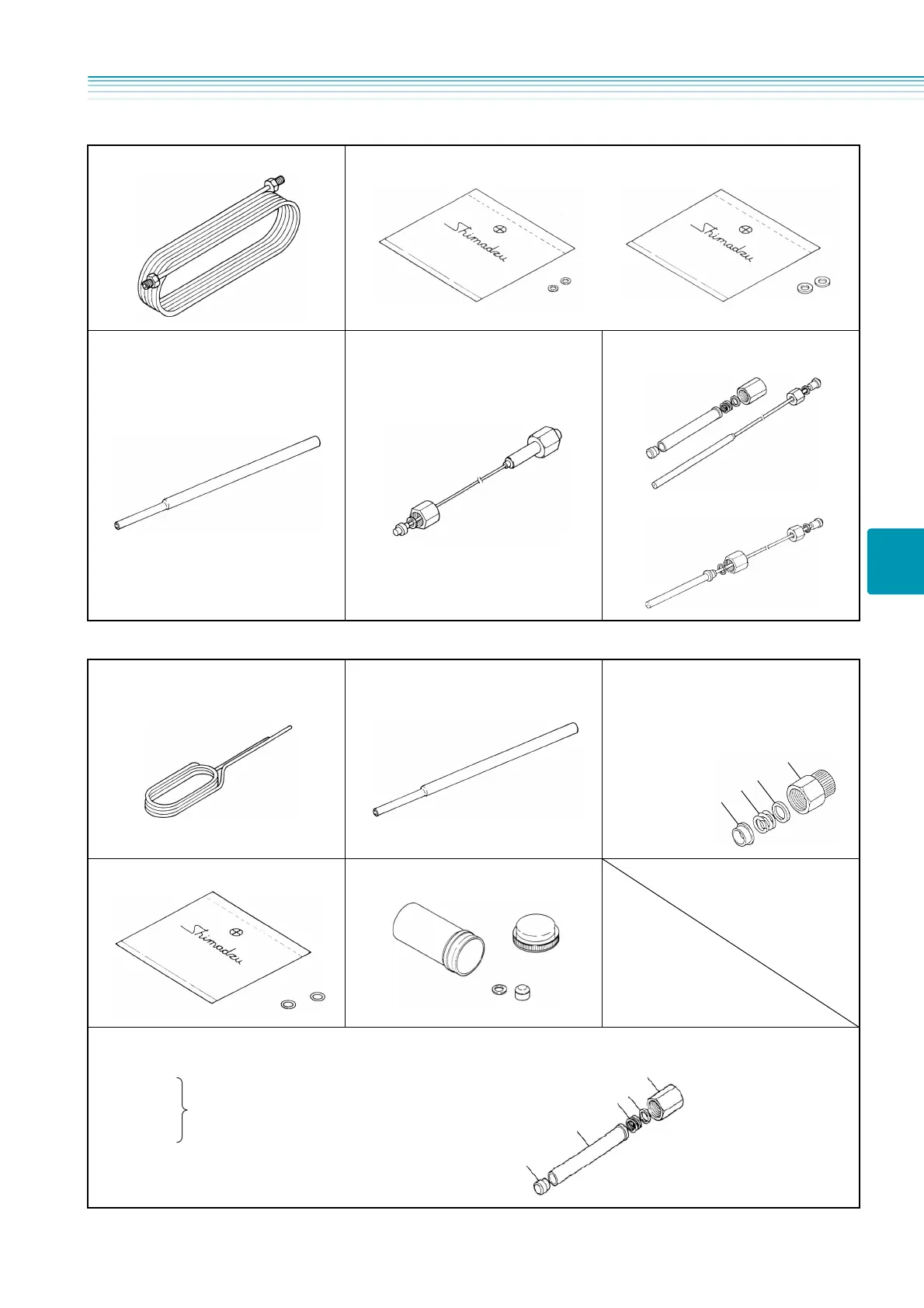

3.2 Analysis using packed column
3
 If using SUS packed column
 If using glass packed column
SUS packed columns* Aluminum gaskets or silicon rubber gaskets
Glass insert (3.2 mm) SUS column adaptor INJ side SUS column adaptor DET side
(For TCD)
(For other detectors)
Glass packed column* Glass insert (for insert method)
(*2.6 mm type optional.)
Glass column joint
1. Back ring
2. Spring
3. Washer
4. Nut
Silicon O-ring Graphite ferrule*
For TCD, prepare the following for the back ring and the graphite ferrule on the detector end.
1. Graphite ferrule for TCD
2. Sleeve
3. Spring
4. Washer
5. Nut
4
3
2
1
5
4
3
2
1
Column connection parts for TCD

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
