Shimadzu GC-2014 Operation Manual

33
3.2 Analysis using packed column
3
3

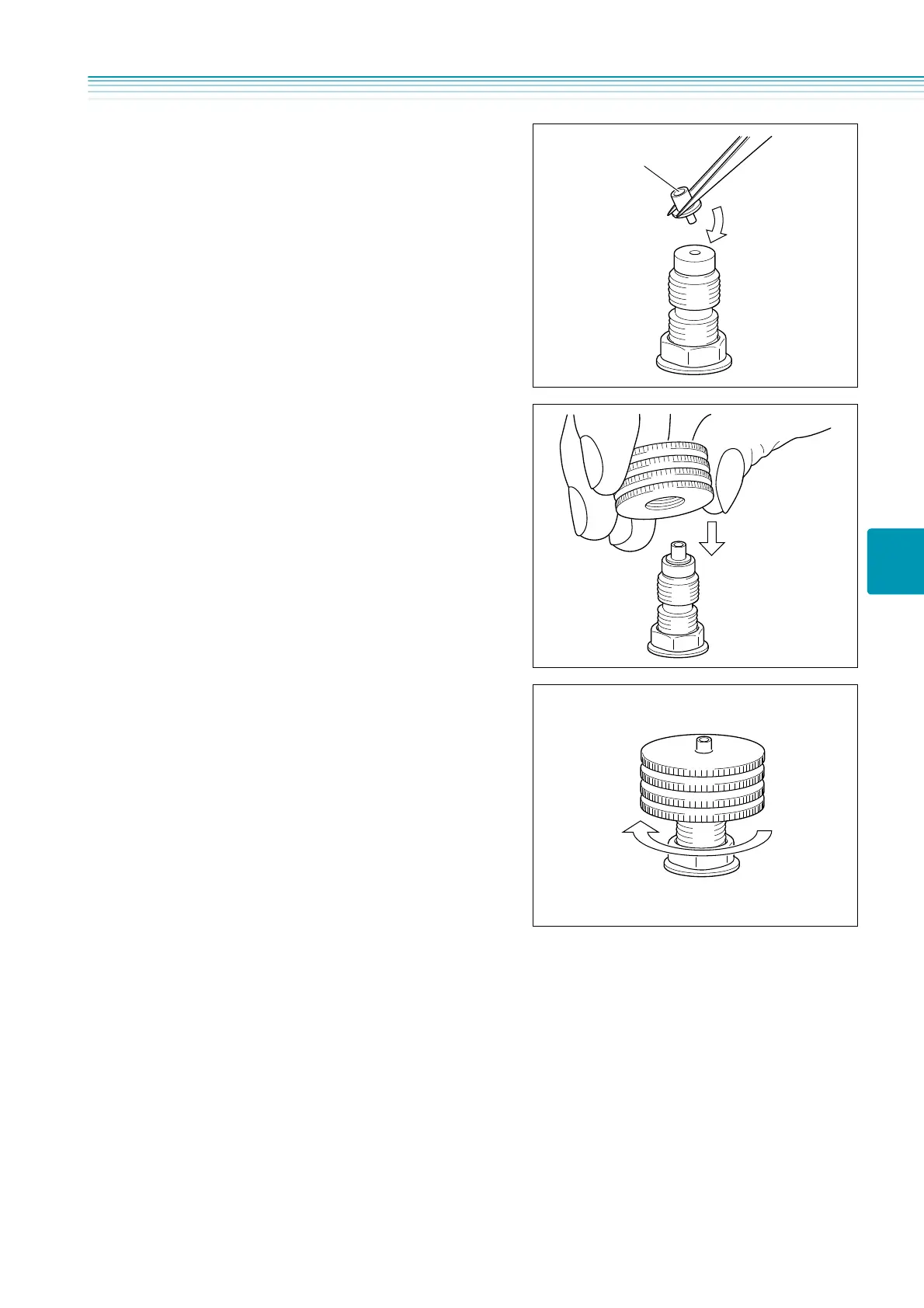

Install a needle guide.
Use tweezers to hold the needle guide.
4
Install a septum nut.
(1) After installing the needle guide, attach the
septum nut.
(2) Tighten the septum nut clockwise as far as
possible, and then loosen one-half turn.
Needle guide

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
