4 Using the control module Clarity Controls
LC Valve tab
Tab listing the Valve Position table. Each row defines the change of the
valve position in given time. These settings can be later printed as a part
of the report.
Note: The valves set on particular pumps may not be governed from the Method
Setup - Event Table dialog, only from the Time Table on the Method
Setup - LC - LC Valve tab.

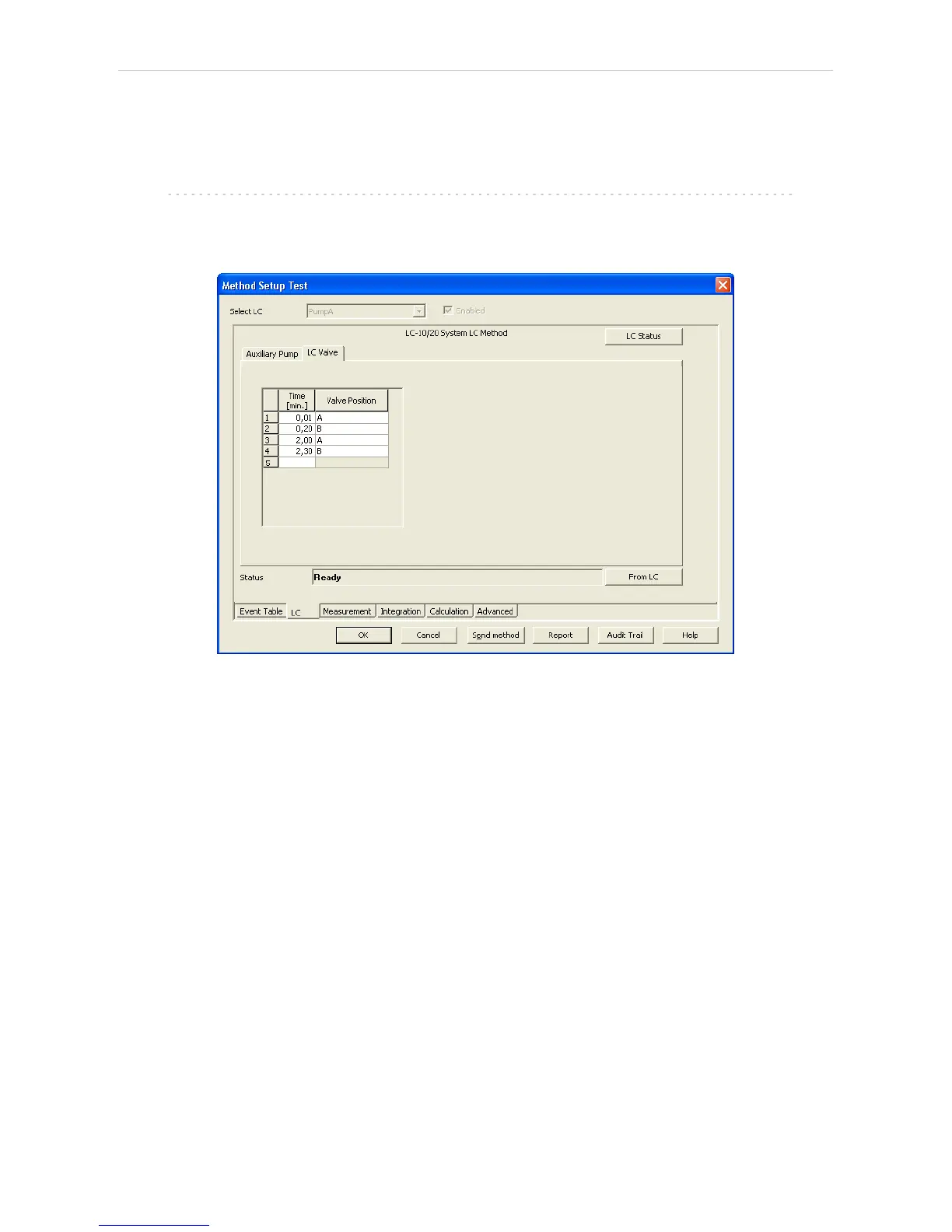

Fig 14: Method Setup - LC - LC Valve
- 25 -
