4 Using the control module Clarity Controls
4.1.6 Report Setup
All of the pump settings accessible on the Method Setup - LC Gradient tab
and in the Gradient Options dialog are reported, if the pump is configured
as the part of the gradient. To do so, the Instrument Control parameter on
the Method tab of the Report Setup dialog must be checked.

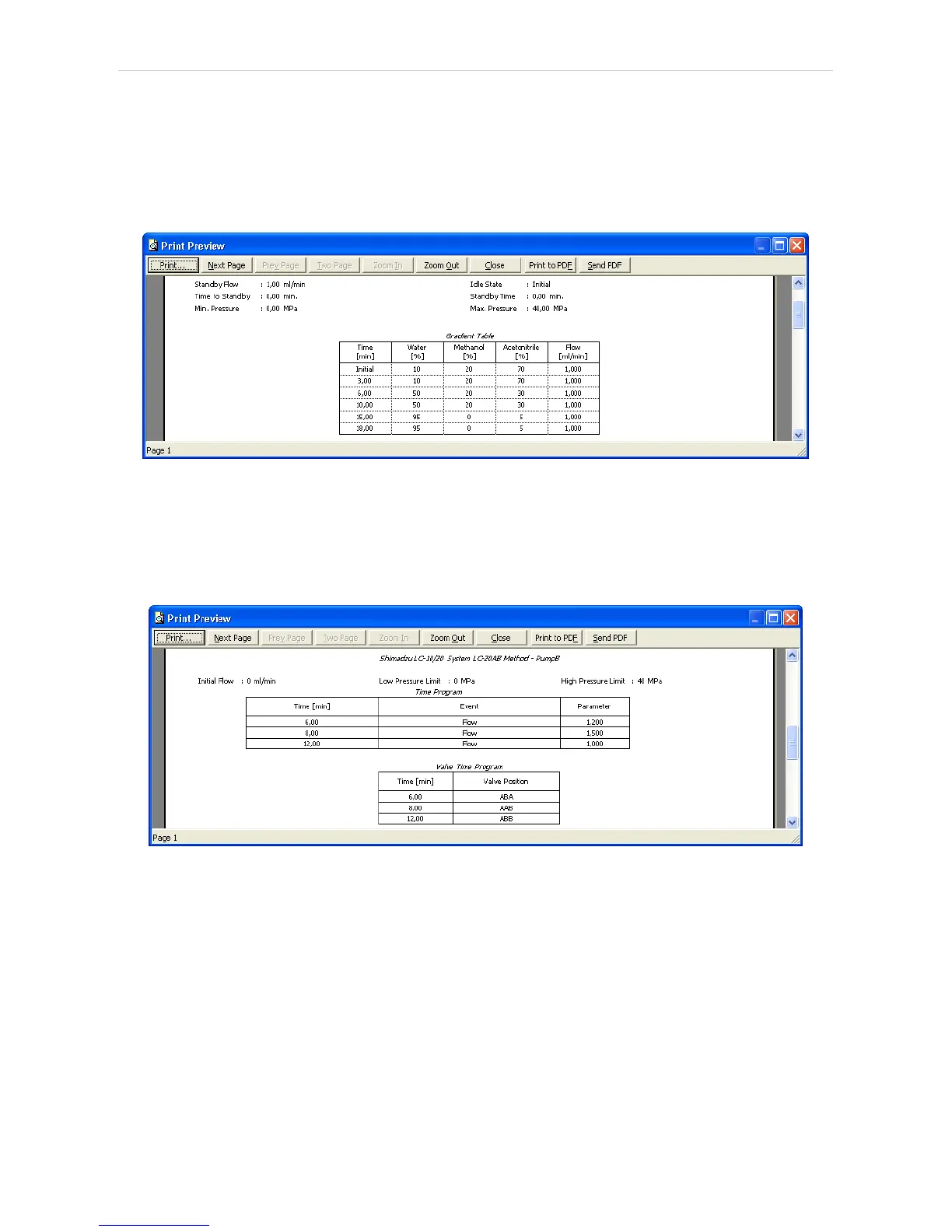

Fig 19: Report - pump part of the gradient
If the pump is set as an Auxiliary pump, thus excluded of the Gradient
Table, the values set on the of the Method Setup - LC tab are reported,
including the Time Table. To do so, the Instrument Control parameter on
the Method tab of the Report Setup dialog must be checked.
Fig 20: Report - Auxiliary pump
- 29 -
