4 Using the control module Clarity Controls
4.3.6 Report Setup
The autosampler settings accessible from the Method Setup - AS tab and
Shimadzu LC-10/20 System Setup - Autosampler dialog may also be
included in the report. To do so, the Injection Control parameter on the
Method tab of the Report Setup dialog must be checked.

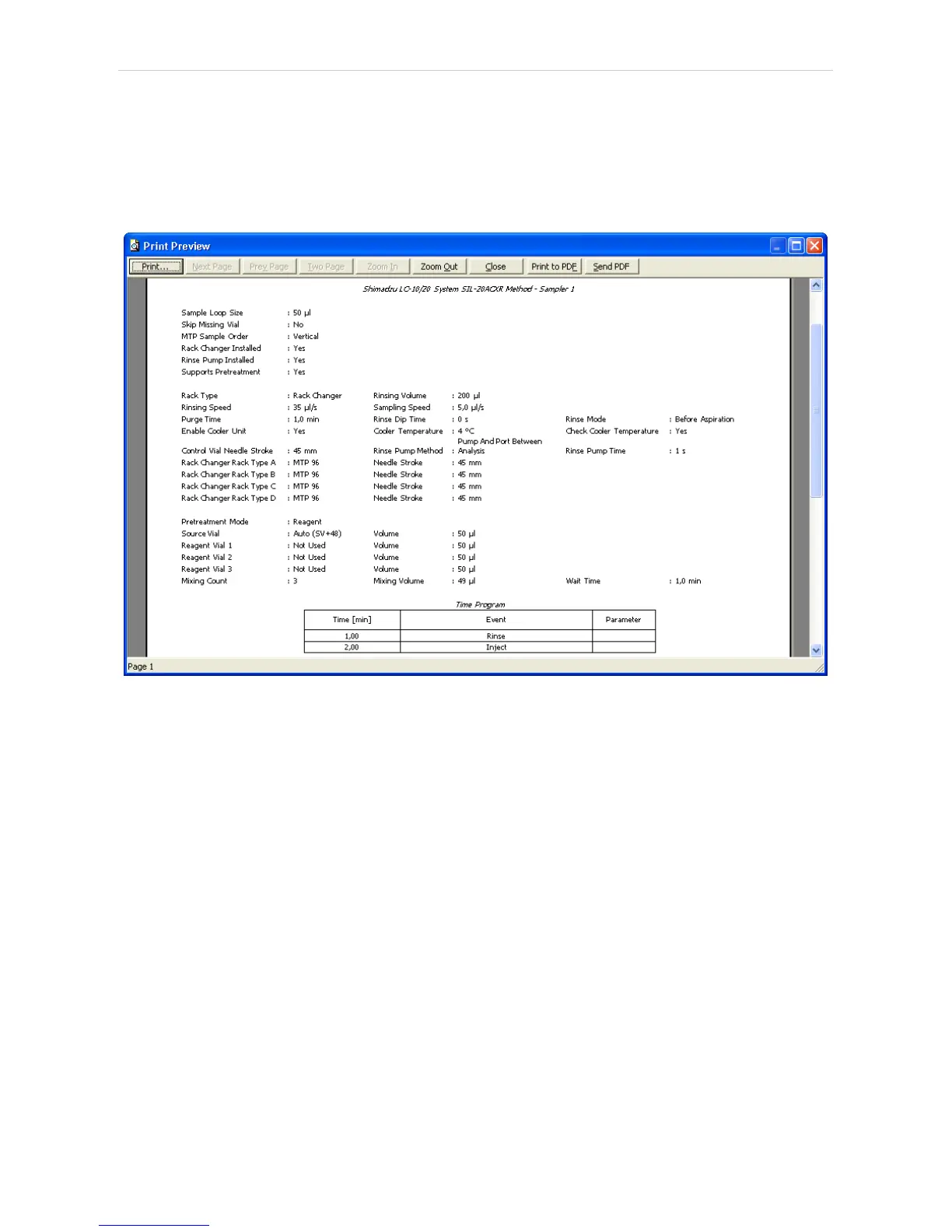

Fig 43: Report Setup - Autosampler
The first part of the parametres is taken from the Shimadzu LC- 10/20
System Setup - Autosampler dialog settings, the second part contains
parametres set on the Method Setup - AS tab (including the Time Table).
- 57 -
