4 Using the control module Clarity Controls
4.1.5 Device Monitor
The pump status dialog can be invoked by the Monitor - Device Monitor
command from the Instrument window or using the LC Monitor icon.
Device Monitor - LC Monitor
It displays the actual flows of particular solvents, as well as the total flow,
the total pressure and the analysis time.

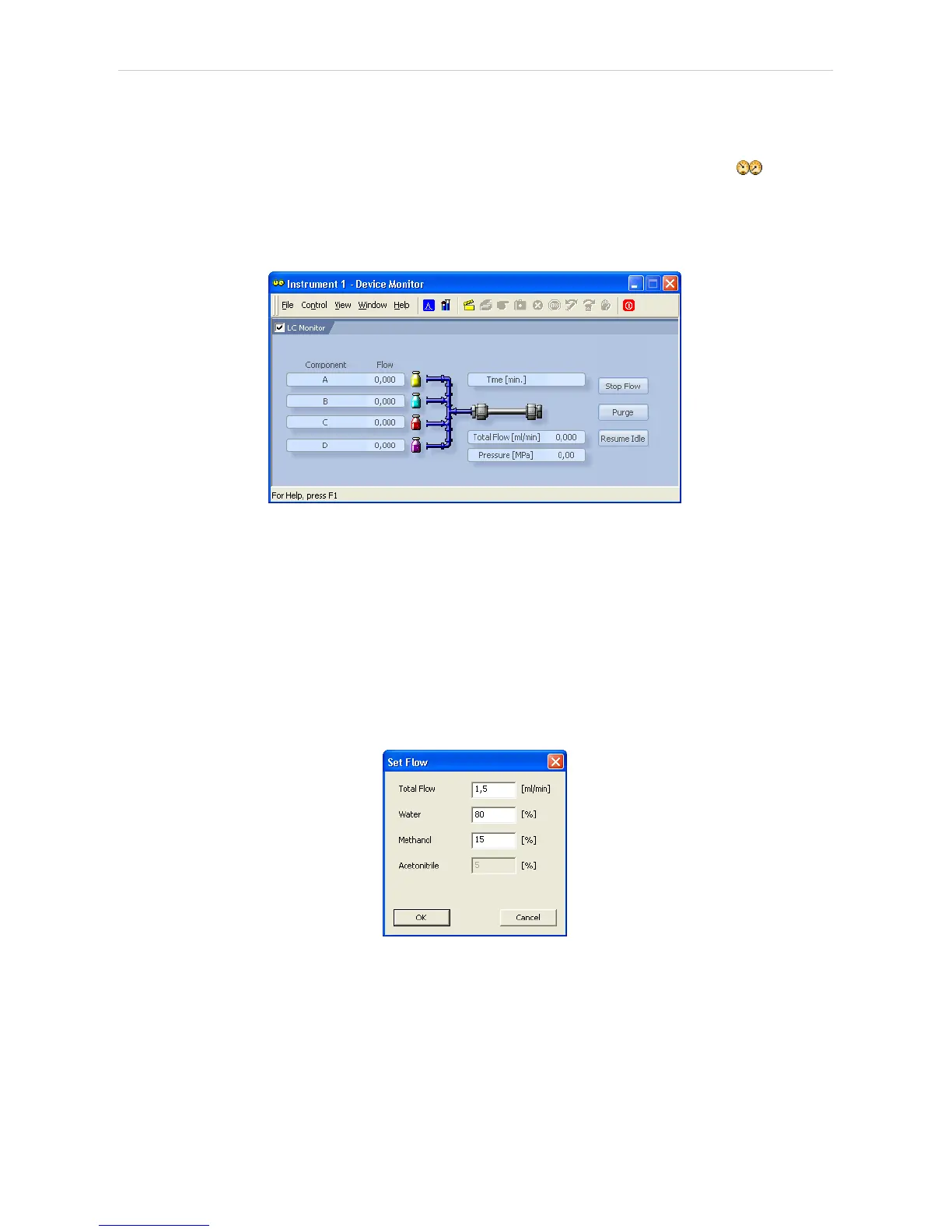

Fig 16: LC Monitor
Stop Flow
The pumps can be stopped from this window using the Stop Flow button.
This action will stop the pump only, the analysis run will continue and
must be stopped or aborted from the Data Acquisition window or Single
Analysis dialog.
Purge
The pumps may be purged by pressing this button. Set the desired total
flow and solvent ratios in the opened Set Flow dialog.
Fig 17: Set Flow
Resume Idle
Returns the pumps to IDLE state as defined in the appropriate field on the
LC Gradient tab of the Method Setup dialog.
