3 Installation Procedure Clarity Controls
3.4.2 Shimadzu LC-10/20 System Setup - Controller

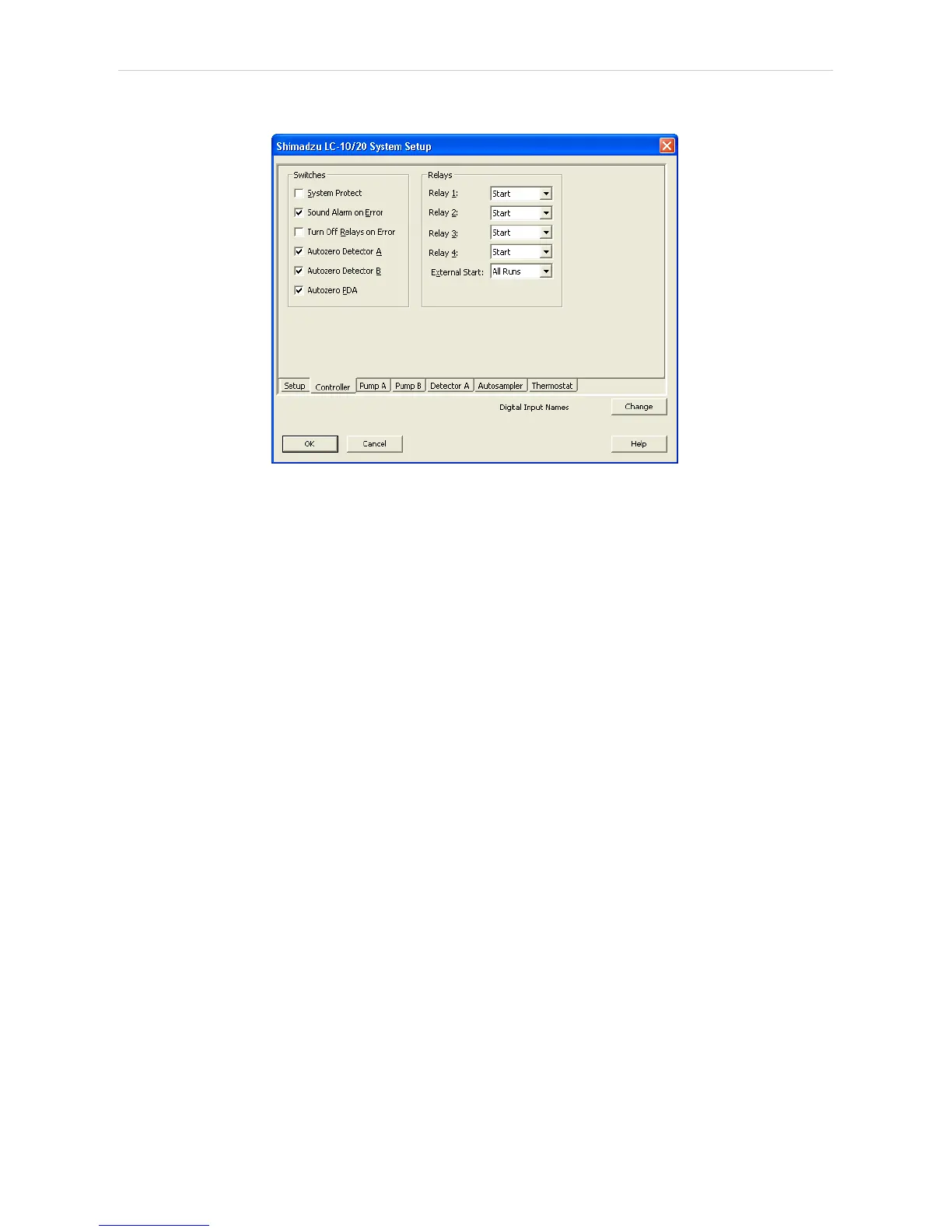

Fig 8: Shimadzu LC-10/20 System Setup - Controller
Switches
System Protect
While checked, in case of exceeding the maximal pressure the flow
rate will be decreased to one half of the set value. If unchecked, the
exceeding will shut-off the pump.
Sound Alarm on Error
Check to signalize error messages by sound.
Turn Off Relays on Error
If checked, in case of the controller error the AC power for devices
plugged in the multiple terminal box will be turned off.
Autozero Detector A (B)
If checked, the particular detector response will be set to zero at the
start of acquisition.
Autozero PDA
If checked, the PDA detector response will be set to zero at the start of
acquisition.
Relays
Relay 1 (..4)
These controls define the trigger criterion for each controller relay
outputs. Possible criteria are:
Start - Relay closed at the beginning of the analysis.
Stop - Relay closed at the end of the analysis or time program.
Error - Relay closed in the event of the system controller error.
Event - Relay closed on the time basis as the event of the HPLC time
program.
- 14 -
