Shimadzu LC-10 User Manual

4 Using the control module Clarity Controls
4.5 Thermostat
The Method Setup - Thermostat tab serves for setting the temperature
program of the analysis using the thermostat (column oven) configured in
the Shimadzu LC-10/20 System Setup - Thermostat dialog.
Note: The Ready Range (temperature range, in which the actual temperature
is considered as matching the set value) and Wait Time (time to stabilize
the system between the temperature is reached and the device is ready)
could be set only from the thermostat keyboard, those parameters are not
supported in the software control.
4.5.1 Shimadzu LC-10/20 System Setup - Thermostat

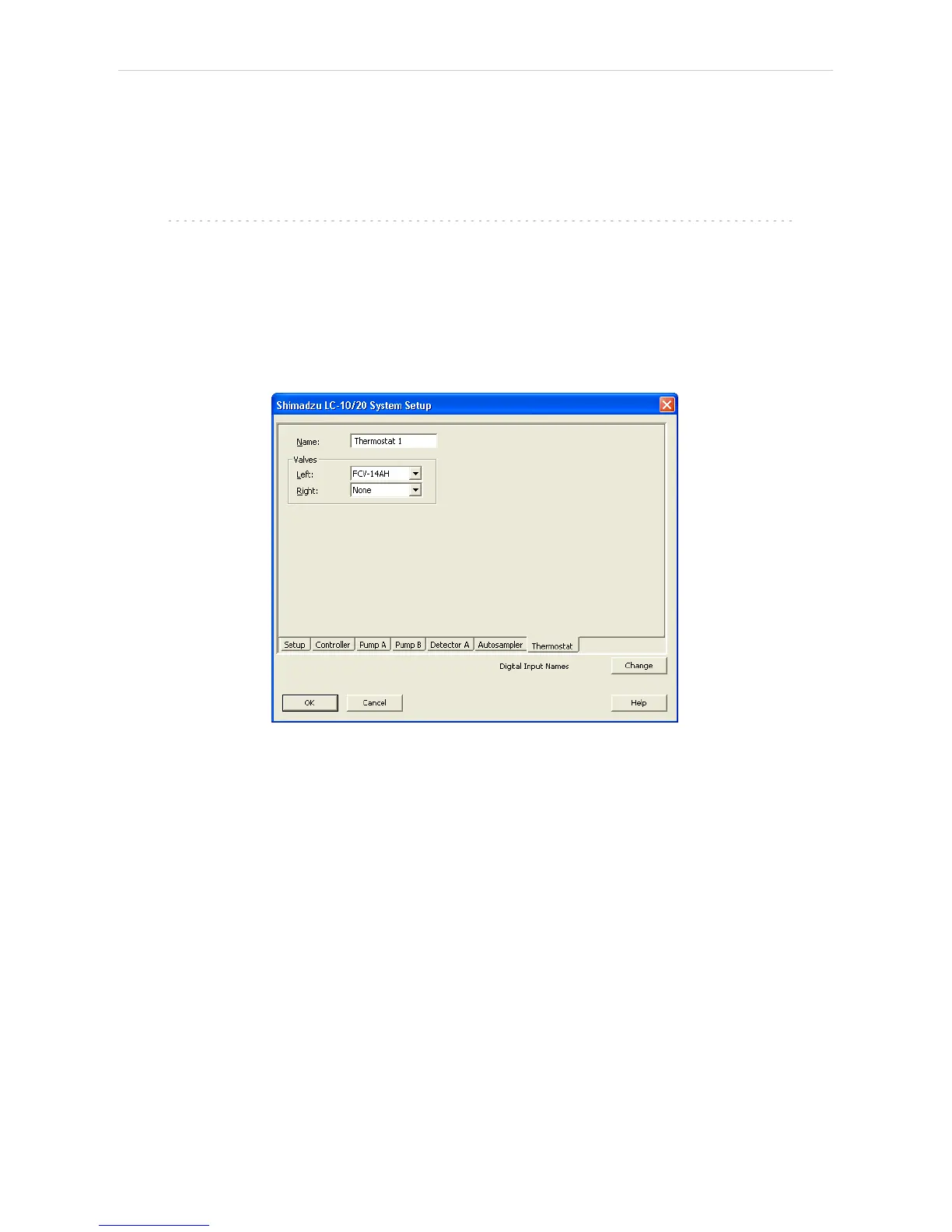

Fig 49: Shimadzu LC-10/20 System Setup - Thermostat
Some options may be missing or shaded depending on the type of the
thermostat installed.
Name
Defines the name of the thermostat to be shown in the Method Setup
dialog and on other places.
Valves
When using the CTA-20A or CTA-20AC thermostat, fill in the type of
valves installed (if any).
- 65 -
