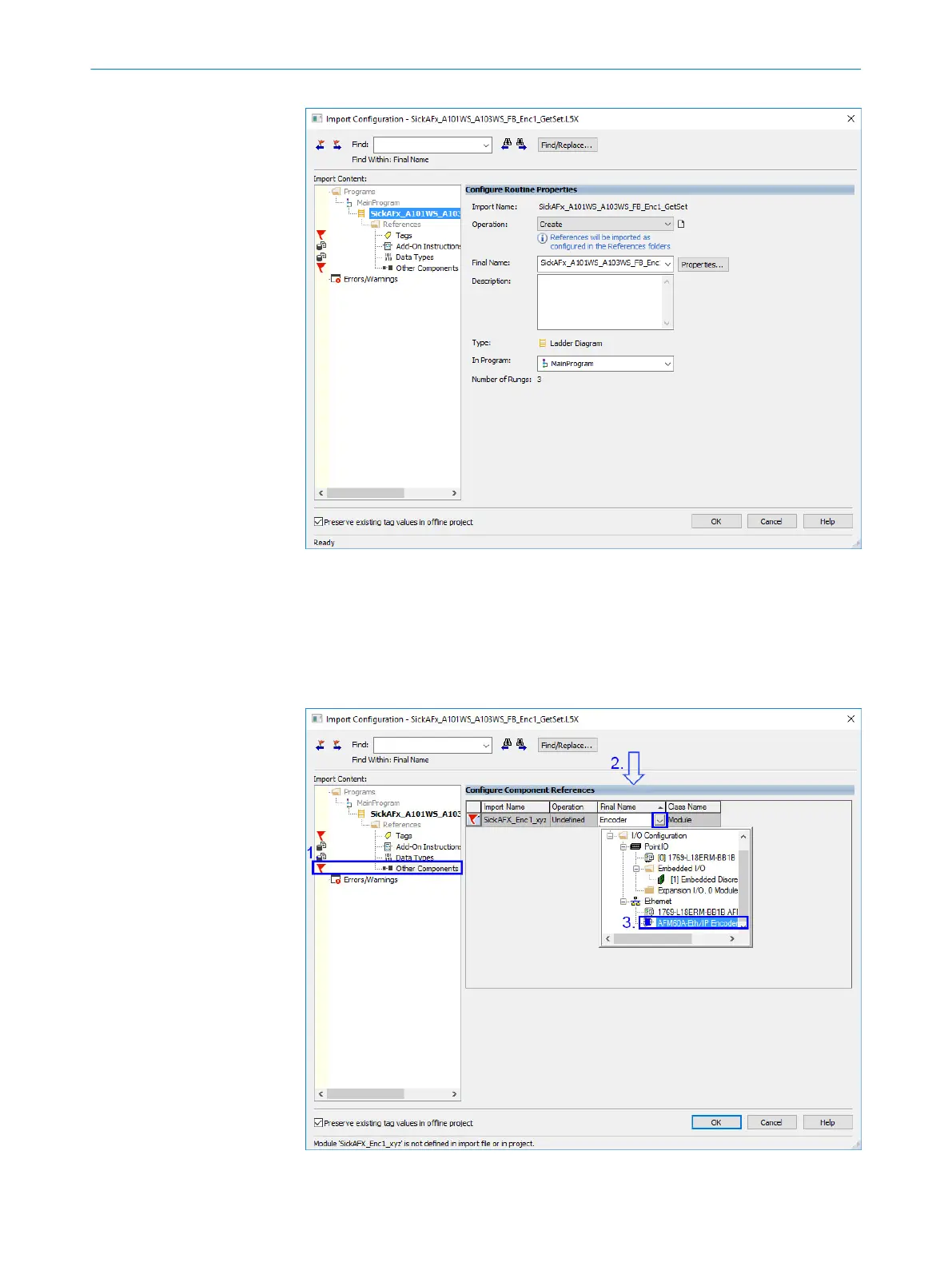

Figure 40: Import Configuration dialog
3. If necessary, change the name of the routine in the Final Name field.
If several encoders are integrated into the project, then a unique final name must
be assigned to the routine for each encoder.
4. Select the Other Components item.
5. In the Final Name column, select the drop-down list.
6. Select the encoder module for which the ladder routine is to be imported.
Figure 41: Encoder selection
5
CONFIGURATION USING A PLC
58
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
