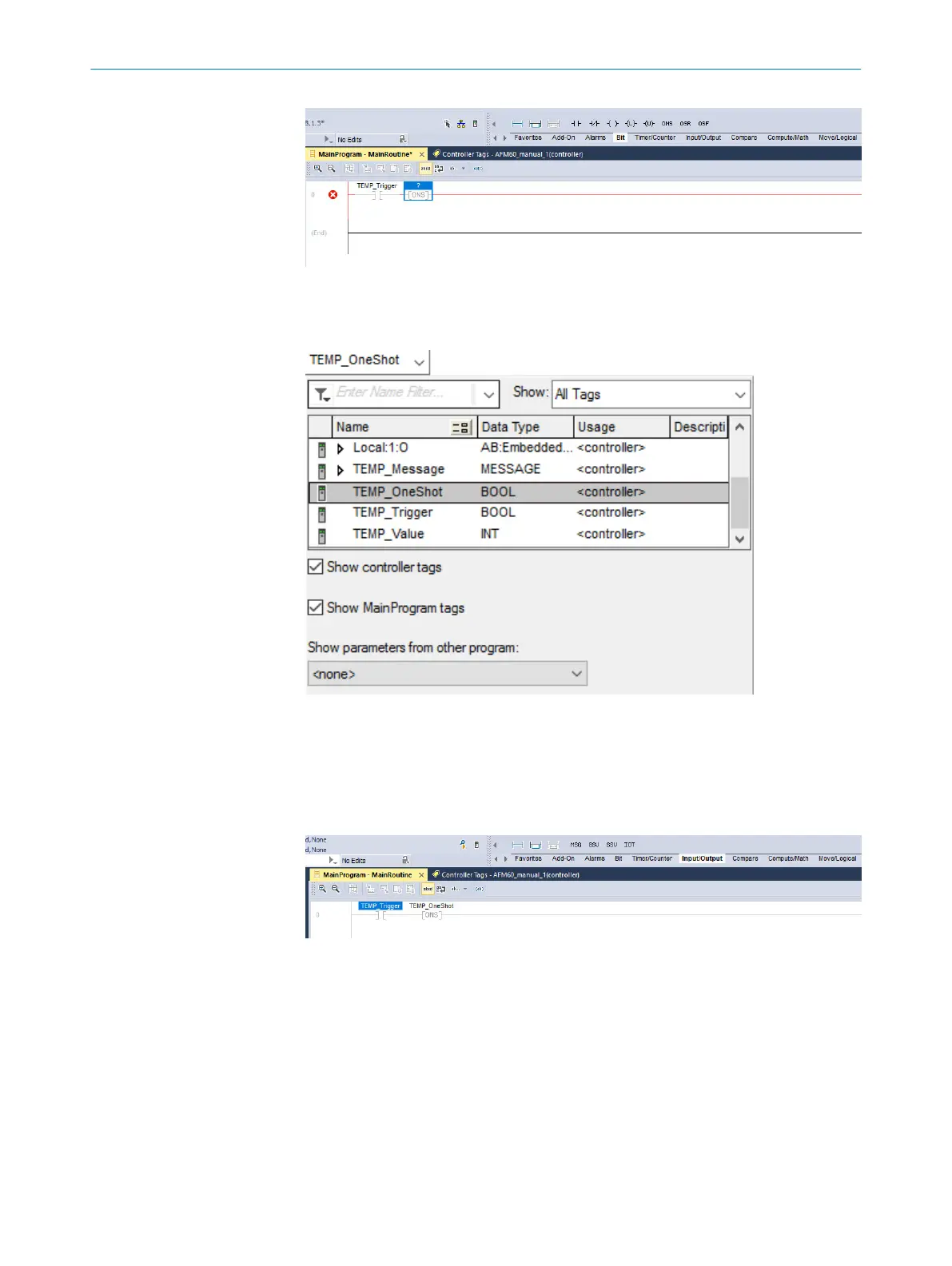

Figure 73: Inserting ONS block
5. From the Bit tab, select the ONS block and insert it into the MainRoutine .
A variable must also be assigned to this block.
Figure 74: Assignment of variables TEMP_OneShot to ONS
6. Click on the question mark .
✓
A drop-down menu will open.
7. Select variable TEMP_OneShot.
In the next step, the message must be configured to read the temperature value
from the encoder.
Figure 75: Inserting MSG block
8. From the Input/Output tab, select the MSG block and insert it into the MainRoutine .
5
CONFIGURATION USING A PLC
78
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
