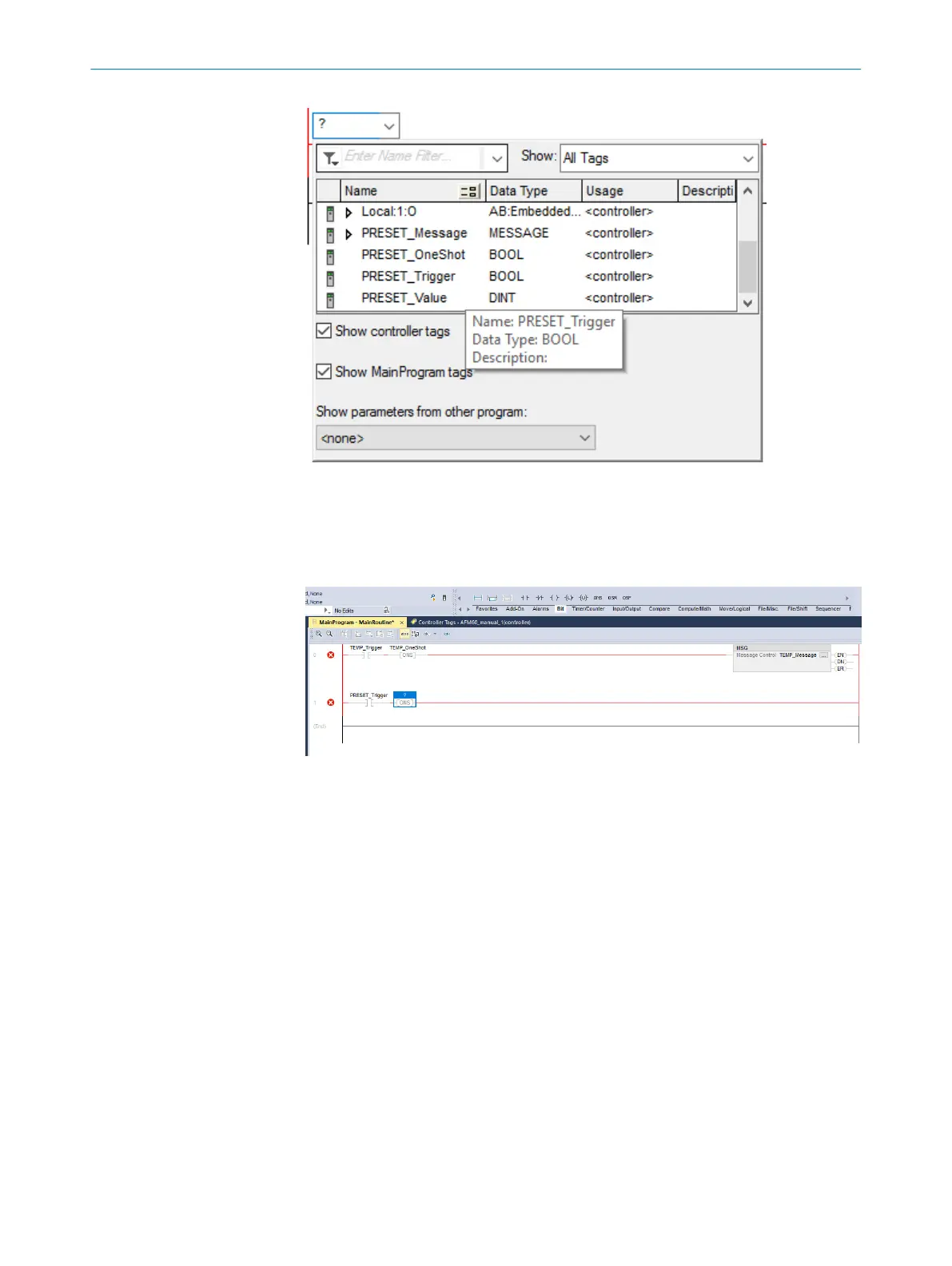

Figure 93: Assignment of variable PRESET_Trigger to ExamineOn
4. Click on the Fragezeichen .
✓
A drop-down menu will open.
5. Select variable PRESET_Trigger.
For the edge sensitivity of the process flow, the ONS block must be inserted.
Figure 94: Inserting ONS block
6. From the
Bit tab, select the ONS block and insert it into the MainRoutine .
A variable must also be assigned to this block.
5 CONFIGURATION USING A PLC
88
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
