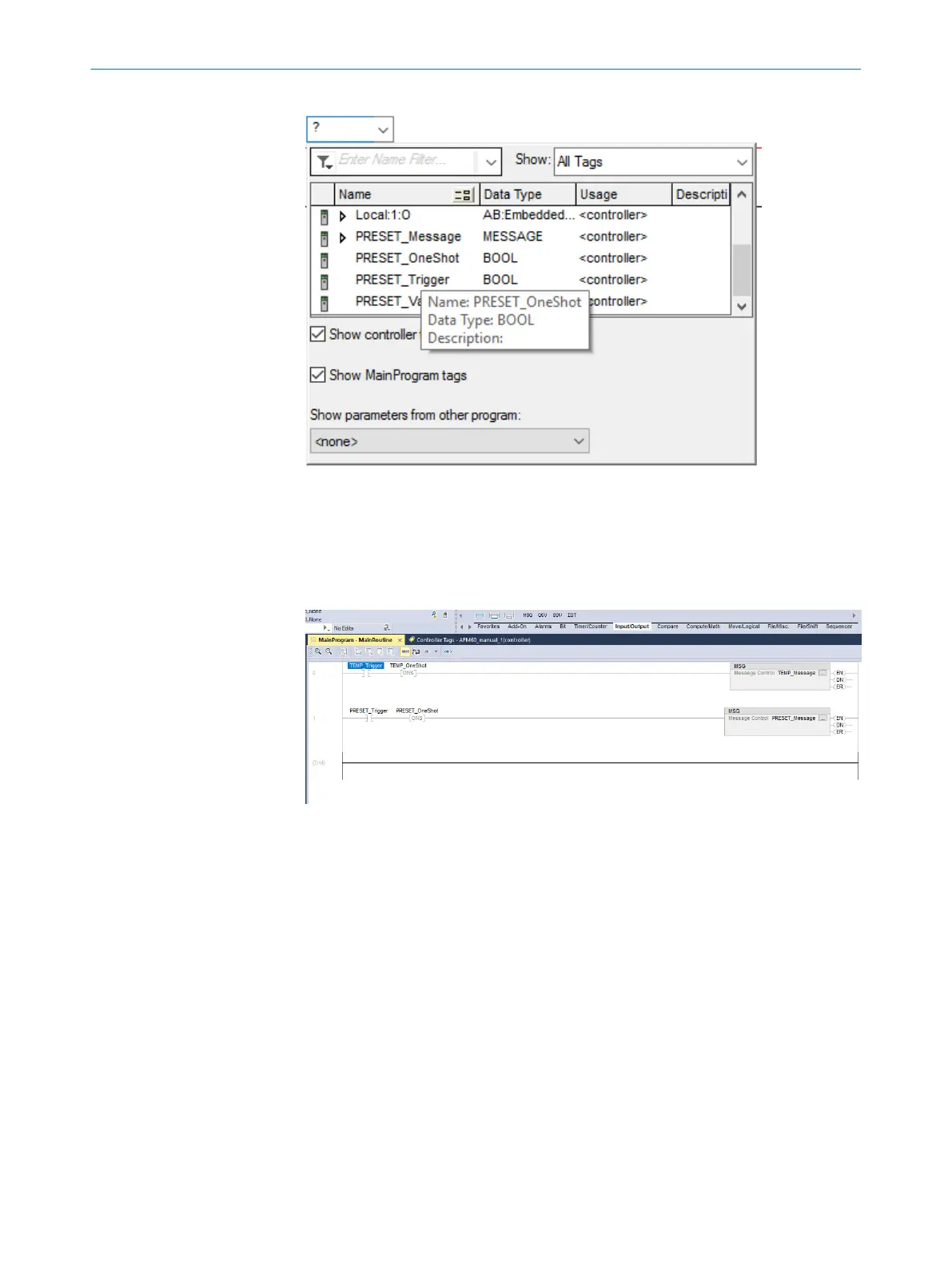

Figure 95: Assignment of variables PRESET_OneShot to ONS
7. Click on the Fragezeichen .
✓
A drop-down menu will open.
8. Select variable PRESET_OneShot.
In the next step, the message must be configured to write the preset value into the
encoder.
Figure 96: Inserting MSG block
9. From the Input/Output tab, select the MSG block and insert it into the MainRoutine .
CONFIGURATION USING A PLC
5
8014213/1EF3/2021-12-08 | SICK O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP
89
Subject to change without notice
