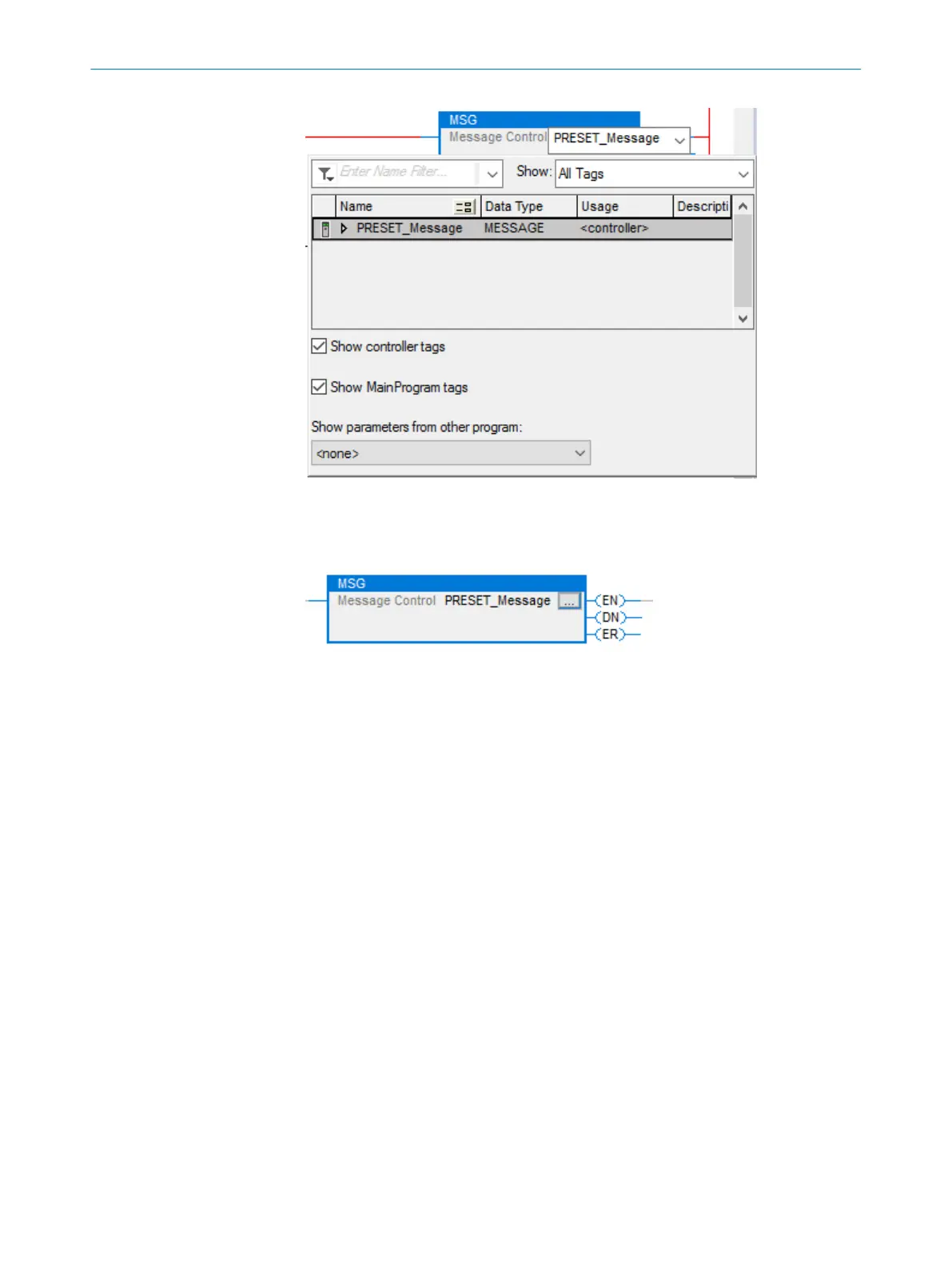

Figure 97: Assignment of variables PRESET_Message to MSG
10. In the Message Control field, select variable PRESET_Message.
The MSG block must then be configured.
Figure 98: Opening configuration dialog of the MSG block
11. Click on the button with the three dots.
✓
The Message Configuration dialog opens.
5
CONFIGURATION USING A PLC
90
