SICK FLOWSIC600-XT User Manual

48 FLOWSIC600-XT · Operating Instructions · 8018846/1BHP/V2-1/2021-05 · © SICK Engineering GmbH
Installation
Subject to change without notice

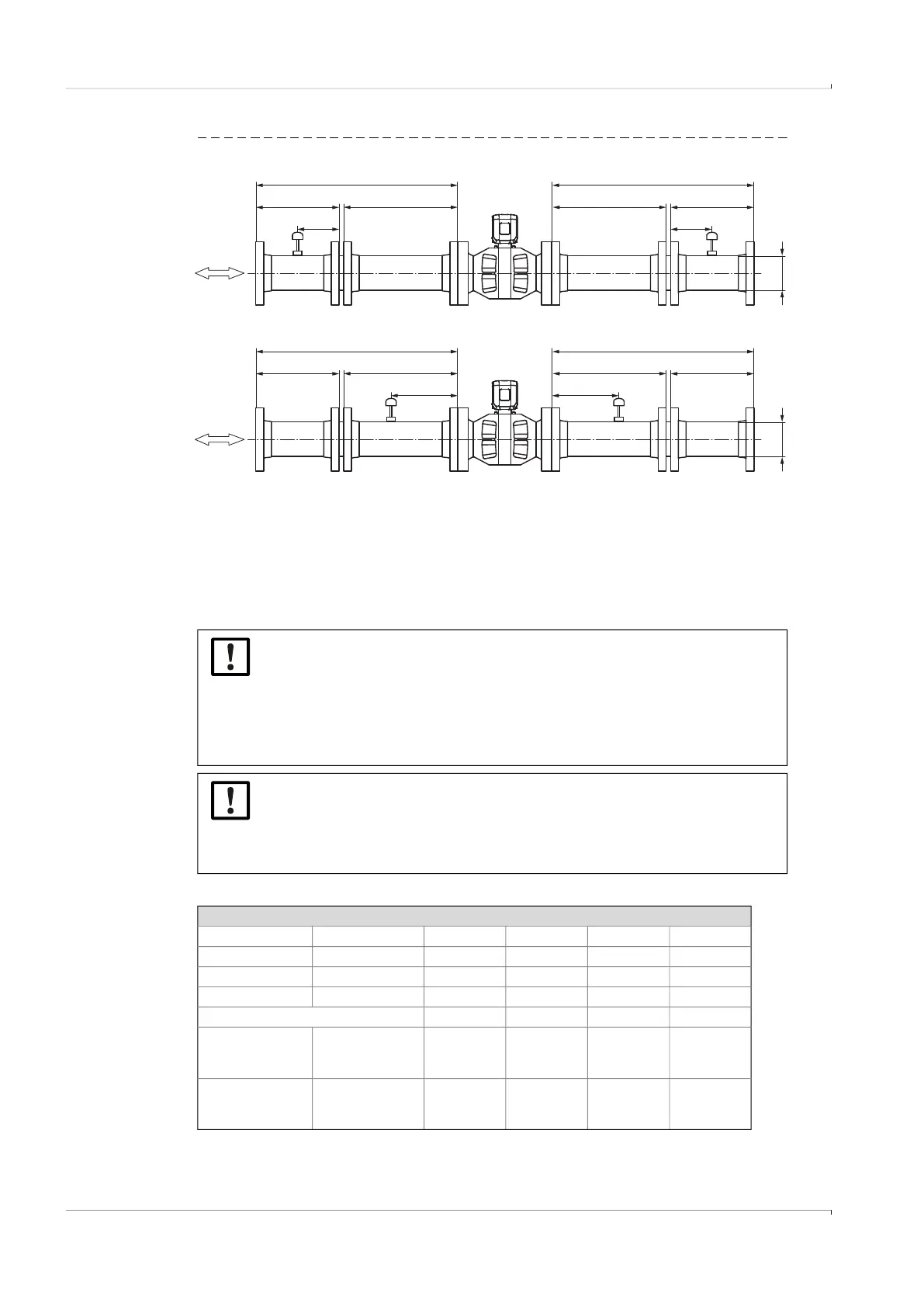

Fig. 21 Bidirectional use with rectifier (configuration B)
[1]
Characterized by CPA or SICK flow conditioners.
NOTICE:
Installation configuration (B) with the flow conditioner refers exclusively to SICK
conditioner types (according to SICK documents 9211778 and 9211779).
When using conditioner types CPA 50E or 55E, a distance between the condi-
tioner and meter of at least 10DN inlet length must be considered. When other
conditioners are used, the installation configuration can be different and must
be agreed with SICK.
NOTICE:
During operation, it is imperative to use the same flow conditioner as well as
the same pipes, in the same orientation as when calibrating the meter. Mark
the pipes and flow conditioner to indicate the flange alignment at the time of
calibration.
1
22
33
DD
≥ A ≥ A
≥ B≥ C≥ B ≥ C
DN
B1
1
22
33
≥ A ≥ A
≥ B≥ C≥ B ≥ C
DN
B2
3 ... 5 DN 3 ... 5 DN
1. FLOWSIC600-XT
2. Alternative temperature measuring points
3. SICK flow conditioner
Variant B1: Q
max
≤ 30 m/s
Variant B2: Q
max
≥ 30 m/s
Configuration 2 (B)
OIML R137 A B C D
4 measuring paths Class 1.0 5 DN 2 DN 3 DN 1 DN
4 measuring paths Class 0.5 10 DN 2 DN 8 DN 1 DN
8 measuring paths Class 1.0/0.5 5 DN 2 DN 3 DN 1 DN
AGA Report 9 3rd Edition, July 2017 A B C D
4 measuring paths Metering package
performance per
§6.3
1,2
10 DN 5 DN 5 DN 2.5 DN
3
8 measuring paths Metering package
performance per
§6.3
1,2
6 DN 3 DN 3 DN 2.5 DN
3
