Installation
FLOWSIC600-XT · Operating Instructions · 8018846/1BHP/V2-1/2021-05 · © SICK Engineering GmbH 47
Subject to change without notice
Bidirectional
Fitting the FLOWSIC600-XT for bidirectional flow.

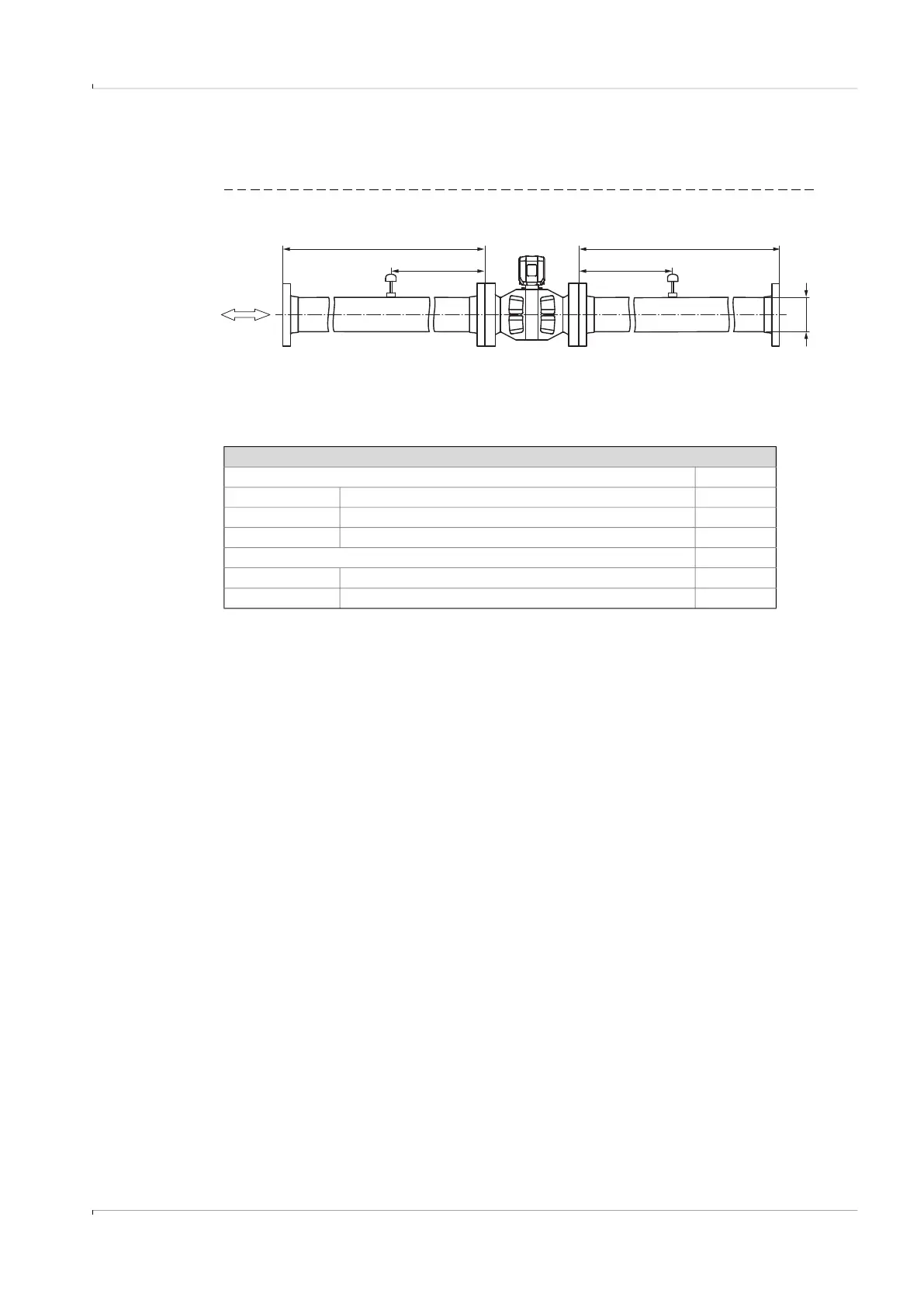

Fig. 20 Bidirectional use without flow conditioner (configuration A)
Configuration 1 (A)
OIML R137 A
4 measuring paths Class 1.0 10 DN
8 measuring paths Class 1.0 5 DN
8 measuring paths Class 0.5 5 DN
AGA Report 9 3rd Edition, July 2017 A
4 measuring paths Metering package performance per §6.3
1
10 DN
8 measuring paths Metering package performance per §6.3
1,2
5 DN
1. FLOWSIC600-XT
2. Alternative temperature measuring points
3. SICK flow conditioner
1
22
≥ A≥ A
3 ... 5 DN 3 ... 5 DN
DN
A
