SICK VMS4100 User Manual

SYSTEM DESCRIPTION 3
31
8026362 / V1-0/2022-03|SICK
Subject to change without notice
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100

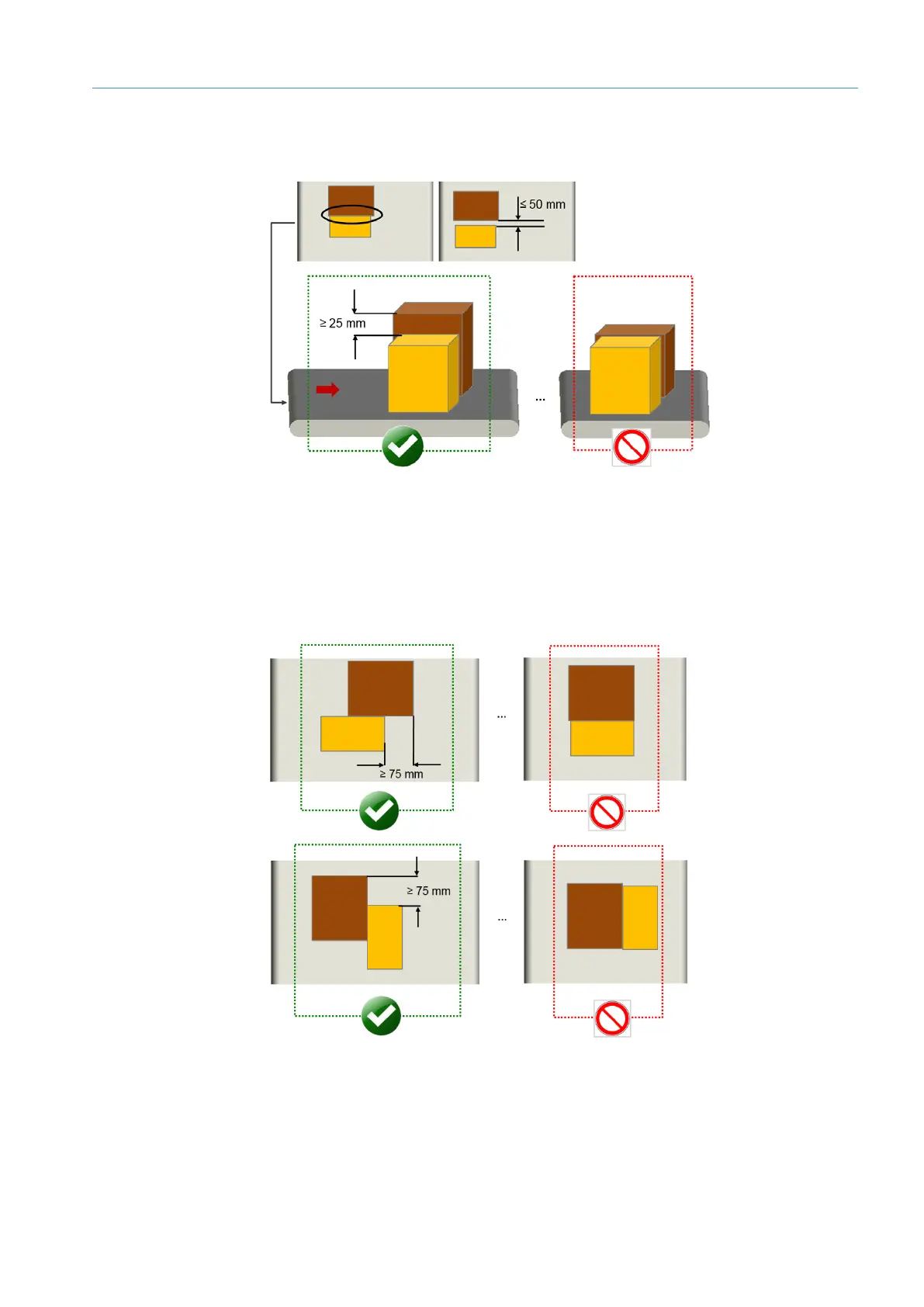

If the distance between the side-by-side objects is ≤ 50 mm, or if the objects are touching,
then the objects must have a height difference of at least 25 mm.
Fig. 22: Height difference of the side-by-side objects: ≥ 25 mm
OR
The objects can also be transported one after the other or side-by-side on the conveyor
belt while touching at their corners and edges if the offset between the touching objects is
≥ 75 mm.
Fig. 23: Offset of touching objects: ≥ 75 mm
Transport condition 2
Transport condition 3
