3 SYSTEM DESCRIPTION
8026362 / V1-0/2022-03|SICK
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
Subject to change without notice
In example 1, the multi-dimensional measurement system is working with the two scale
interval values 5 mm x 5 mm x 5 mm and 10 mm x 5 mm x 5 mm. An object length of
2,000 mm has been defined as the switchover point during commissioning.
Objects with a length less than or equal to 2,000 mm are measured with scale interval
value 1 (5 mm x 5 mm x 5 mm). For objects with a length greater than 2,000 mm, the multi-
dimensional measurement system automatically uses scale interval value 2 (here 10 mm)
for the length dimension due to the detected object length, and continues to use scale
interval value 1 (here 5 mm x 5 mm) for the width and height.
Fig. 34: Dynamic scale value switchover (switching point for length, width and height)

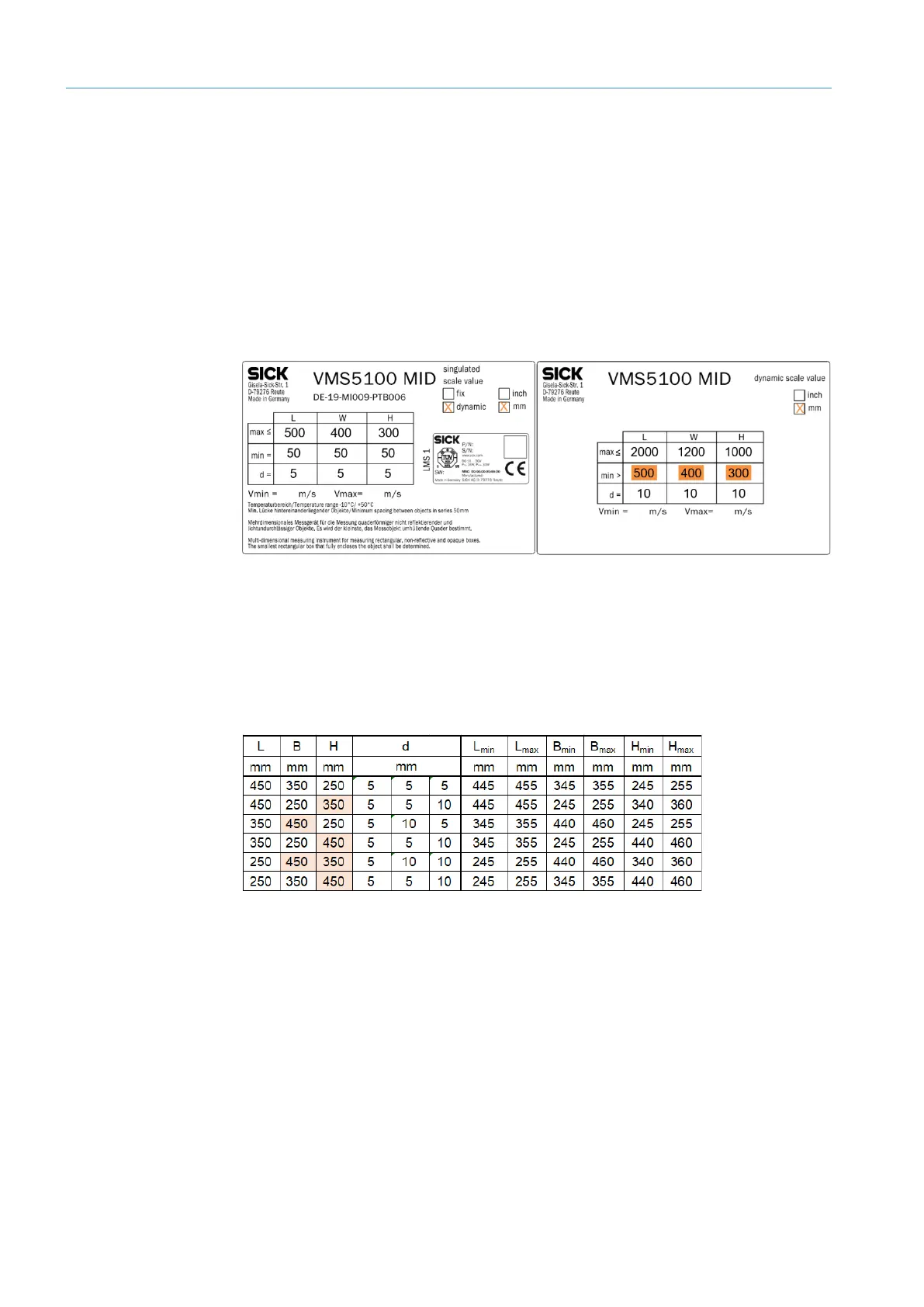

In example 2, the multi-dimensional measurement system is working with the two scale
interval values 5 mm x 5 mm x 5 mm and 10 mm x 10 mm x 10 mm. The change of scale
interval values occurs for all three dimensions. The switching points are 500 mm for the
length, 400 mm for the width, and 300 mm for the height.
The following table shows the scale interval values based on each respective measured
object dimension.
Example 2
