The incremental encoder is protected against disassembly and disconnection of the
connecting cable by corresponding adhesive seals.

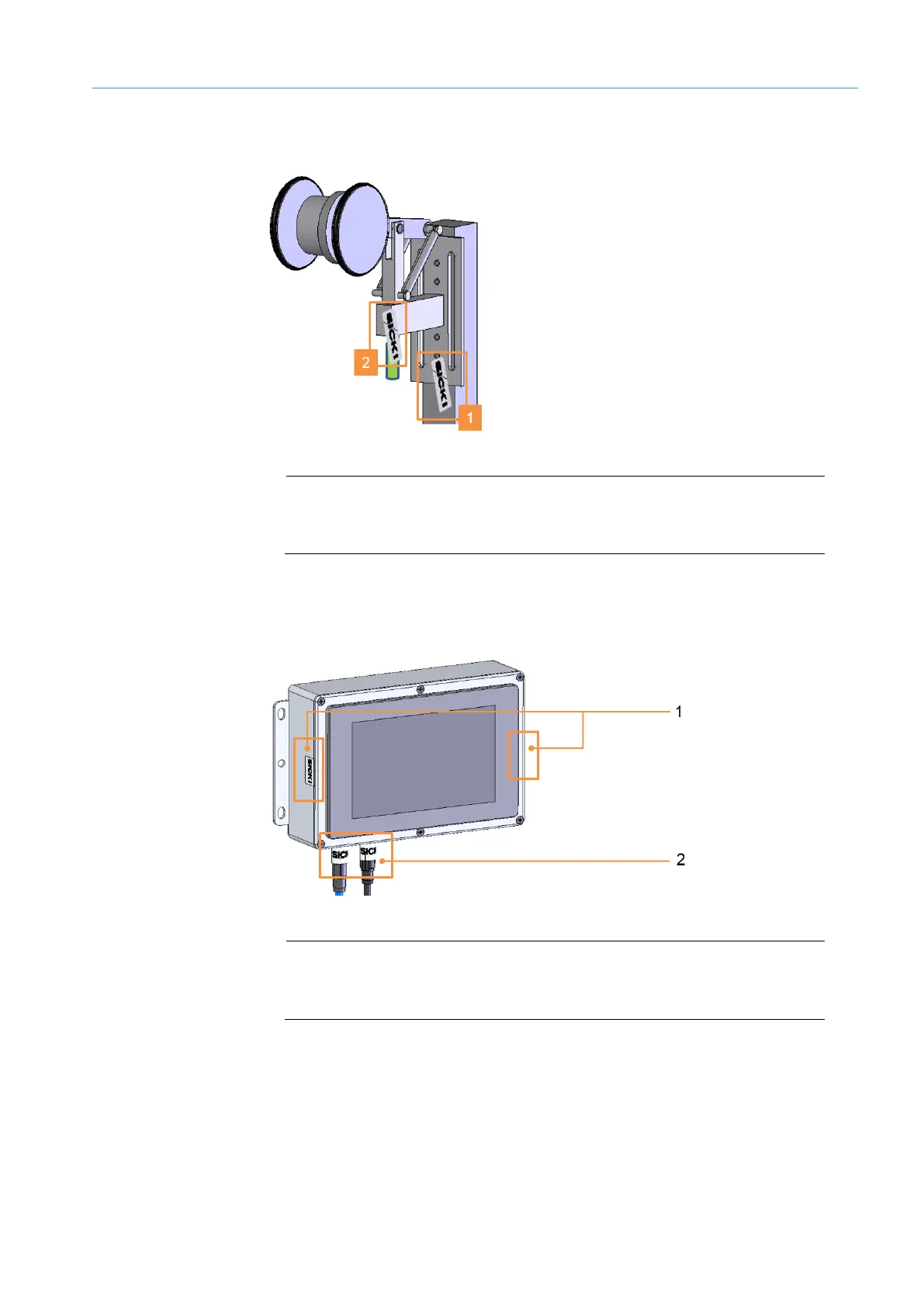

Fig. 48: Security seals on the incremental encoder (DFV60 in this image)
Legend
1 Security seal on the bracket
2 Security seal on the male connector
The LFT display is protected against disassembly and disconnection of the connecting
cable by corresponding adhesive seals.
Fig. 49: Security seals on the LFT display
Legend
1 Security seal on the LFT display housing
2 Security seal on the male connectors.
Security seals on the
incremental encoder
Security seals
on the LFT display
