05.05 Connections

Siemens AG 6RX1700-0AD76 6-51

SIMOREG DC Master Operating Instructions

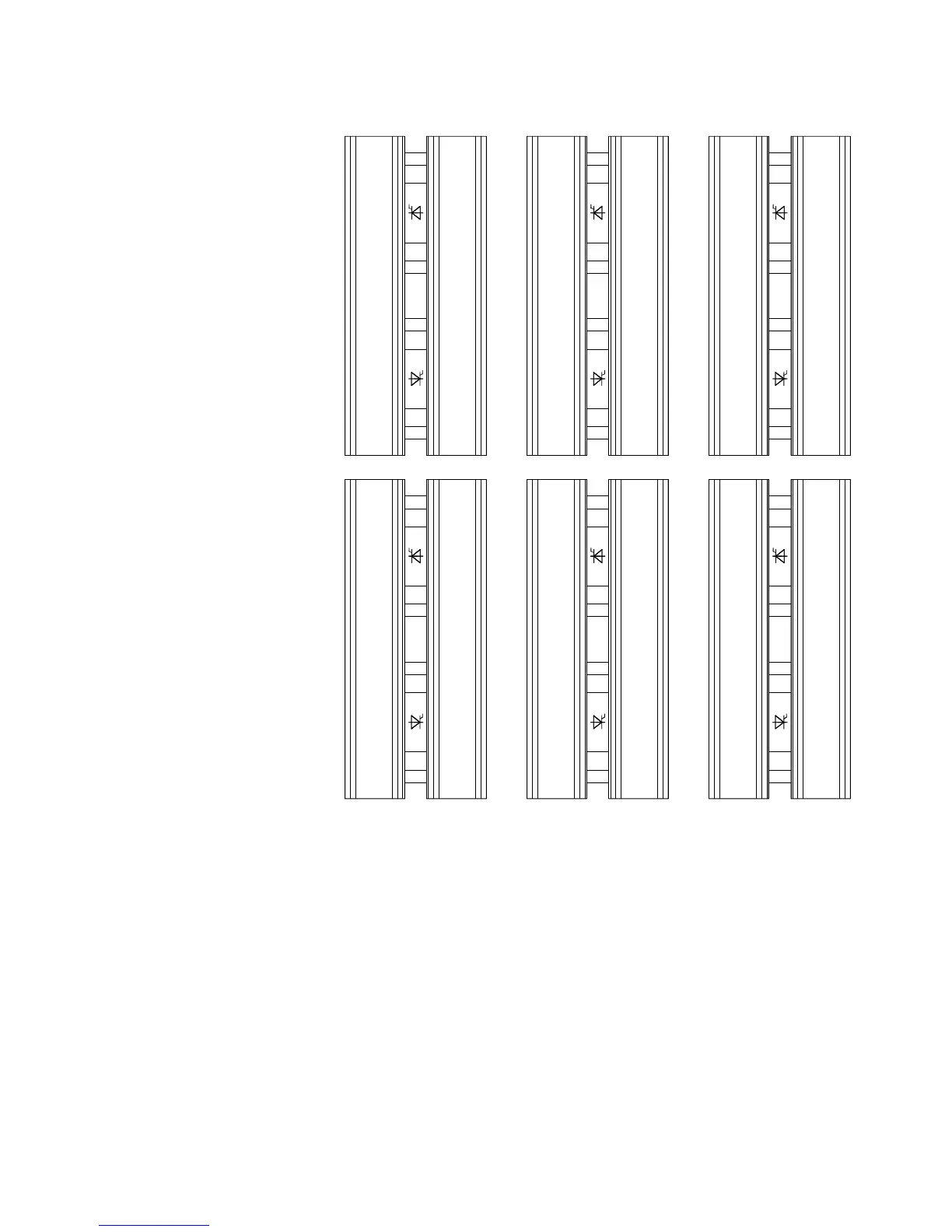

Arrangement of thyristor blocks

V14

V21

V16

V23

V12

V25

V24

V11

V26

V13

V22

V15

At rear

t front
