05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-37
SIMOREG DC Master Operating Instructions

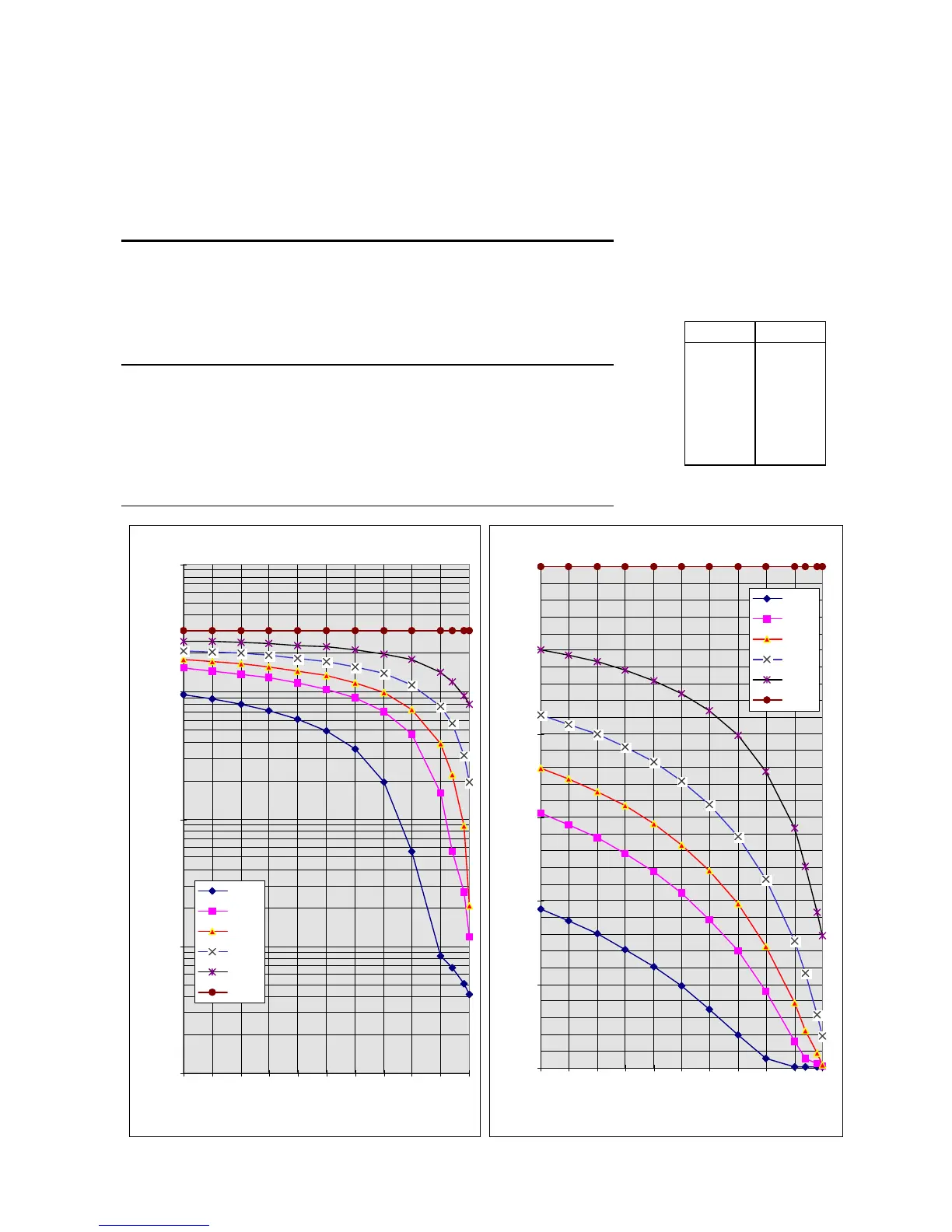

9.15.3 Characteristics for determining the dynamic overload capability for intermittent
overload operation
6RA7013-6DV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 95.420 152.660 179.100 211.080 250.440 300.000
10 88.298 145.785 172.818 205.833 247.077 300.000
20 80.245 137.837 165.438 199.620 243.106 300.000
30 71.148 128.570 156.707 192.183 238.150 300.000
40 60.760 117.657 146.280 183.060 231.964 300.000 X t
an
(s)
50 48.911 104.704 133.676 171.763 224.061 300.000 1.1
∞
60 35.280 89.040 118.105 157.453 213.554 300.000 1.2 1633
70 19.600 69.916 98.440 138.528 199.098 300.000 1.3 1112
80 5.512 46.107 72.987 112.909 177.737 300.000 1.4 833
90 0.838 15.990 38.903 76.140 143.360 300.000 1.5 651
94 0.670 5.590 22.080 56.520 120.320 300.000 1.8 382
98 0.503 2.651 8.750 31.800 93.013 300.000
100 0.419 1.182 2.085 19.440 79.360 300.000 t
ab
(s) = 2281
6RA7013-6DV62 15A/400V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7013-6DV62 15A/400V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
