Siemens 6RA7086-6KS22

Connections 05.05
6-52 Siemens AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions

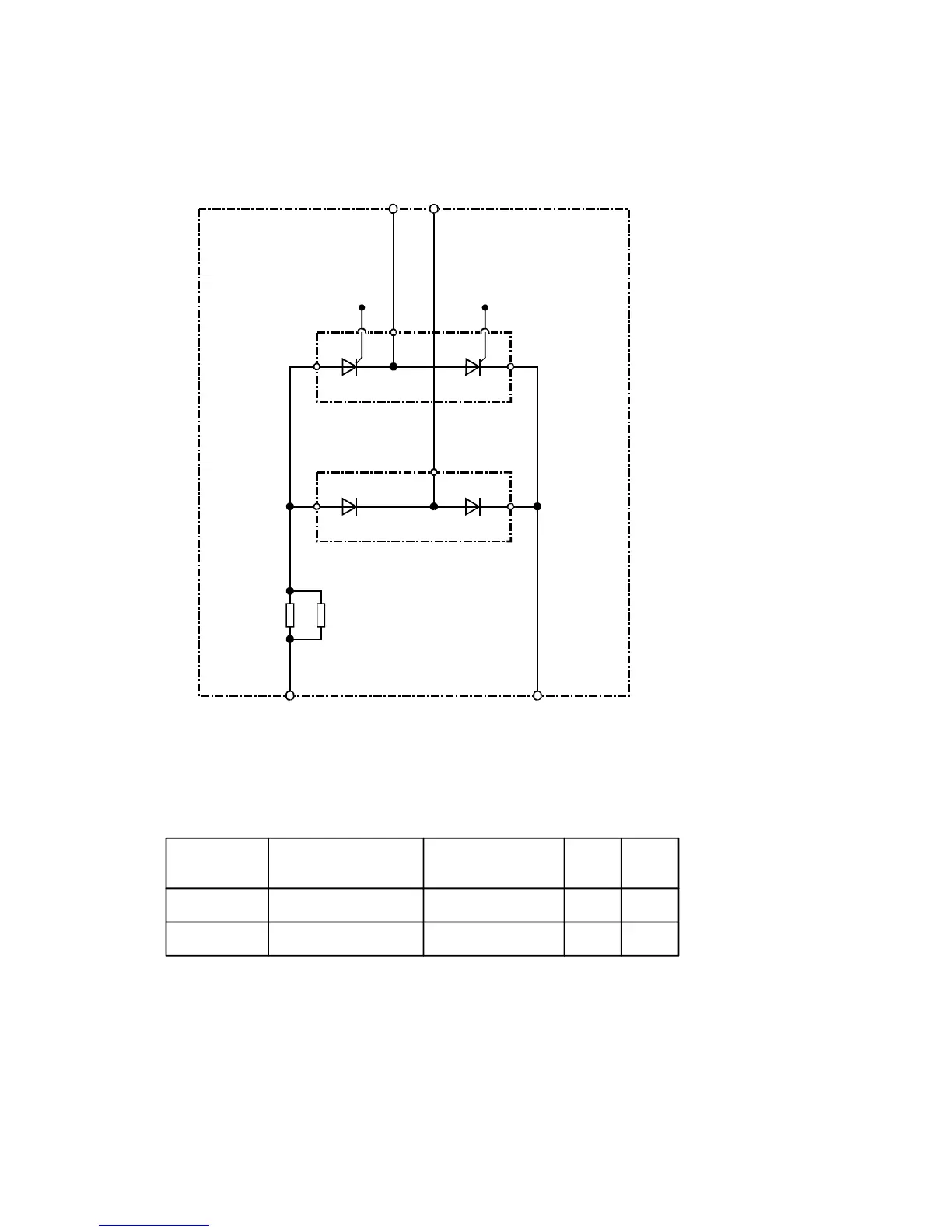

6.5 Field supply
Converter type D . . . / 15 to 30A
V7
G1G2
K
A
3U1
C98043-A7010
3W1
V8
K
A
3D 3C
AK
AKAK
R1 R2
R1
R2
A7010-L1 3A15A 0R1 0R1
A7010-L2 5A30A 0R1 0R05
XF1-1
XF1-2
XF2-1 XF2-2
Module Rated DC
current field
Rated DC
current armature
Gating leads are Betatherm 145 1mm²
