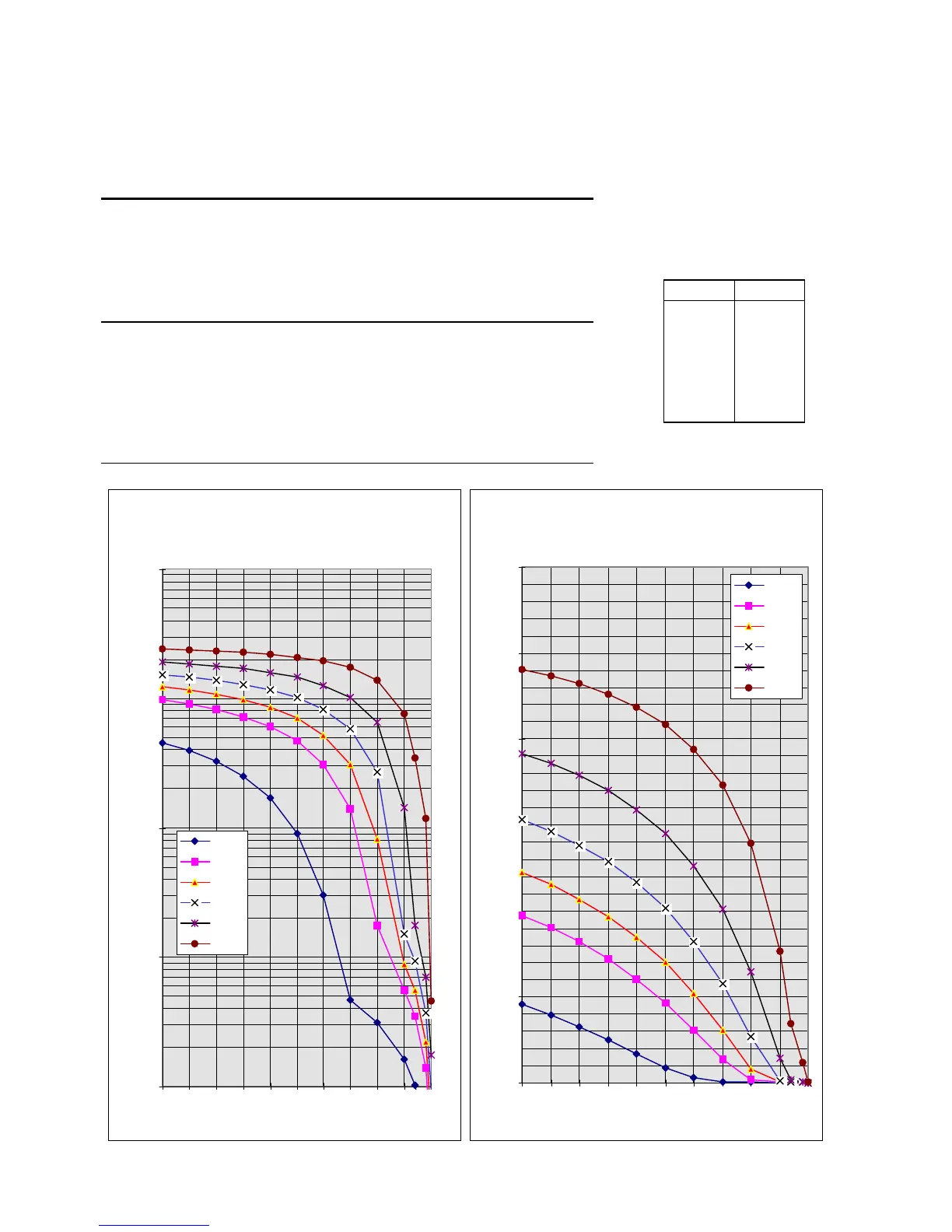

Function descriptions 05.05
9-38 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7018-6DS22 and 6RA7018-6FS22.
6RA7018-6DV62 and 6RA7018-6FV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 45.520 97.480 122.400 153.020 191.300 240.300
10 39.447 90.410 115.380 146.357 185.582 236.594
20 32.616 82.061 106.977 138.295 178.589 231.970
30 25.093 72.179 96.909 128.483 169.899 226.113
40 17.093 60.500 84.768 116.423 158.923 218.466 X t
an
(s)
50 9.069 46.750 70.012 101.402 144.877 208.253 1.1 1439
60 2.993 30.889 51.992 82.375 126.350 194.047 1.2 906
70 0.466 13.944 30.536 57.809 101.038 173.048 1.3 631
80 0.314 1.750 8.127 26.755 64.820 139.207 1.4 456
90 0.162 0.554 0.880 1.491 14.255 76.260 1.5 333
94 0.101 0.346 0.550 0.932 1.758 34.440 1.8 123
98 0.041 0.138 0.220 0.373 0.703 11.787
100 0.010 0.035 0.055 0.093 0.176 0.460 t
ab
(s) = 2169
6RA7018-6DS22 30A/1Q 400V
6RA7018-6FS22 30A/1Q 460V
6RA7018-6DV62 30A/4Q 400V
6RA7018-6FV62 30A/4Q 460V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7018-6DS22 30A/1Q 400V
6RA7018-6FS22 30A/1Q 460V
6RA7018-6DV62 30A/4Q 400V
6RA7018-6FV62 30A/4Q 460V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
