Siemens 6RA7086-6KS22

05.05 Function diagrams
SIEMENS AG 6RX1700-0AD76 8-75
SIMOREG DC Master Operating Instructions

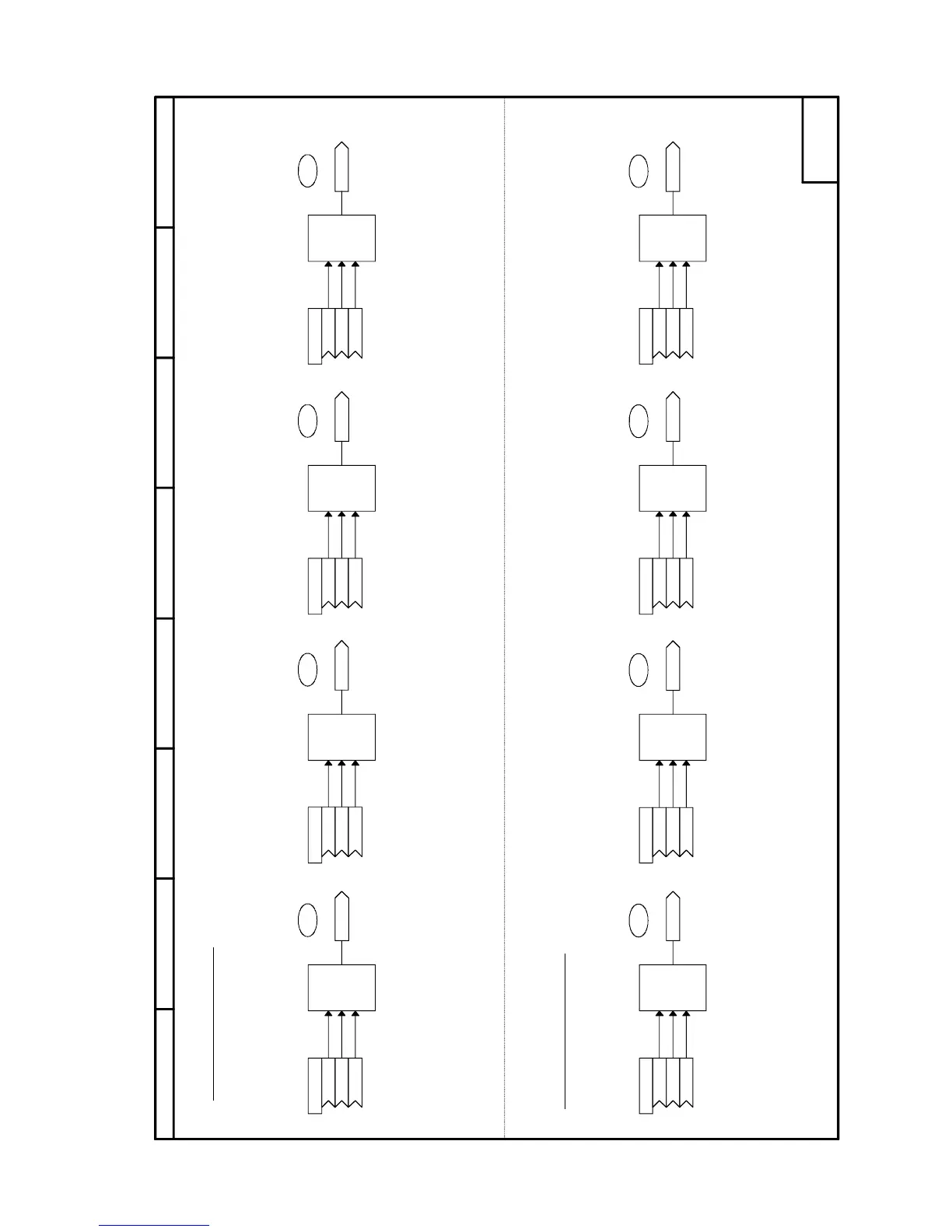

Sheet B140 Maximum selections, minimum selections
87564321
y
.01 x1 .02 x2
.03 x3
y
.01 x1 .02 x2
.03 x3
80
- B140 -
81
MIN
MAX
y
.04 x1 .05 x2
.06 x3
174
MAX
y
.04 x1 .05 x2
.06 x3
177
MIN
y
.07 x1 .08 x2
.09 x3
178
MIN
y
.10 x1 .11 x2
.12 x3
179
MIN
y
.07 x1 .08 x2
.09 x3
175
MAX
y
.10 x1 .11 x2
.12 x3
176
MAX
U220 (0)
K K K
K9193
U221 (0)
K K K
K9194
U221 (0)
K
K K
K9463
U221 (0)
K K K
K9464
U221 (0)
K K K
K9465
U220 (0)
K K
K
K9460
U220 (0)
K K K
K9461
U220 (0)
K K K
K9462
Maximum selection
y = maximum of x1, x2, x3 (e.g. -40% greater than -50%)
Minimum selection
y = minimum of x1, x2, x3 (e.g. -50% lower than -40%)
