Siemens 6RA7086-6KS22

Function diagrams 05.05
8-130 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
Sheet Z136 SCB1 with SCI1 as slave 2: binary outputs
87564321
- Z136 -
B1
B2
X429
X427
1 2 3 4 5 6 7 8 9 10 11
12
13
14 15 16 17
18
.13 .14
.15
.16 .18
.19
.20 .17
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
U698 (0)
B B B B B B B B
n699.13

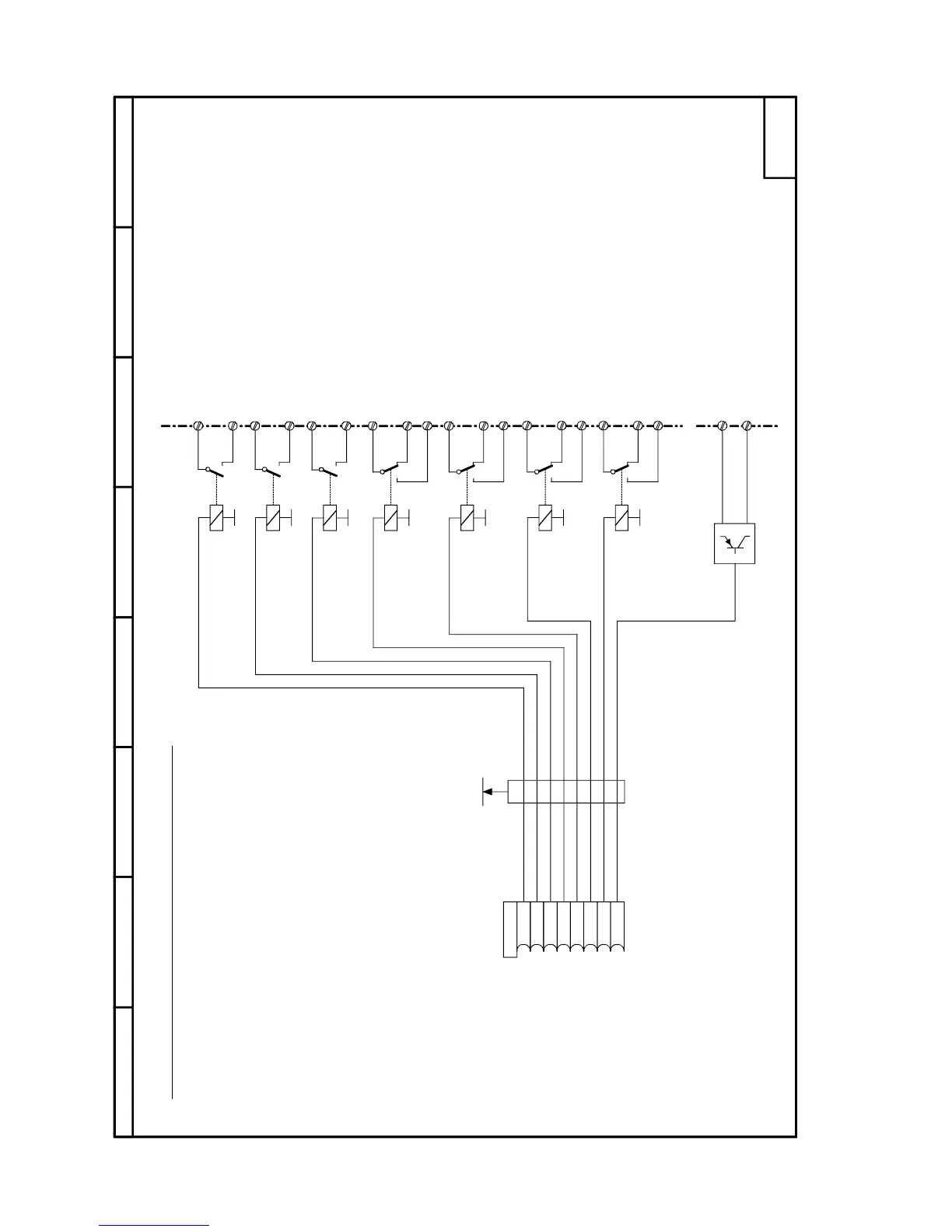

SCB1 with SCI1 as slave 2: binary outputs
Binary output 1 Binary output 2 Binary output 3 Binary output 4 Binary output 5 Binary output 6 Binary output 7 Binary output 8 100 mA short-circuit-proof
