05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-19
SIMOREG DC Master Operating Instructions

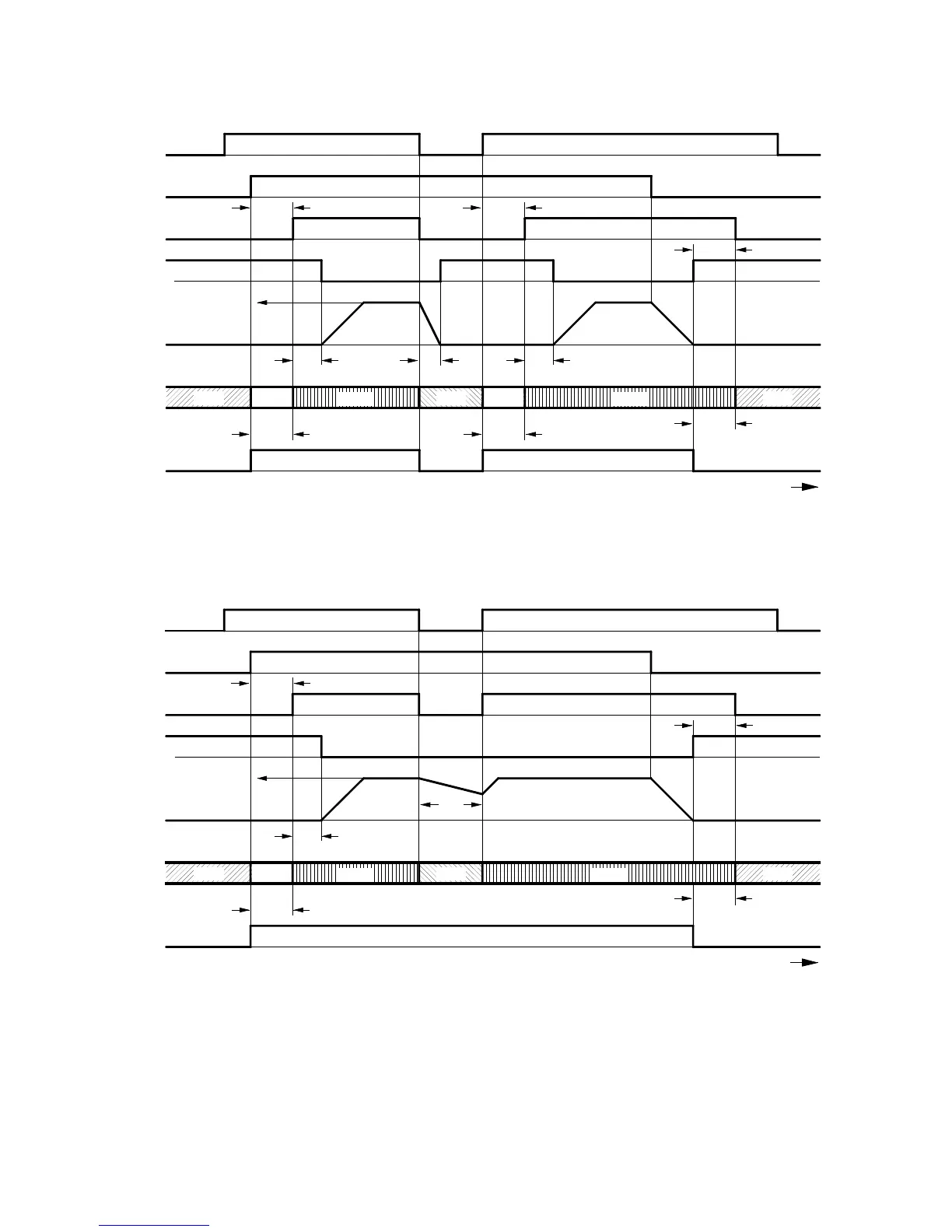

Operating brake (P080 = 2), positive brake release time (P087)
*
*
*
P088
P087
P087
o1.1
I,II,- - o1.0 o1.0
t
o7.0
3)
5)
o7.0
*
3)
1)
I,II,- -
n < n (P370,P371)
P319 P319
min
B0164
"disable"
"close"
"OFF"
"ON"
"enable"
"release"
Brake contr. signal
(B0255)
Oper. state
Actual speed
Internal contr. enable
Switch-on/shutdown
(term. 37)
Oper. enable
(term. 38)
Speed setpoint
Holding brake (P080 = 1), positive brake release time (P087)
P088
P087
t
n < n (P370,P371)
o1.1
I,II,- - o1.0
o7.0 o7.0
I,II,- -
*
*
3)
5)
*
2)
P319
min
B0164
"disable"
"close"
"OFF"
"ON"
"enable"
"release"
Brake contr. signal
(B0255)
Oper. state
Actual speed
Internal contr. enable
Switch-on/shutdown
(term. 37)
Oper. enable
(term. 38)
Speed setpoint
*
1) Drive is braked mechanically by means of operating brake
*
2) Drive coasts to standstill, "Close holding brake" not output until n < n
min
*
3) Time for the brake to open before the motor produces a torque (P087 positive)
*
5) Time for the brake to close while the motor is still producing a torque (P088)
