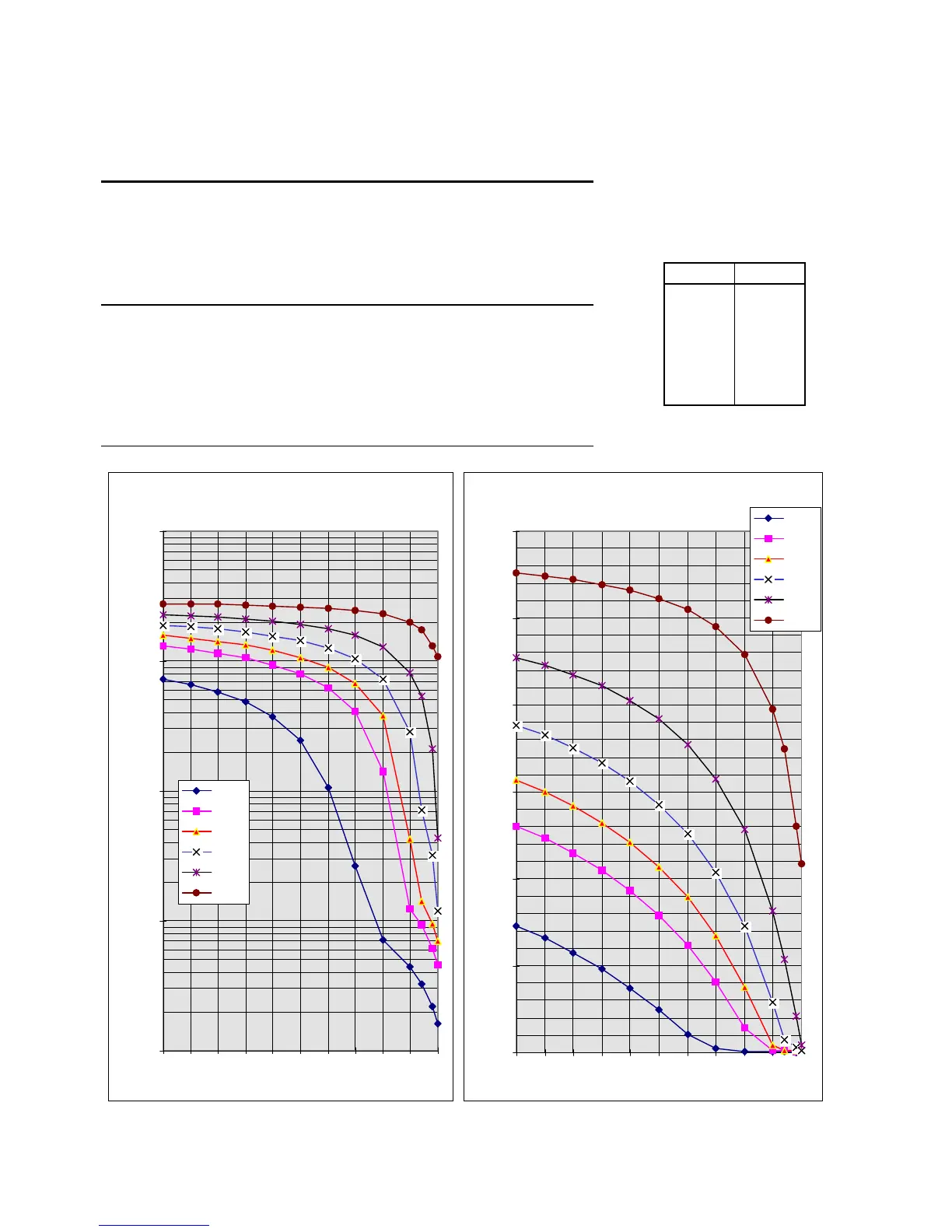

Function descriptions 05.05
9-40 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7025-6DV62. 6RA7025-6FV62 and 6RA7025-6GV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 72.980 130.400 156.740 188.460 227.300 275.940
10 65.811 123.227 149.957 182.498 222.876 274.175
20 57.585 114.814 141.930 175.350 217.469 272.034
30 48.150 104.895 132.360 166.711 210.816 269.379
40 37.259 93.130 120.832 156.101 202.443 265.933 X t
an
(s)
50 24.678 79.007 106.735 142.839 191.669 261.301 1.1 2535
60 10.683 61.827 89.233 125.906 177.370 254.787 1.2 1446
70 2.634 40.555 66.989 103.596 157.563 245.064 1.3 1016
80 0.716 14.001 37.903 72.993 128.433 228.970 1.4 761
90 0.439 1.241 4.225 28.730 81.603 197.474 1.5 587
94 0.328 0.927 1.420 7.154 53.876 174.472 1.8 283
98 0.217 0.614 0.940 3.179 20.823 130.537
100 0.162 0.457 0.700 1.191 4.296 108.570 t
ab
(s) = 2522
6RA7025-6DV62 60A/4Q 400V
6RA7025-6FV62 60A/4Q 460V
6RA7025-6GV62 60A/4Q 575V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7025-6DV62 60A/4Q 400V
6RA7025-6FV62 60A/4Q 460V
6RA7025-6GV62 60A/4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
