Function descriptions 05.05
9-56 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7090-6GV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 3.220 11.460 21.200 41.120 77.020 146.840
10 2.667 9.464 17.531 35.592 70.260 139.763
20 2.126 7.683 13.963 29.586 62.571 131.415
30 1.627 5.916 10.688 23.294 53.843 121.518
40 1.190 4.393 7.839 17.098 43.959 109.666 X t
an
(s)
50 0.820 3.030 5.441 11.577 32.922 95.330 1.1 208.0
60 0.514 1.864 3.435 7.202 21.337 77.776 1.2 91.0
70 0.276 0.992 1.817 3.943 11.248 55.976 1.3 43.6
80 0.116 0.412 0.746 1.595 4.679 29.109 1.4 20.5
90 0.032 0.107 0.194 0.388 1.042 6.405 1.5 10.5
94 0.020 0.068 0.123 0.246 0.559 2.255 1.8 2.9
98 0.008 0.029 0.052 0.104 0.235 0.905
100 0.003 0.009 0.016 0.032 0.074 0.230 t
ab
(s) = 366

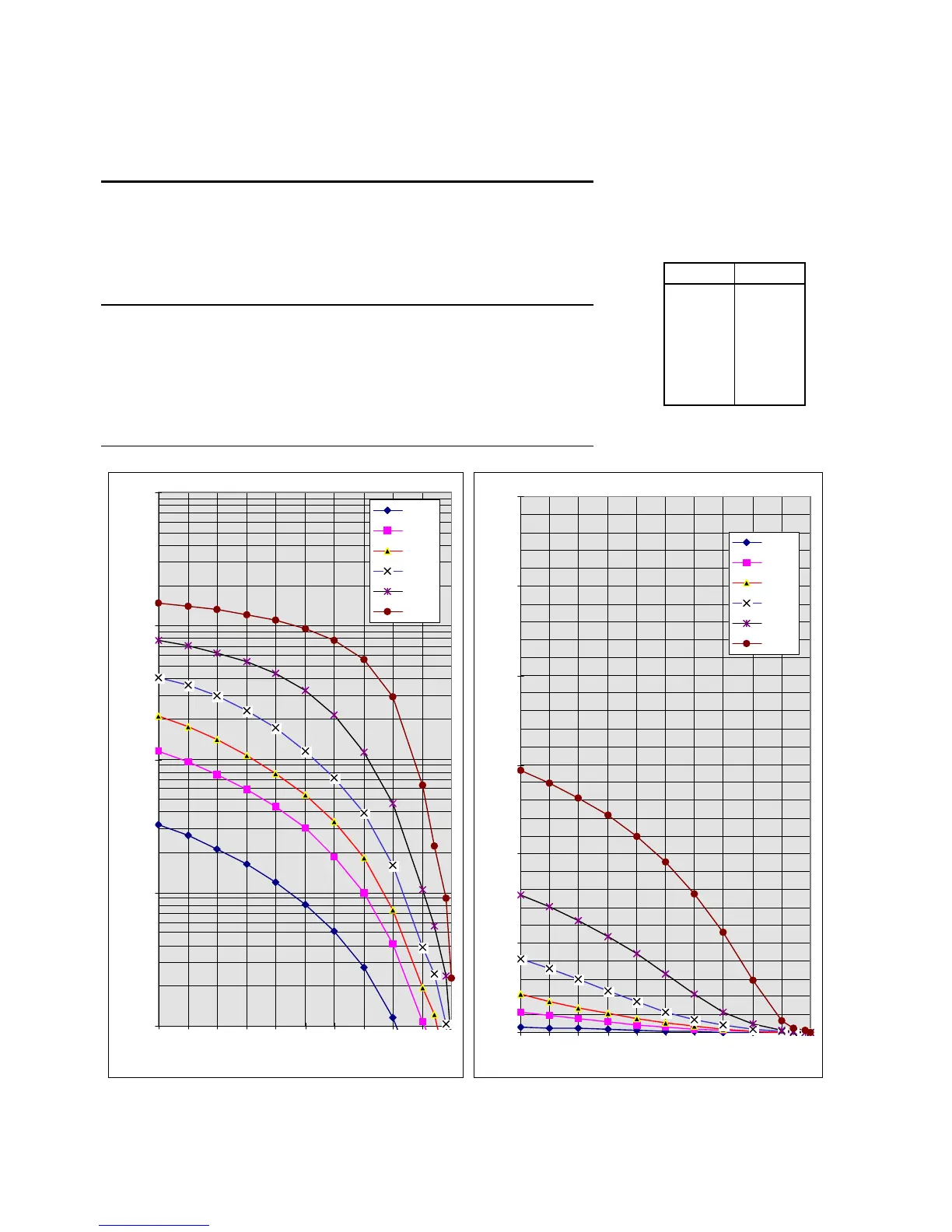

6RA7090-6GV62 1100A/4Q 575V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7090-6GV62 1100A/4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
