Siemens 6RA7086-6KS22

Function descriptions 05.05
9-58 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7091-6DV62 and 6RA7091-6FV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 4.720 16.220 28.320 49.780 86.080 154.620
10 3.939 13.465 23.936 43.976 79.248 147.678
20 3.170 10.843 19.451 37.560 71.456 139.481
30 2.433 8.442 15.098 30.588 62.575 129.727
40 1.761 6.301 11.133 23.292 52.441 118.002 X t
an
(s)
50 1.194 4.415 7.745 16.227 40.916 103.748 1.1 223
60 0.747 2.766 4.958 10.189 28.161 86.175 1.2 104
70 0.403 1.445 2.686 5.632 15.673 64.163 1.3 54
80 0.167 0.596 1.074 2.344 6.604 36.340 1.4 28
90 0.048 0.157 0.270 0.511 1.482 8.816 1.5 15
94 0.030 0.099 0.170 0.323 0.682 3.100 1.8 4
98 0.013 0.041 0.071 0.134 0.283 1.202
100 0.004 0.012 0.021 0.039 0.083 0.253 t
ab
(s) = 383
6RA7091-6DV62 1200A/4Q 400V
6RA7091-6FV62 1200A/4Q 460V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100

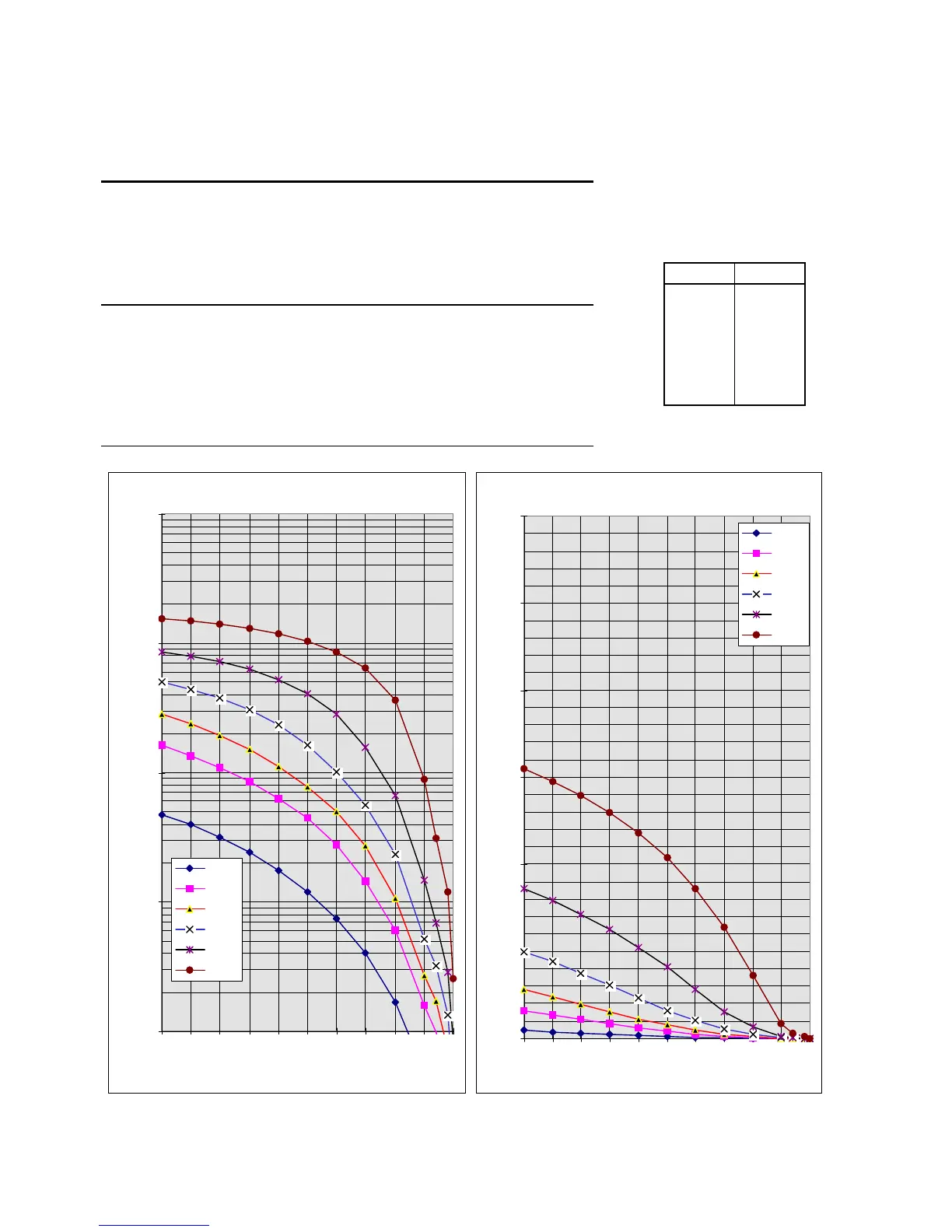

Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7091-6DV62 1200A/4Q 400V
6RA7091-6FV62 1200A/4Q 460V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
