Siemens 6RA7086-6KS22

05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-71
SIMOREG DC Master Operating Instructions
6RA7096-4MS22 and 6RA7096-4MV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 15.179 36.286 50.532 72.696 108.661 171.633
10 13.535 33.236 46.728 68.046 103.368 166.627
20 11.699 29.743 42.323 62.547 96.944 160.390
30 9.704 25.819 37.308 56.138 89.220 152.616
40 7.598 21.493 31.693 48.770 79.963 142.865 X t
an
(s)
50 5.461 16.824 25.515 40.434 68.919 130.486 1.1 259.007
60 3.463 11.939 18.869 31.177 55.862 114.490 1.2 140.205
70 1.891 7.097 11.988 21.172 40.737 93.340 1.3 85.952
80 0.837 2.942 5.468 10.948 23.938 64.882 1.4 56.076
90 0.220 0.690 1.194 2.490 7.221 28.203 1.5 38.461
94 0.084 0.259 0.436 0.858 2.325 12.736 1.8 14.839
98 0.014 0.037 0.062 0.118 0.292 1.432
100 0.002 0.003 0.004 0.006 0.011 0.043 t
ab
(s) = 464.711

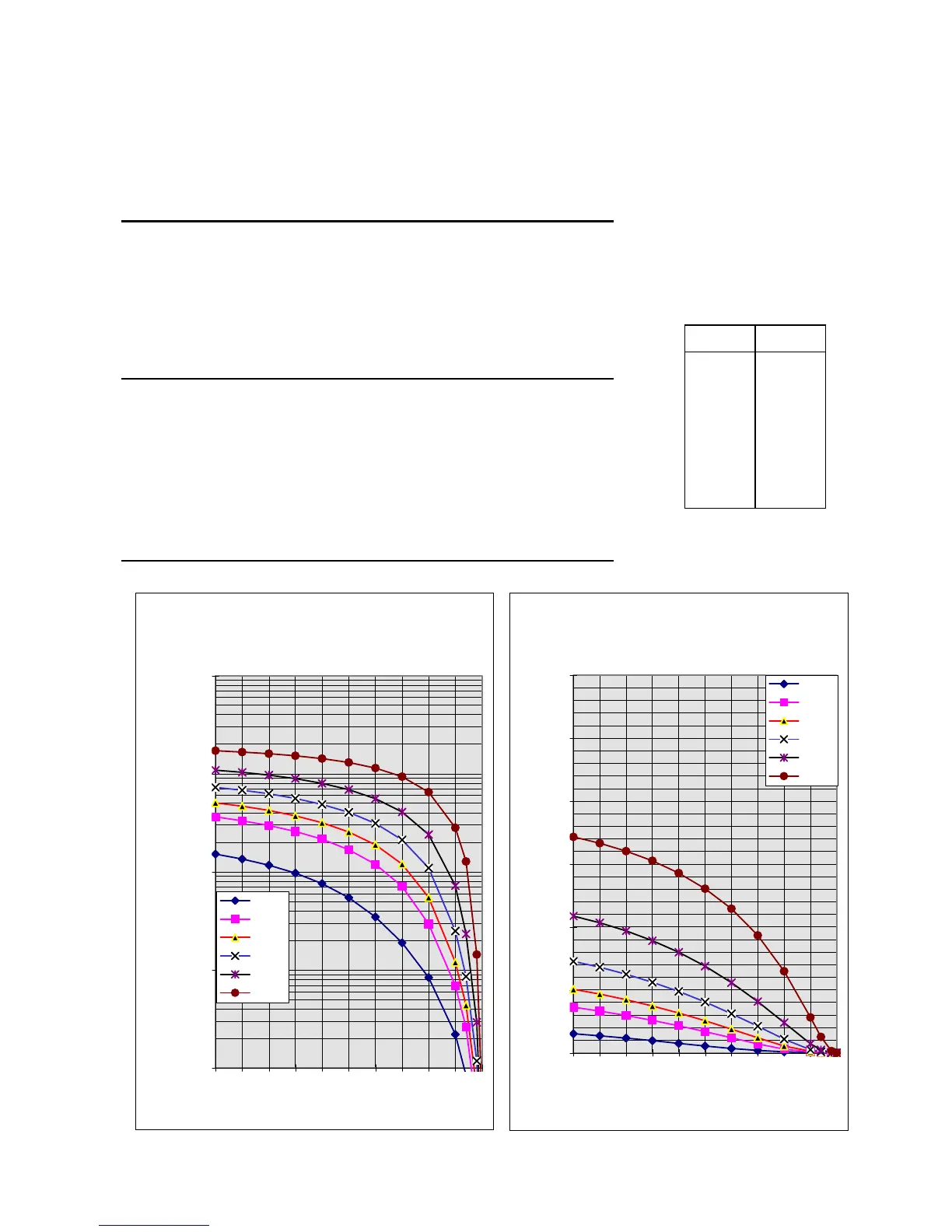

6RA7096-4MS22 2200A/ 1Q 950V
6RA7096-4MV62 2200A/ 4Q 950V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7096-4MS22 2200A/ 1Q 950V
6RA7096-4MV62 2200A/ 4Q 950V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
