Parameter list 05.05
11-96 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
PNU
Description Value range
[Unit]
Steps
No. indices
Factory
setting
Type
See
Change
(Access /
Status)
P952 Number of faults
Settings:
0 Deletes the entire fault memory (r947, r949 and r049) by
resetting to 0
Note: P952 cannot be reset while a fault is pending
>0 Display of the faults stored in the fault memory (r947, r949 and
r049)
0 to 65535
1
Ind: None
FS=0
Type: O2
P052 = 3
P051 = 40
Offline

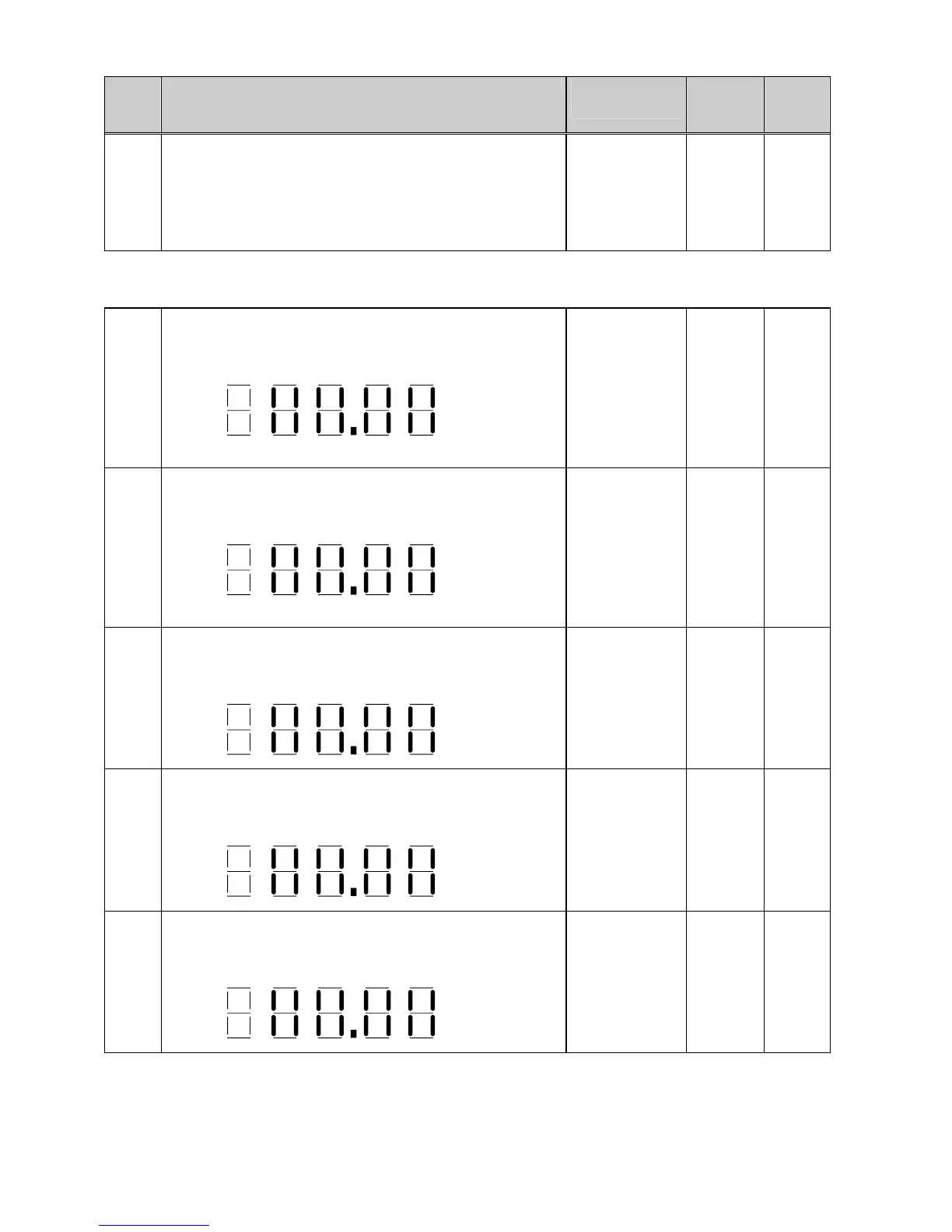

11.48 Visualization parameters: Alarms
r953 Alarm parameter 1
Display of active alarms in bit-coded form (A001 to A016).
If one of the alarms between 1 and 16 is generated, the corresponding
segment in the display lights up.
4321
5
6
7
8
910111213141516
See Section 10.2 for meaning of individual alarms.
Ind: None
Type: V2
P052 = 3
r954 Alarm parameter 2
Display of active alarms in bit-coded form (A017 to A032).
If one of the alarms between 17 and 32 is generated, the corresponding
segment in the display lights up.
20 19 18 17
21
22
23
24
2526272829303132
See Section 10.2 for meaning of individual alarms
Ind: None
Type: V2
P052 = 3
r955 Alarm parameter 3
Parameter alarms 3
If one of the alarms between 33 and 48 is generated, the corresponding
segment in the display lights up.
36 35 34 33
37
38
39
40
4142434445464748
Ind: None
Type: V2
P052 = 3
r956 Alarm parameter 4
Parameter alarms 4
If one of the alarms between 49 and 64 is generated, the corresponding
segment in the display lights up.
52 51 50 49
53
54
55
56
5758596061626364
Ind: None
Type: V2
P052 = 3
r957 Alarm parameter 5
Parameter alarms 5
If one of the alarms between 65 and 80 is generated, the corresponding
segment in the display lights up..
68 67 66 65
69
70
71
72
7374757677787980
Ind: None
Type: V2
P052 = 3
