Installation 01.04
5-2 Siemens AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions

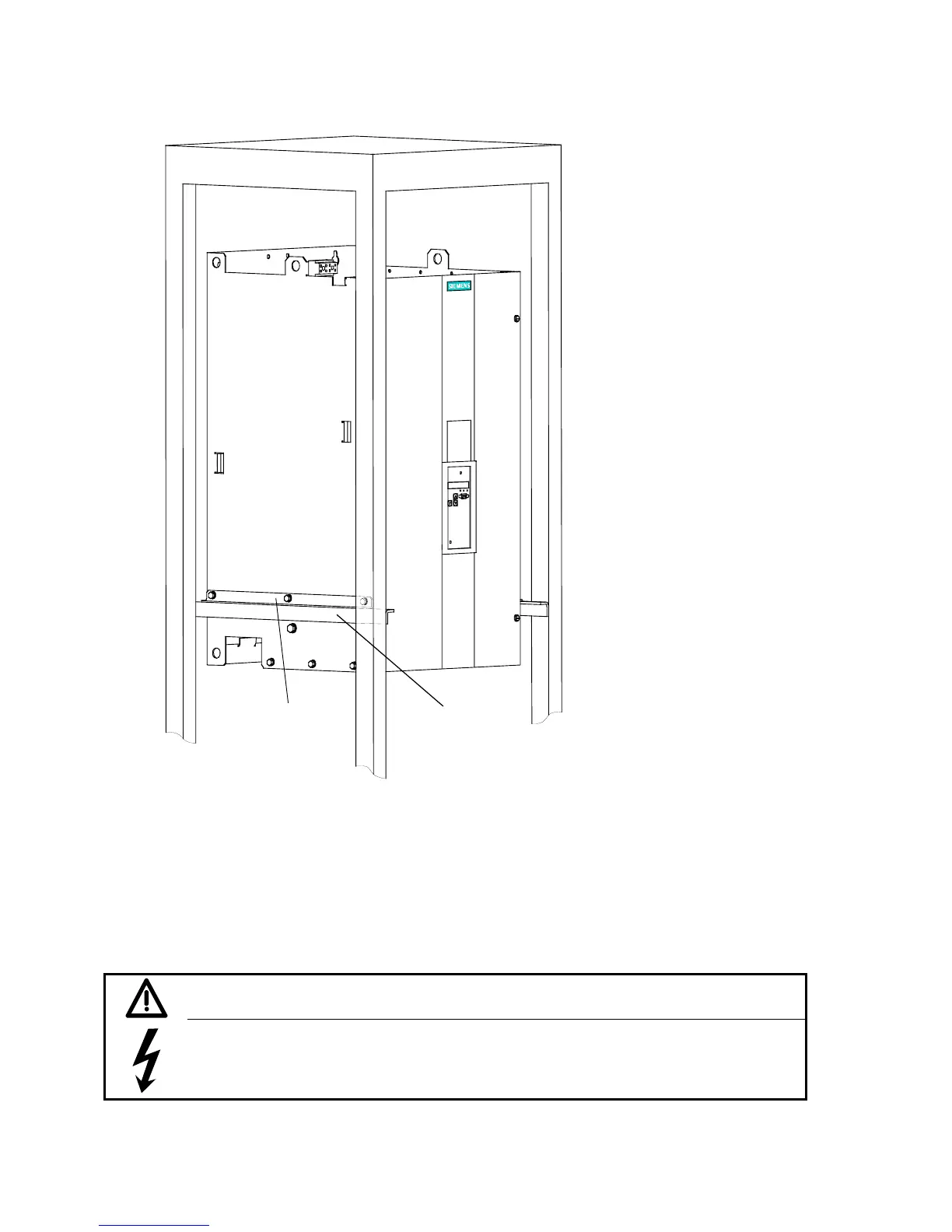

Cubicle mounting of converters with rated DC current of 1500A to 3000A
as
• These converters are supplied with 2 fixing angles
a. These can be bolted to the SIMOREG
unit by means of the supplied M6 hexagon-head screws (3 per angle) to assist cubicle
mounting.
• The unit can then be supported by 2 further angles
s (not included in scope of supply) in the
control cubicle.
• The converters must be bolted to the cubicle rear panel in 4 places.
WARNING
A clearance of at least 100 mm must be left above and below the converter in order to ensure
an unrestricted cooling air intake and outlet.
The converter may overheat if this clearance is not provided!
