Siemens 7UT51

14
Operation Using the Front Panel Controls
7UT51 v3
140 PRIM-2330C
14.1.6 Custom LED Labels
Each relay provides you space to label its LEDs based
on how you program them. Labels for the preset
annunciations are provided with the relay. The slip of
paper with the labels printed on it slides into the top of
the front panel, which is accessible with the relay
partially pulled forward out of its housing.
14.1.7 Data Communications Port
This serial data port allows you to connect a personal
computer (PC) directly to the relay. This port conforms
to the EIA RS-232 standard. This feature is typically
used in conjunction with WinDIGSI software to view
event logs and target logs, to monitor measured
values, to program the settings, and to analyze
captured waveforms.
14.2 Viewing a Setting
There are two ways to select a specific memory
Address to view or change its contents. One is to go
directly to an Address by entering its number as
described below. The other is to scroll through the
addresses until you reach the one you want.
14.2.1 Entering an
Address Directly
If you know the Address you want to view or change,
the fastest way to get to it is by direct addressing. Do
the following:
1. Press
Direct Addr
. key, the LCD will prompt you
to enter an address:
2. Enter the four-digit Address number.
3. Press
Enter
. The Address number, description,
and the present setting will appear on the LCD
display.

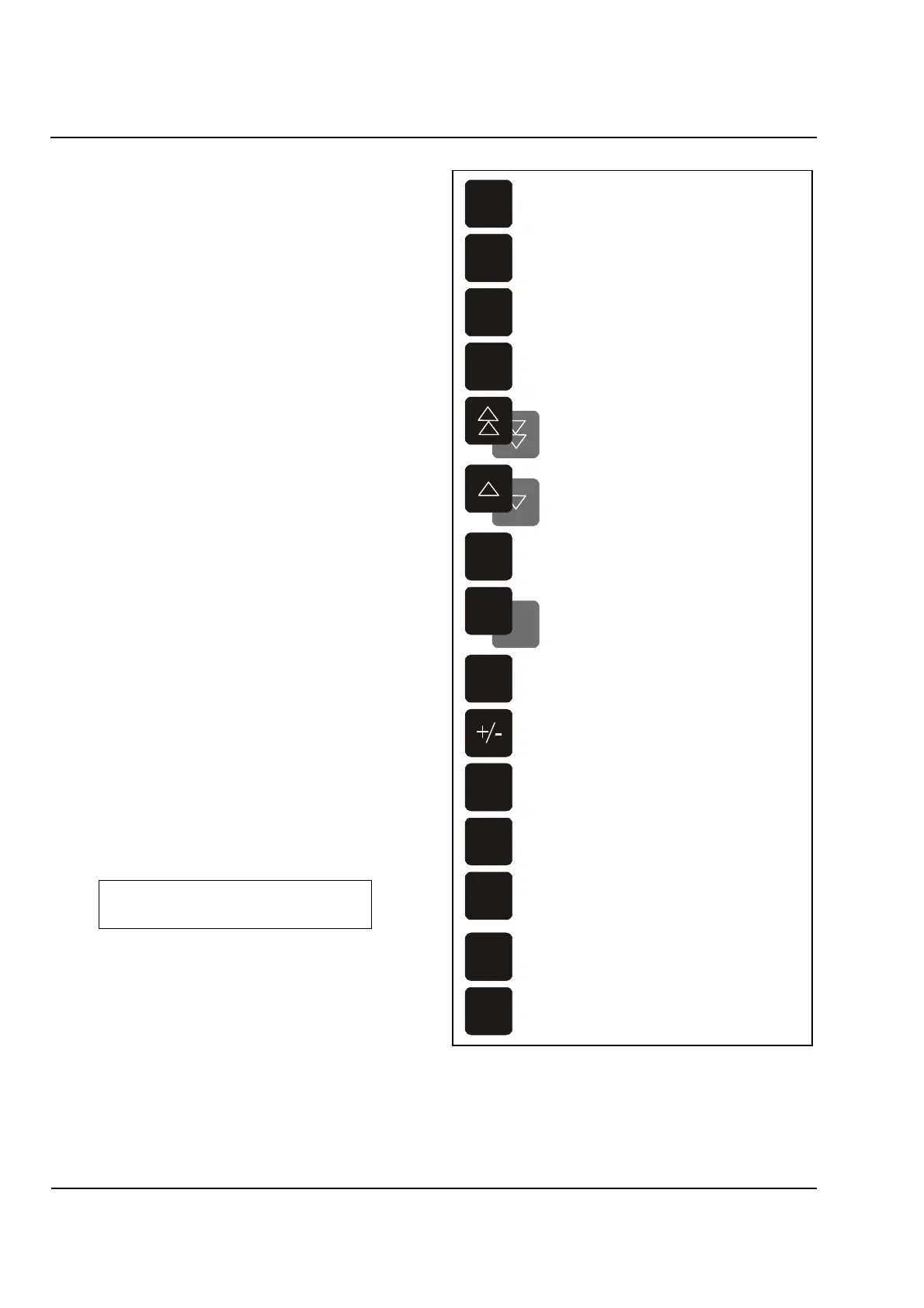

Figure 14.3
Keypad Key Descriptions
DIRECT ADDRESS
Password
Accesses the relay passw ord function.
Direct Address
Directly accesses an address — enter the address
number after pressing this key.
Event
Directly accesses address 5000 (Annunciations).
Targ et R eset
Tests and resets the LEDs.
Double Arrow
Navigation keys scroll through address blocks.
Single Arrow
Navigation keys scroll through addresses or
through a list of logical functions.
Function
Used in com bination with num eric ke ys to select
certain functions.
NumericKeys(0-9)
Enters numeric data (addresses, values, etc.).
Decimal Point
Indicates a decimal point in num eric data.
Plus-Minus
Toggles between positive and negative values.
Backspace
Deletes one character to the left.
Infinity
Enters the setting va lue of infinity.
Enter
(1) Confirms the address or value that has been
keyed in or selected, or (2) clears error or
operational messages from the LCD.
Yes
(1) Accepts the displayed setting, or
(2) responds "Yes" to the displayed question.
No
(1) Rejects the displayed setting, or
(2) responds "No" to the displayed question.
Pass
word
Direct
Addr
Target
Reset
Back
Space
Event
F
∞
Enter
Yes
No
.
9
0
