Siemens 7UT51

To Next Page

To Previous Page

Installation and Servicing

7UT51 v3

184 PRIM-2330C

17.5.1 Connection Diagrams

Figure 17.9

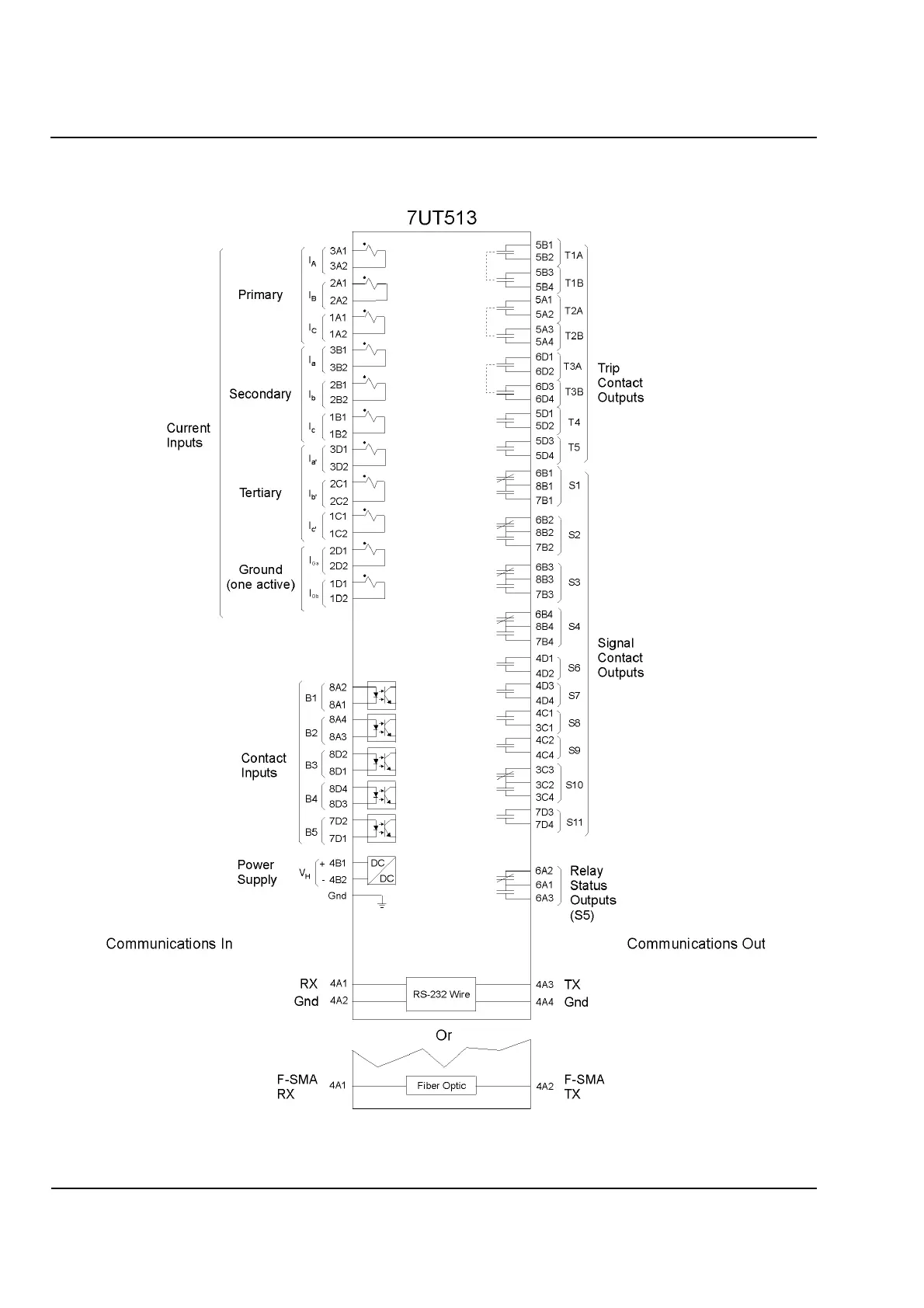

Connection Diagram for 7UT513
