Installation and Servicing

PRIM-2330C 183

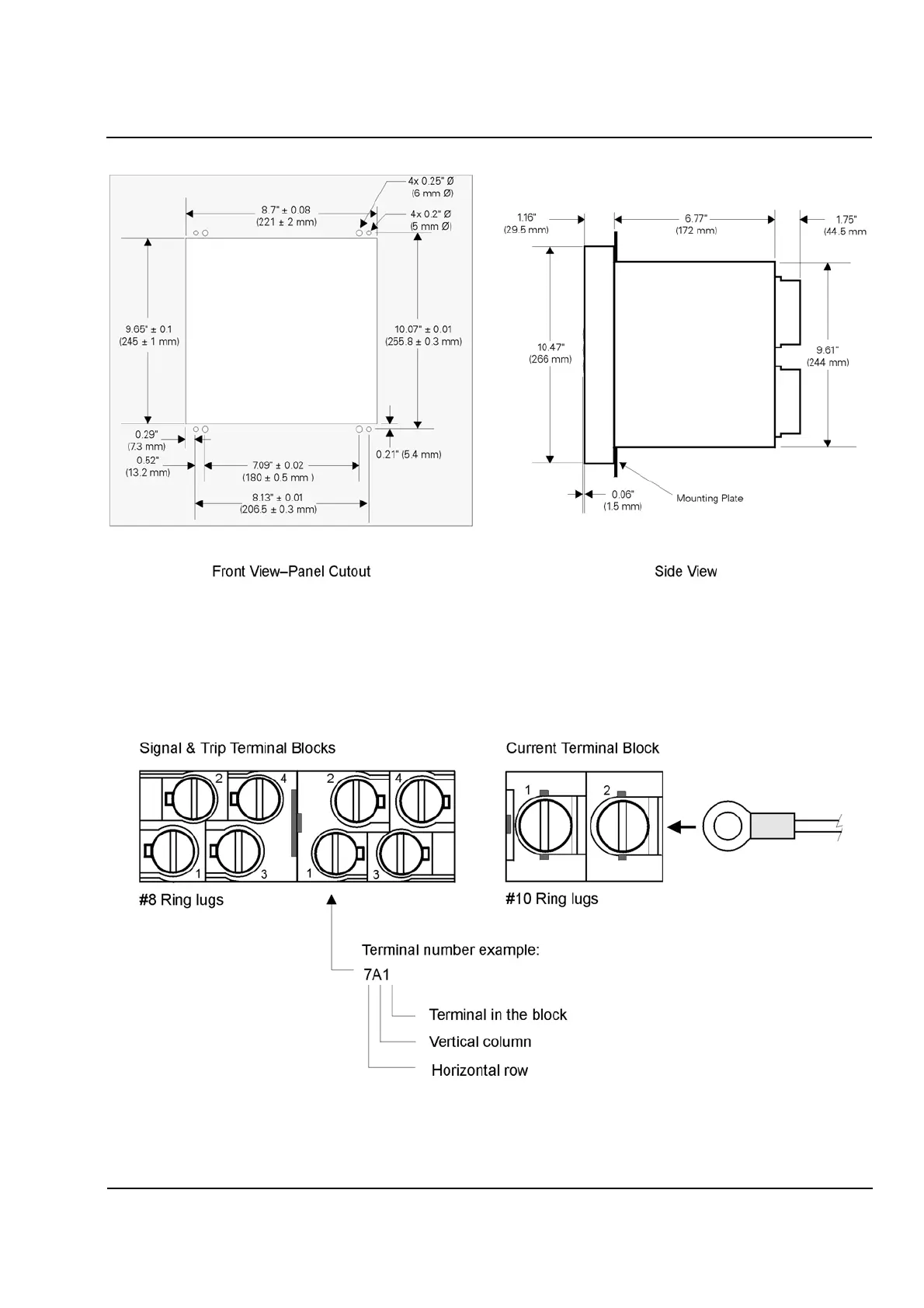

Figure 17.7

Dimensions of Case and Panel Cutout for a 7UT513 Relay

17.5 Wiring

Figure 17.8

Screw Terminals & Ring Lugs Terminal Block Detail
