Siemens 7UT51

To Next Page

To Previous Page

Installation and Servicing

7UT51 v3

190 PRIM-2330C

Figure 17.15

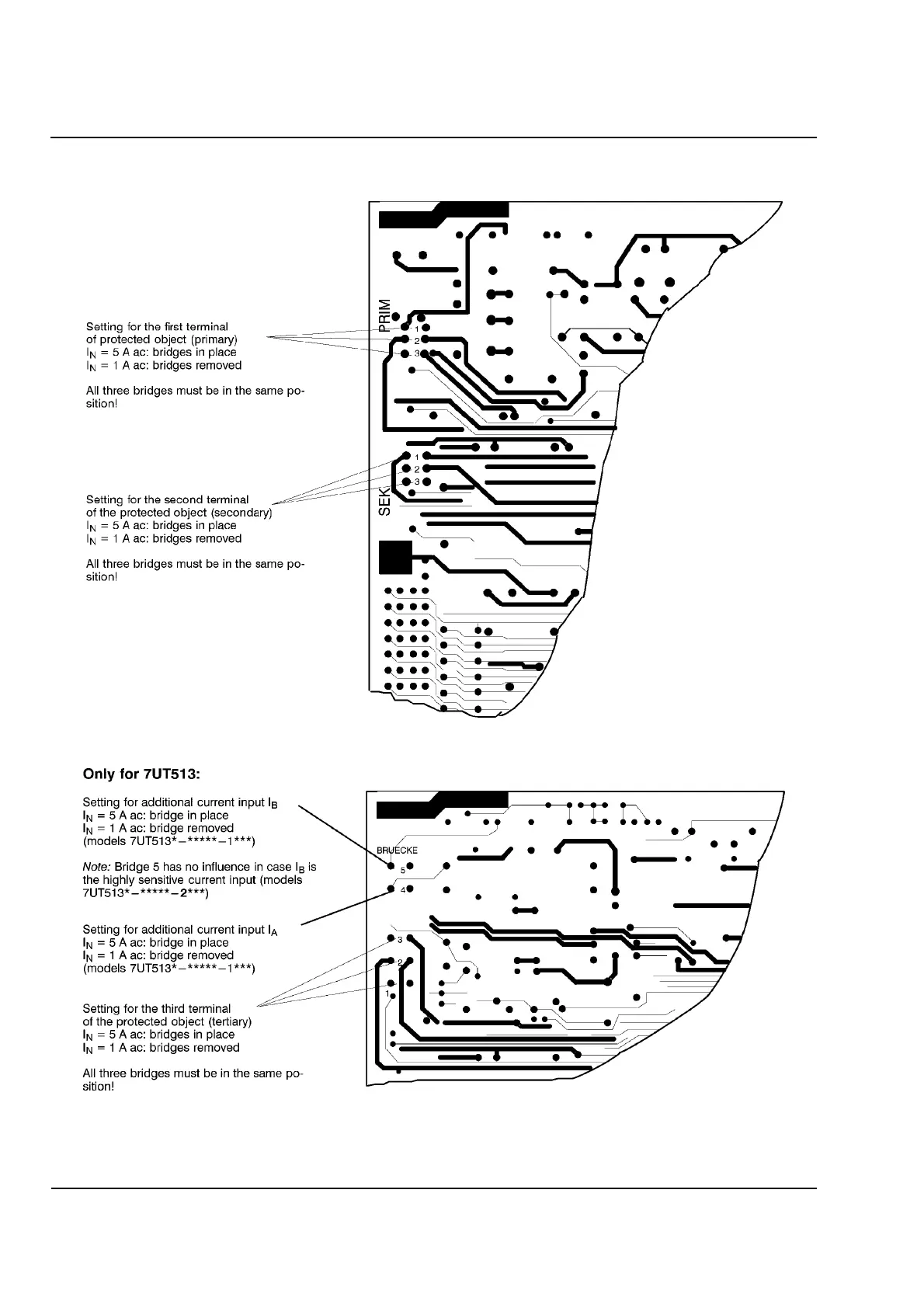

Locations of Jumpers for Setting Rated Nominal Current of Current Inputs (Production Series /JH or Earlier).

Main Module (7UT512 and 7UT513):

Auxiliary Module:
