7UT51 v3
Installation and Servicing
17
PRIM-2330C 193

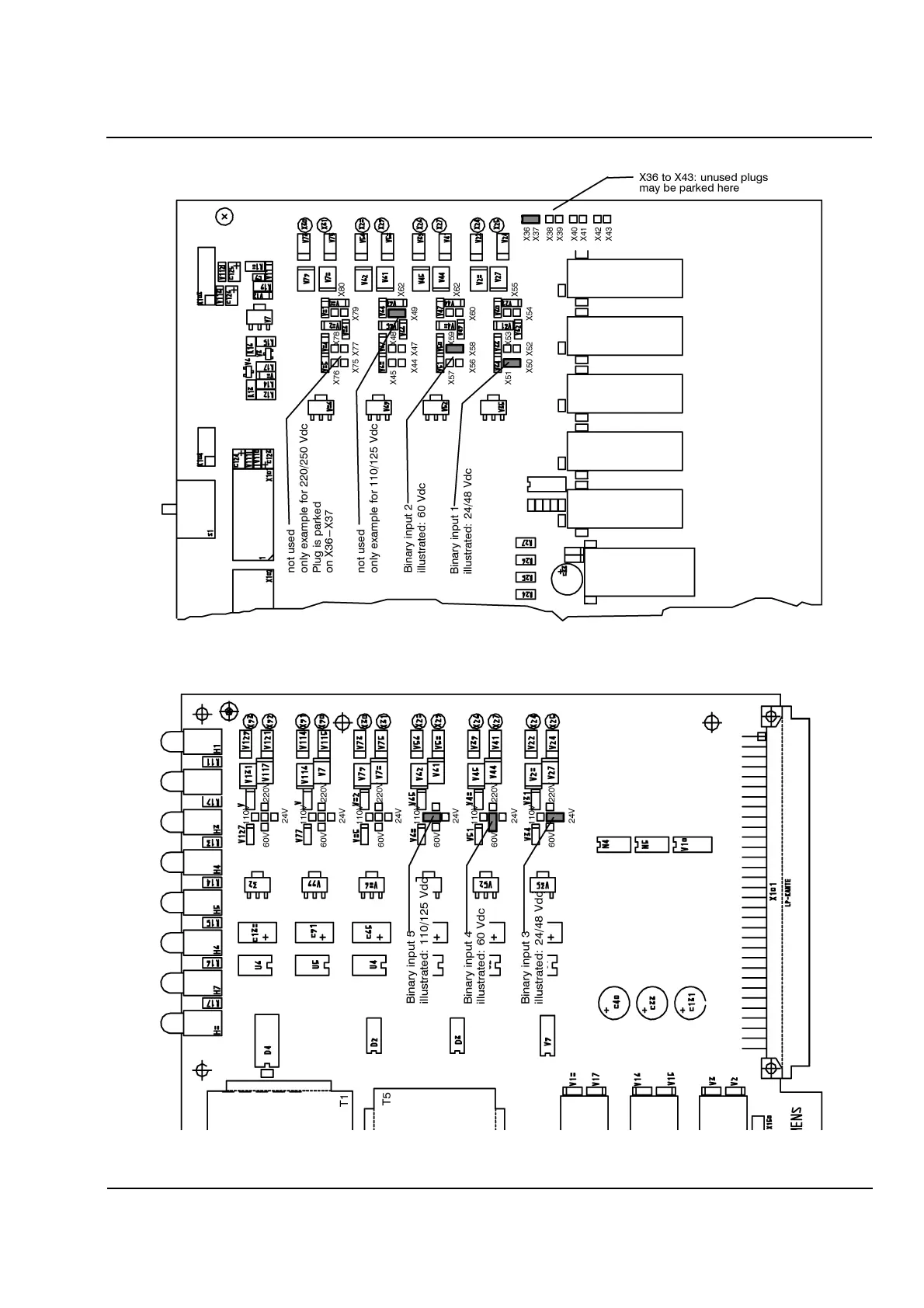

Figure 17.18
Jumper Locations for Setting Rated Voltage of Binary
-
Signal Inputs 1 and 2 (Production Series /KK or Later)
Figure 17.19
Jumper Locations for Setting Rated Voltage of Binary
-
Signal Inputs 3, 4, and 5 (Production Series /KK or Later)
Component side of the left pcb
