ACCESS 9340/9360 Meter Hardware
ACCESS 9340/9360 Meter With Integrated Display

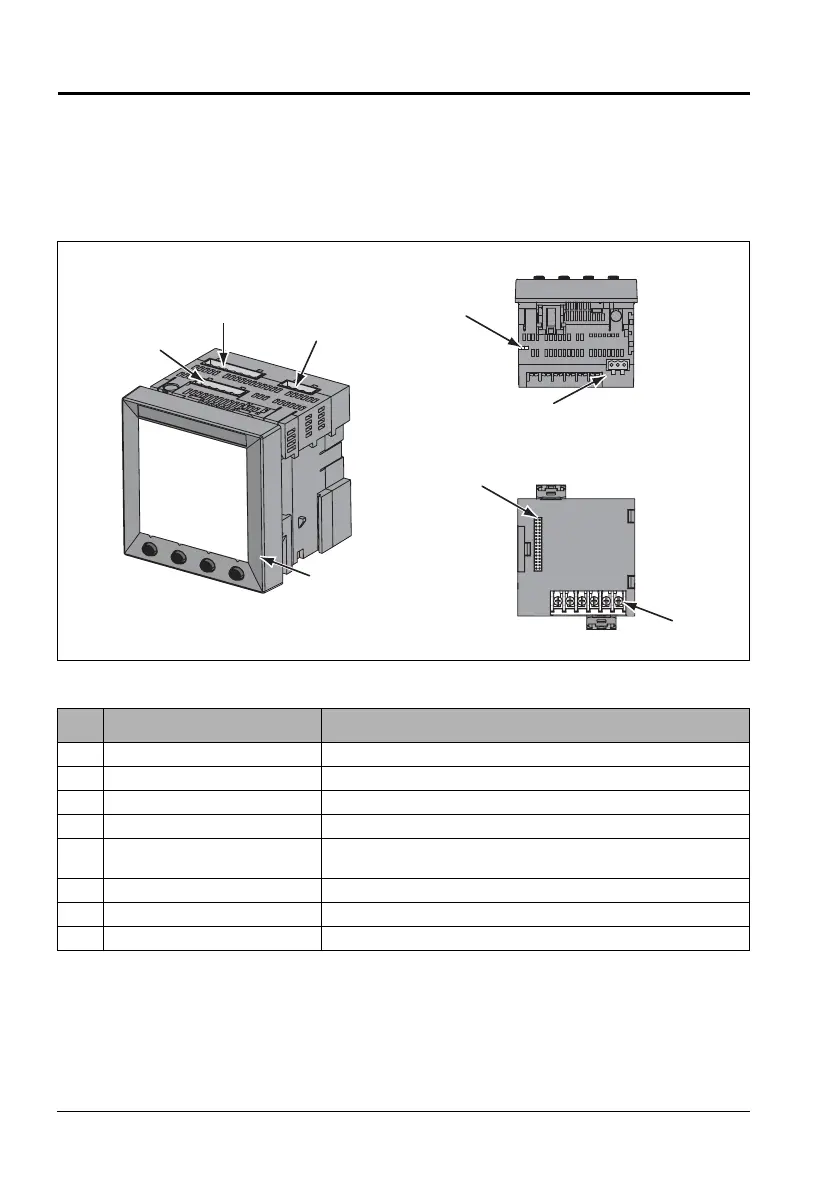

Figure 1–1: Parts of the ACCESS 9340/9360 Meter with integrated display
1
2
3
5
6
7
4
8
Bottom View
Back View
PLSD110042
Table 1–2: Parts of the ACCESS 9340/9360 Meter With Integrated Display
No. Part Description
1 Control power supply connector Connection for control power to the meter.
2 Voltage inputs Voltage metering connections.
3 I/O connector KY pulse output/digital input connections
4 Heartbeat LED A green flashing LED indicates the meter is ON.
5 RS-485 port (COM1)
The RS-485 port is used for communications with a monitoring and
control system. This port can be daisy-chained to multiple devices.
6 Option module connector Used to connect an option module to the meter.
7 Current inputs Current metering connections.
8 Integrated display Visual interface to configure and operate the meter.
