Viewing Alarm Activity and History
Alarm Conditions and Alarm Numbers
This section lists the meter’s predefined alarm conditions. For each
alarm condition, the following information is provided.
• Alarm No.—a position number indicating where an alarm falls in
the list.
• Alarm Description—a brief description of the alarm condition
• Abbreviated Display Name—an abbreviated name that
describes the alarm condition, but is limited to 15 characters that
fit in the window of the meter’s display.
• Test Register—the register number that contains the value
(where applicable) that is used as the basis for a comparison to
alarm pickup and dropout settings.
• Units—the unit that applies to the pickup and dropout settings.
• Scale Group—the scale group that applies to the test register’s
metering value (A–F). For a description of scale groups, see
“Scale Factors” on page 79.
• Alarm Type—a reference to a definition that provides details on
the operation and configuration of the alarm. For a description of
advanced alarm types, refer to Table 7–3 on page 92.
Table 7–2 on page 91 lists the preconfigured alarms by alarm
number.

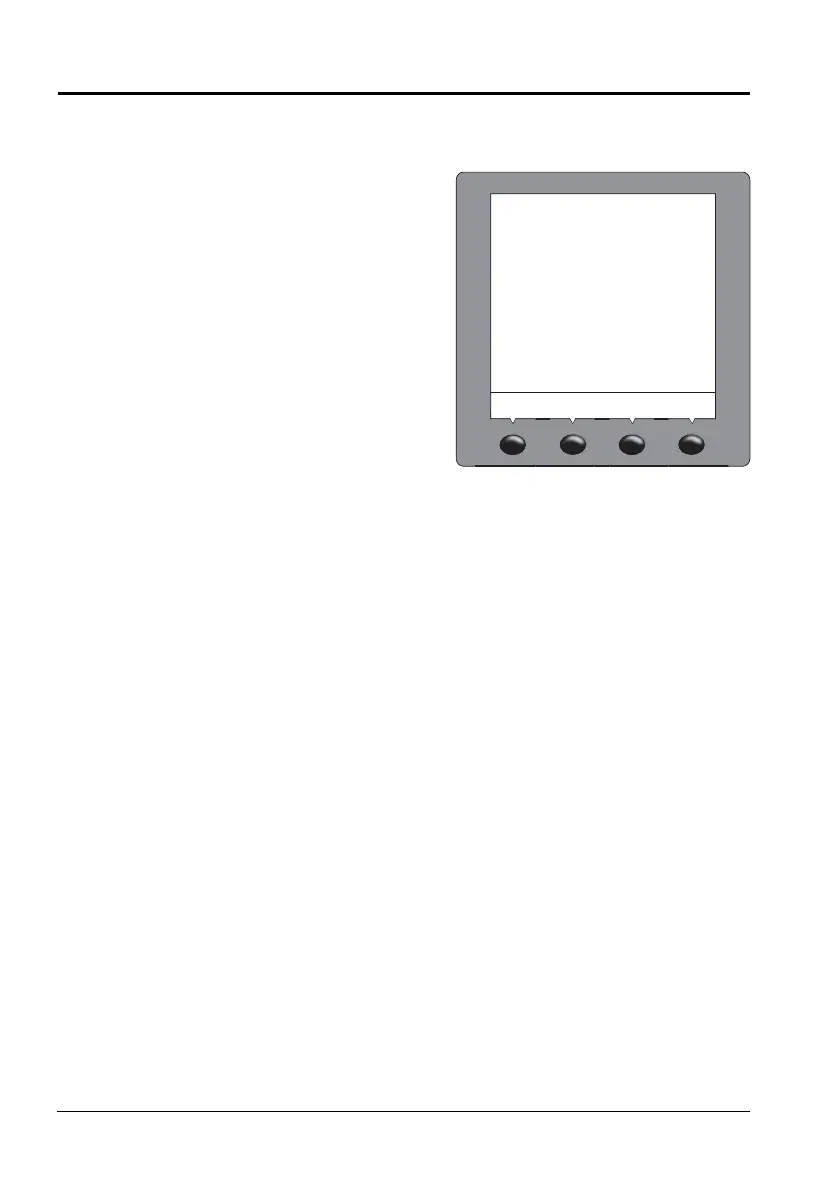

1. Press
###: until ALARM is visible.
2. Press ALARM.
3. View the active alarm listed on the meter
display. If there are no active alarms, the
screen reads, “NO ACTIVE ALARMS.”
4. If there are active alarms, press
<--or --
>
to view a different alarm.
5. Press HIST.
6. Press <-- or --> to view a different
alarm’s history.
7. Press
1; to return to the SUMMARY
screen.
